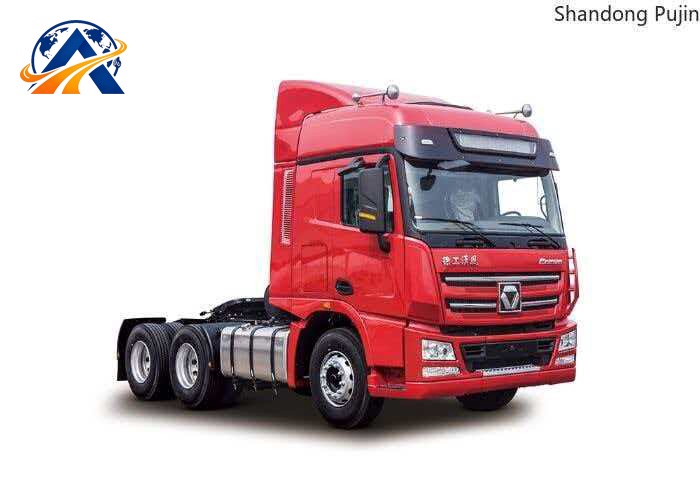

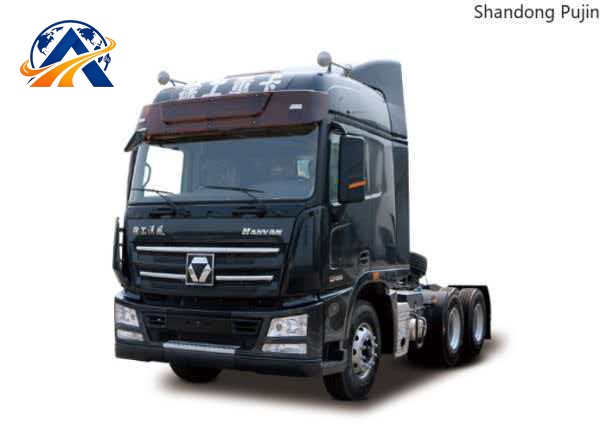

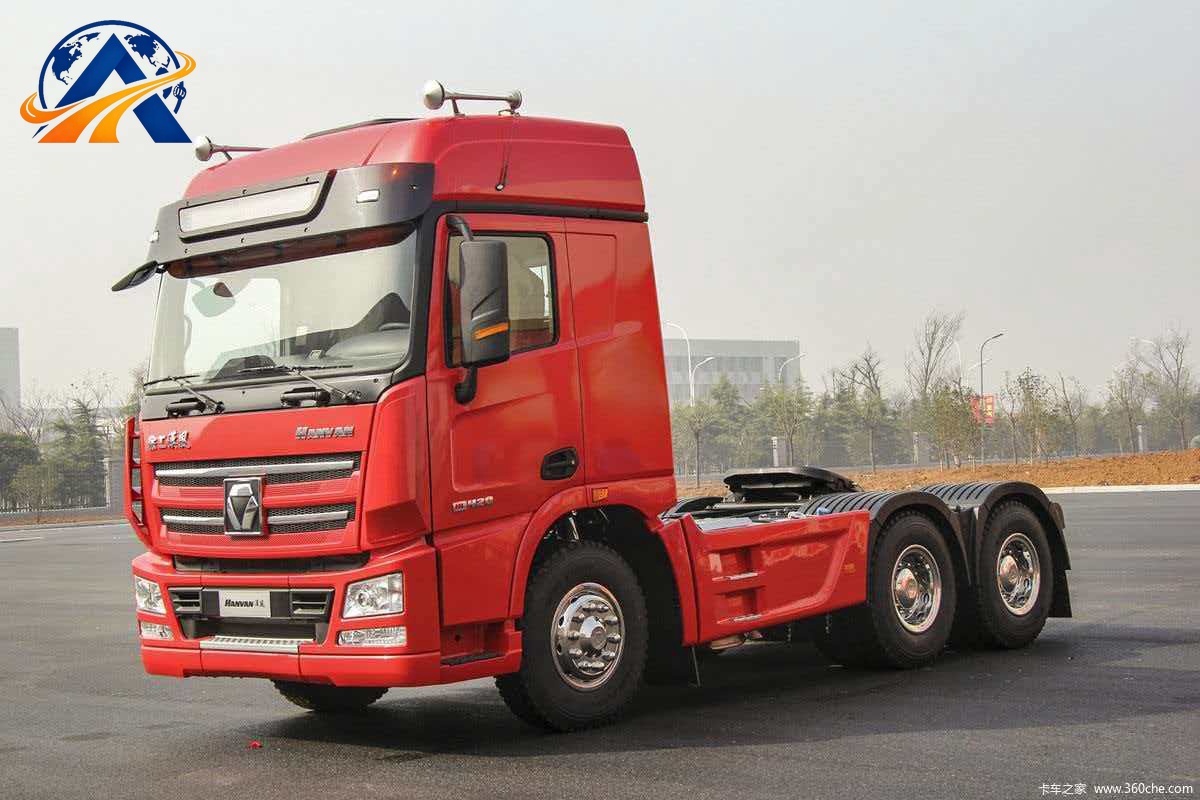

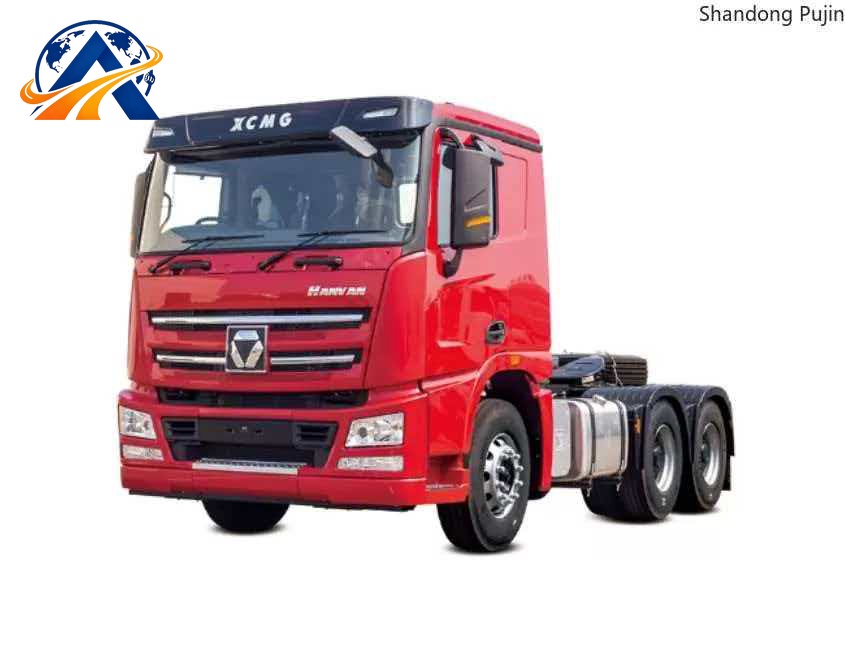

XCMG HANVAN G7 6×4 Tractor Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 6820mm × Width 2500mm × Height 3910mm, Curb Weight 8870kg (only standard chassis configuration, excluding all optional accessories and rear trailers)

I. Standard Configuration
Powertrain
Equipped with Weichai WP10H/WP13 inline six-cylinder turbocharged intercooled diesel engine, displacement 9.726L/12.54L, rated net power 276kW/375HP ~ 430kW/580HP, peak torque 1800–2400N·m, 4-valve electronic common rail injection + SCR aftertreatment, Euro II/Euro III/Euro V/Euro VI emission standards optional, suitable for long-distance container, bulk cargo and hazardous chemical standard-load logistics in Central Asia, Southeast Asia and Africa. Matched with Fast C12JSDQXL240TA 12-speed aluminum housing manual transmission with standard external QH50 power take-off. Recirculating ball hydraulic power steering, front & rear drum air brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Hand HD457 11.5-ton single reduction tandem rear axles with standard final drive ratio 3.7/4.11 and standard inter-axle & wheel double differential lock; braking system complies with safety standards for export heavy trucks.

Hydraulic & Auxiliary System
Hydraulic power steering system with 12L steering oil tank; dual high-position aluminum air reservoirs with automatic drain valves. Standard hydraulic pipeline reservation for fifth wheel lifting, three-stage oil-water separation air filter with real-time air pressure audible & visual alarm. Standard 90# JOST fifth wheel with 40-ton rated load capacity, single 700L large-capacity aluminum alloy fuel tank.

Chassis & Cab Configuration
G7LH four-point full-floating air suspension high-roof short-double all-steel cab with 53° electric forward tilting structure. Standard automatic constant temperature air conditioner, air-suspension fabric driver seat, wide double sleeper, combined LCD instrument, basic driving recorder, electrically heated rearview mirrors and 220V vehicle inverter power supply. Full 24V DC intelligent electrical system with audible & visual real-time alarm for coolant temperature, oil pressure, exhaust temperature, air pressure and transmission oil temperature. Lightweight 280×80×8mm high-strength frame, 6.5-ton drum steer front axle, dual 11.5-ton Hand single reduction rear axles. Lightweight progressive few-leaf spring suspension (2 leafs front / 3 leafs rear), factory-fitted 12R22.5 18PR vacuum radial tires (11 units including spare tire), factory dustproof pipeline for high temperature and anti-freeze pipeline for frigid regions to adapt multi-region export conditions.

Service Capacities
Engine oil: 24L
Transmission gear oil: 14L
Rear axle gear oil: 12L per axle, total 24L for dual axles
Steering hydraulic oil: 12L
Coolant: 33L
Fuel tank capacity: 700L
Urea tank capacity: 45L (Euro V / Euro VI models, none for Euro II/Euro III)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)
Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Ventilated & heated leather air-suspension driver seat: +10kg weight, unchanged overall dimensions
Central control touch screen + 360° panoramic 4-way monitoring camera: +7kg weight, unchanged overall dimensions
Independent vehicle refrigerator + high-fidelity Bluetooth audio: +9kg weight, unchanged overall dimensions
Steel anti-collision cab window guard: +23kg weight, width +40mm
Heightened streamlined full-surround wind deflector: +30kg weight, overall height +160mm
ACC adaptive cruise + AEBS active brake safety kit: +8kg weight, unchanged overall dimensions

Travel & Drivetrain Chassis Options
C12AMT 12-speed automatic transmission: +42kg weight, unchanged dimensions
Hydraulic retarder assembly: +68kg weight, unchanged dimensions
Reinforced heavy-duty balance suspension assembly: total weight +88kg, unchanged dimensions
Complete low-temperature preheating cooling kit for -40℃ frigid regions: +16kg weight, unchanged dimensions
Widened deep tread mine heavy-duty tires: overall width +60mm, total weight +108kg
LNG Weichai WP13NG gas power assembly replace diesel engine: +272kg weight, width +48mm
Upgrade to 5.5-ton full disc steer front axle: +36kg weight, unchanged dimensions

Auxiliary Working Equipment Options
Extended heavy-duty fifth wheel base: +33kg weight, overall length +100mm
Widened 95# heavy-duty JOST fifth wheel (replacement for standard 90# fifth wheel): overall width +50mm, +40kg weight
800+200L dual aluminum large-capacity fuel tank assembly: +66kg weight, width +40mm
Full set of thickened fully wrapped wear-resistant chassis guards: +51kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +4kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis + GPS fleet management terminal module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED auxiliary work light group: +12kg weight, overall height +50mm
Reinforced thickened main frame assembly: +138kg weight, overall length +60mm
Full side skirts + front & rear steel anti-collision protective frame: +45mm width on each side (total width +90mm), +165kg weight
Desert enlarged oil-bath heavy-duty air filter assembly: +7kg weight, overall height +38mm
