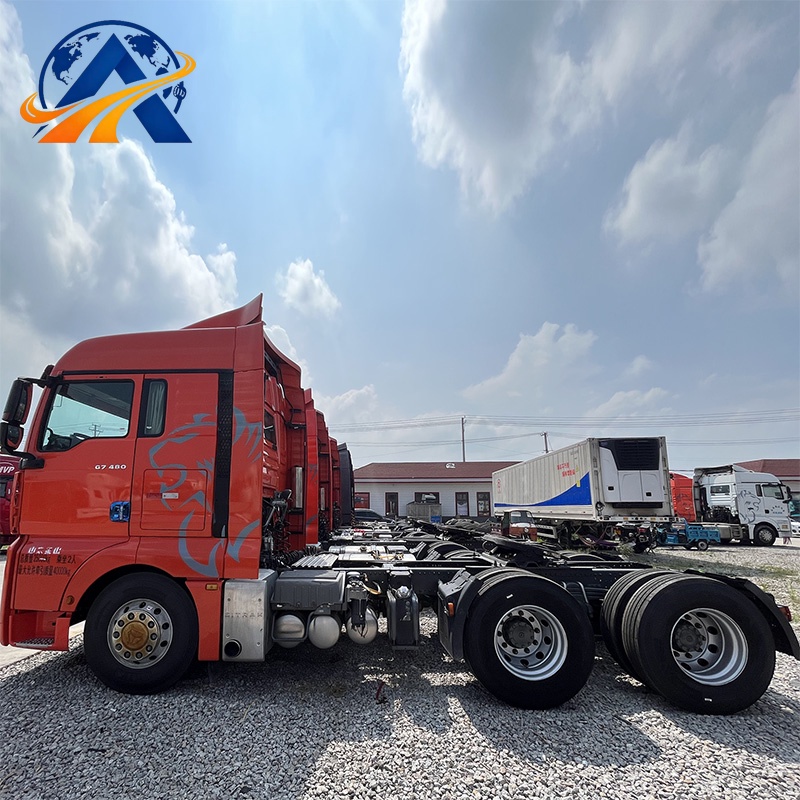

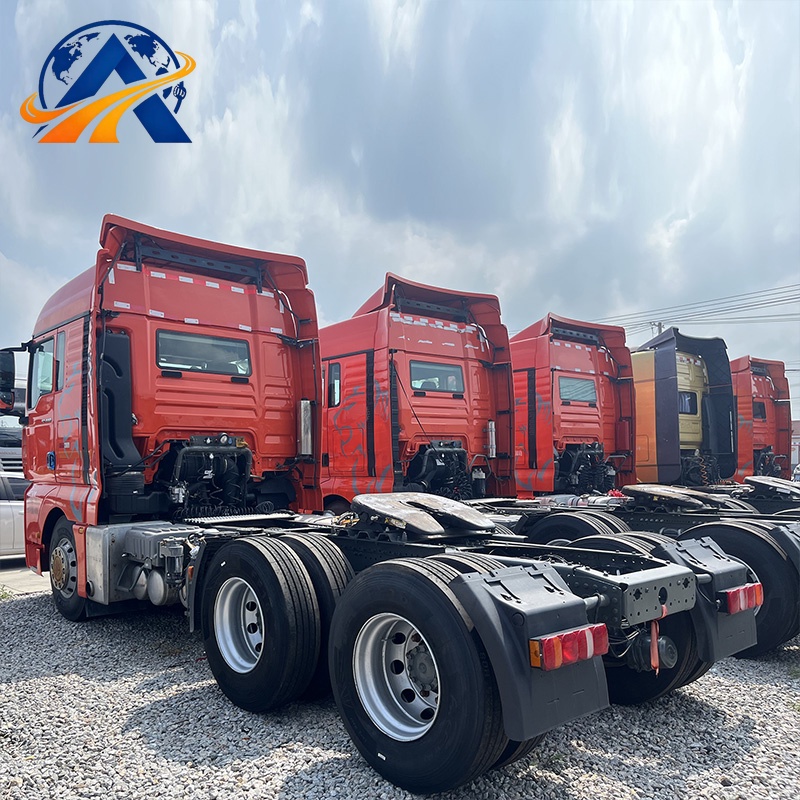

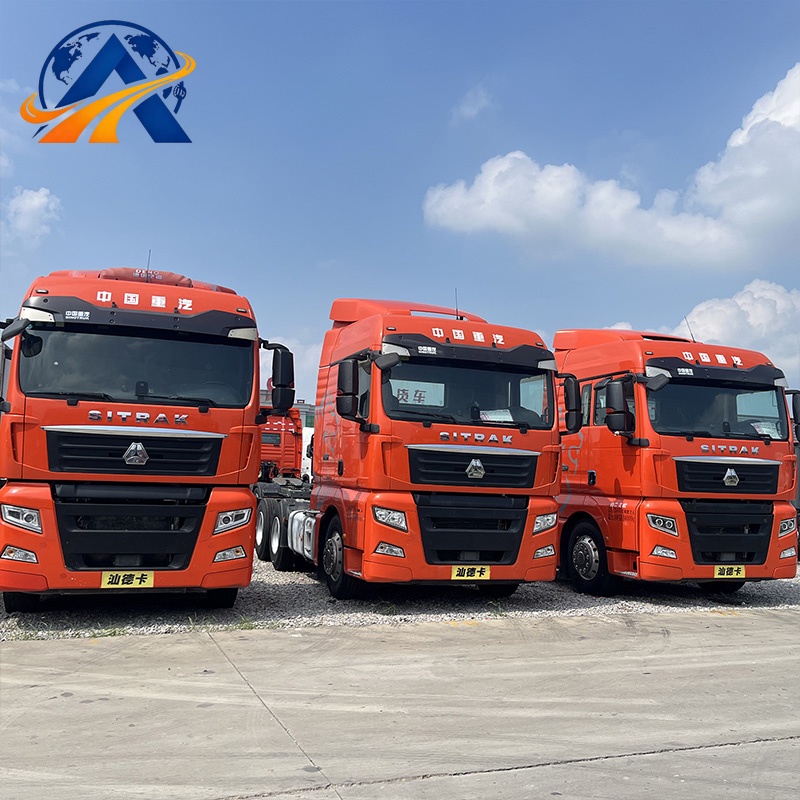

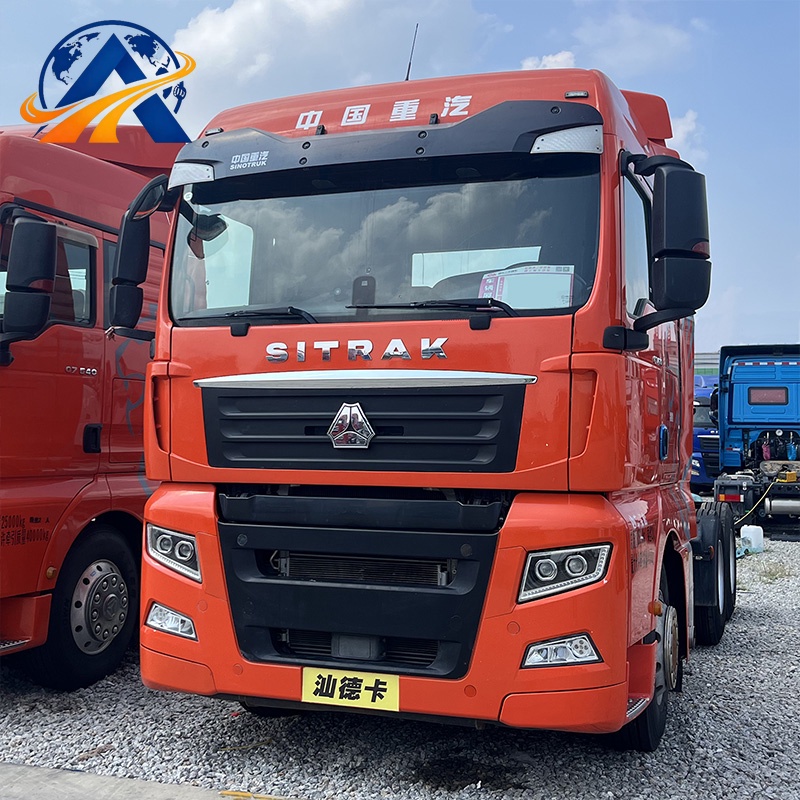

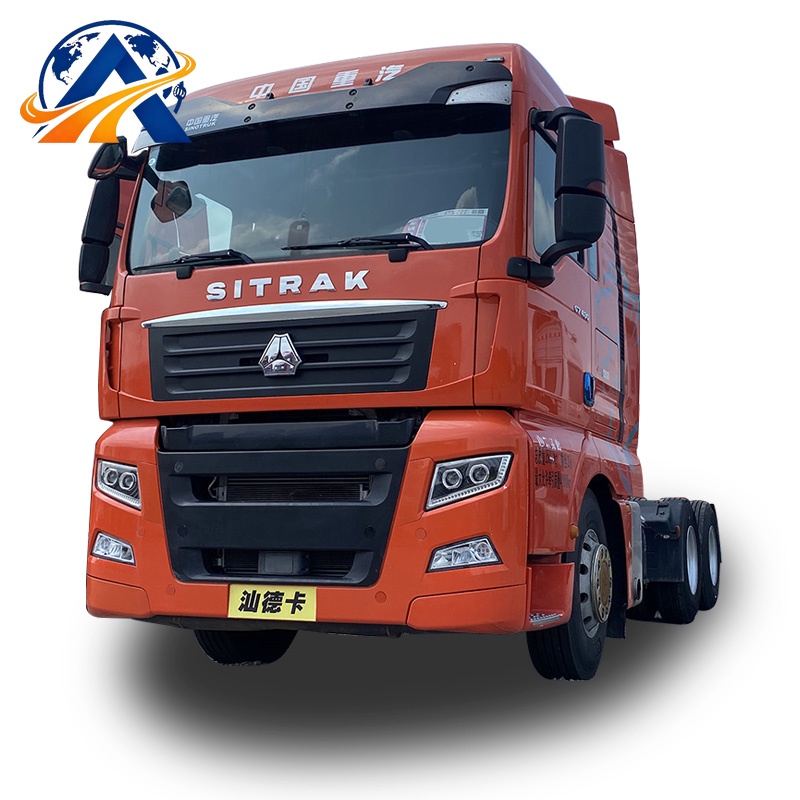

SITRAK C7H 6×4 Tractor Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 6950mm × Width 2550mm × Height 3700mm, Curb Weight 8200kg (standard chassis only)
I. Standard Configuration
Powertrain
MAN MC13 engine, 397kW/540HP, Euro V/Euro VI dual optional emission standard. Matched with ZF 16-speed AMT automatic transmission, standard heavy-duty PTO. Hydraulic power steering, full air disc brake + ABS full air control system. 16-ton tandem rear axles with differential lock, full vehicle air suspension as standard.
Hydraulic & Auxiliary System
12L steering oil tank, dual auto-drain air tanks, three-stage high-efficiency air filter. Dual large 600L fuel tanks, reserved hydraulic pipeline for 90# standard fifth wheel with 40-ton bearing load. Long-life filter components for whole vehicle.
Chassis & Cab Configuration
Flat-floor high-roof double-berth air suspension all-steel hydraulic tilting cab, standard air shock absorption leather seat, constant temperature split AC, multi-function large LCD instrument, driving recorder, electrically heated rearview mirror. 24V full intelligent monitoring electrical system. Lightweight high-strength frame, front and rear air suspension, 315/80R22.5 vacuum tires. Maximum towing weight 80 tons, minimum turning radius 7000mm, max design speed 98km/h.

Service Capacities
Engine oil: 26L
ZF transmission gear oil: 16L
Dual rear axle gear oil total: 24L
Steering hydraulic oil: 12L
Coolant: 36L
Dual fuel tanks total 1200L
Urea tank capacity: 45L

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)

Cab Interior Options
Ventilated heating luxury air suspension seat: +15kg
Central control large screen + 360 four-way monitoring: +9kg
On-board refrigerator + high-fidelity Bluetooth audio: +11kg
Heightened large wind deflector: +32kg, height +180mm
ZF hydraulic retarder complete assembly: +70kg
Mine reinforced heavy-duty balance suspension: +95kg
Mine wide anti-puncture tires: width +60mm, +120kg
Ultra-low temperature -40℃ preheating kit: +12kg

Auxiliary Working Equipment Options
95# heavy-duty widened fifth wheel: width +50mm, +45kg
Side-mounted 800L auxiliary fuel tank: +72kg, width +40mm
Full chassis wear-resistant thick guard plate: +60kg

Safety & Special Site Options
Remote fault diagnosis & positioning system: +7kg
Full vehicle ultra-bright LED work light set: +15kg, height +60mm
Reinforced thickened heavy-duty main frame: +150kg, length +70mm
Mine long downhill special reinforced brake kit: +30kg
