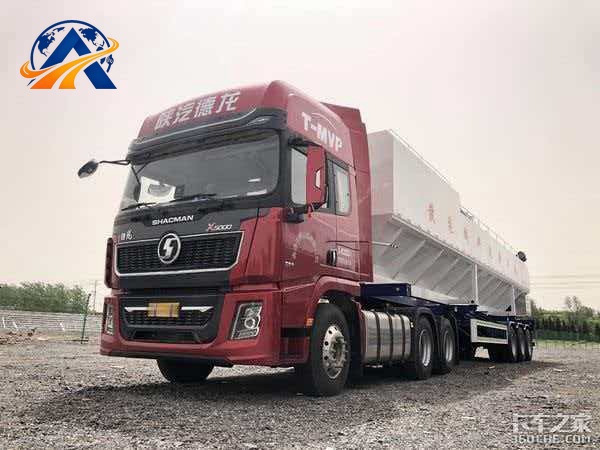

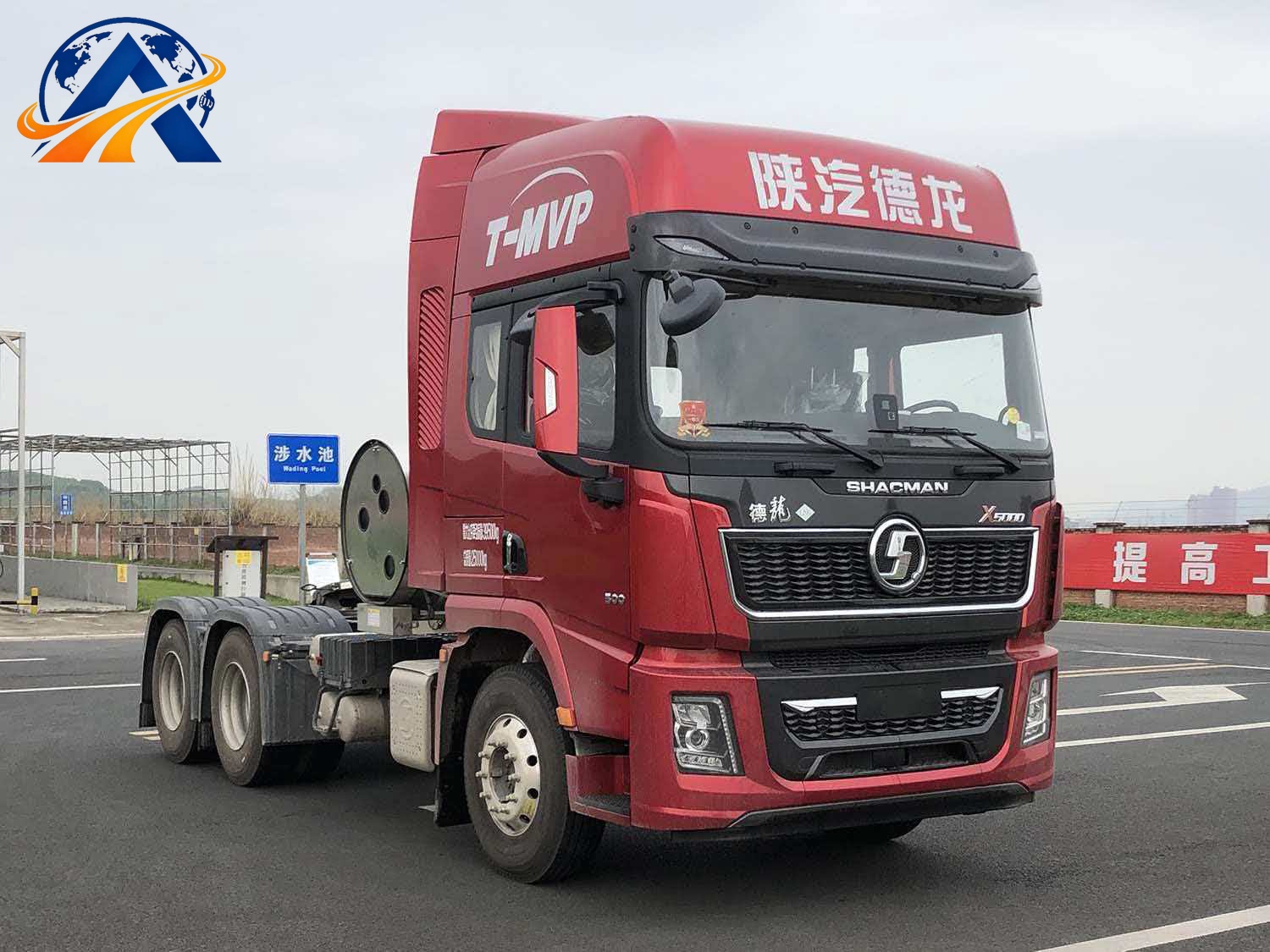

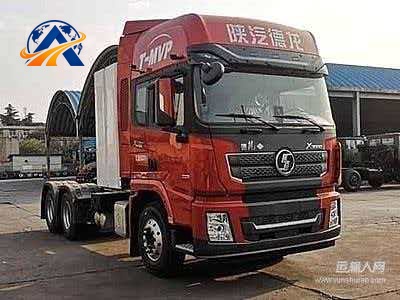

SHACMAN X5000 LNG 6×4 Tractor Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 7460mm × Width 2550mm × Height 3700mm, Curb Weight 9100kg (only standard chassis configuration, excluding all optional accessories and rear trailers)

I. Standard Configuration
Powertrain
Equipped with Weichai WP13NG/WP15NG inline six-cylinder turbocharged LNG gas engine, rated net power 353kW/480HP ~ 397kW/530HP, peak torque 2300–2600N·m, lean burn + three-way catalytic treatment, China VI-b equivalent Euro VI emission standard, suitable for trunk logistics in gas-producing countries of the Middle East and Central Asia. Matched with Fast S12MO 12-speed manual transmission with standard QH50 power take-off. ZF recirculating ball hydraulic power steering, front & rear drum air brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Hand 16-ton wheel-side reduction tandem rear axles with final drive ratio 3.545 and standard inter-axle & wheel differential lock; braking system complies with international long-distance commercial vehicle safety norms.

Hydraulic & Auxiliary System
Hydraulic power steering system with 12L steering oil tank; dual high-position air reservoirs with automatic drain valves. Standard hydraulic pipeline reservation for fifth wheel lifting, three-stage oil-water separation air filtration with real-time air pressure monitoring alarm. Standard 90# JOST fifth wheel with 40-ton rated load capacity, standard 995L horizontal insulated LNG gas cylinder, no diesel fuel tank.

Chassis & Cab Configuration

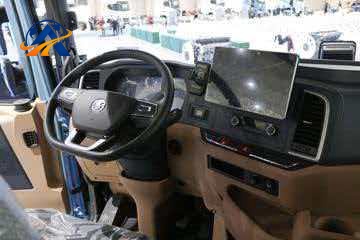

X5000 four-point air suspension high-roof flat-floor double-berth all-steel cab with 55° hydraulic forward tilting structure. Standard automatic constant temperature air conditioner, air-suspension shock-absorbing fabric driver seat, wide double sleeper, 10-inch multi-function LCD instrument, driving recorder and electrically heated wide rearview mirrors. Full 24V DC intelligent electrical system with real-time alarm modules for engine coolant temperature, oil pressure, exhaust temperature, air pressure, transmission oil temperature and gas cylinder pressure. Double-layer 8+8mm reinforced high-strength frame (300mm height), wheelbase 3775+1400mm, 9.5-ton MAN steer front axle, dual 16-ton Hand wheel reduction rear axles. Lightweight few-leaf spring suspension (2/3 leafs front / 3 leafs rear), factory-fitted 12R22.5 vacuum radial tires (11 units including spare tire). Minimum turning radius 7150mm, maximum design speed 89km/h, maximum towing weight 75 tons, factory low-temperature gas cylinder heating system for cold zones.

Service Capacities
Engine oil: 24L
Transmission gear oil: 14L
Rear axle gear oil: 13L per axle, total 26L for dual axles
Steering hydraulic oil: 12L
Coolant: 34L
LNG gas cylinder capacity: 995L
Urea tank capacity: None (gas engine without SCR urea system)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)
Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Ventilated & heated air suspended leather driver seat: +11kg weight, unchanged overall dimensions
Central control touch screen + 360° panoramic 4-way monitoring camera: +7kg weight, unchanged overall dimensions
On-board Bluetooth audio + vehicle refrigerator: +9kg weight, unchanged overall dimensions
Thick steel anti-collision cab window guard: +23kg weight, width +40mm
Heightened streamlined sun visor wind deflector: +31kg weight, overall height +160mm

Travel & Drivetrain Chassis Options
Fast S16AO 16-speed AMT automatic transmission: +41kg weight, unchanged dimensions
Hydraulic retarder assembly: +67kg weight, unchanged dimensions
Reinforced heavy-duty balance suspension assembly: total weight +90kg, unchanged dimensions
Complete -40℃ ultra-low temperature preheating kit: +18kg weight, unchanged dimensions
Widened mine-pattern heavy-duty tires (replacement for standard highway tires): overall width +60mm, total weight +105kg
Lightweight full vehicle air suspension (replacement for leaf spring suspension): weight -250kg, unchanged dimensions

Auxiliary Working Equipment Options
Dual 1350L large-capacity LNG gas cylinder assembly: +320kg weight, overall height +120mm
Extended heavy-duty fifth wheel base: +34kg weight, overall length +100mm
Widened 95# heavy-duty JOST fifth wheel (replacement for standard 90# fifth wheel): overall width +50mm, +41kg weight
Full set of thickened wear-resistant chassis guards: +53kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +5kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis & GPS positioning module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED auxiliary work light group: +13kg weight, overall height +50mm
Reinforced thickened main frame assembly: +140kg weight, overall length +60mm
Complete set of mine puncture-resistant heavy-duty tires: overall width +60mm, +112kg weight
Full side skirts + front & rear steel anti-collision protective frame: +45mm width on each side (total width +90mm), +168kg weight
