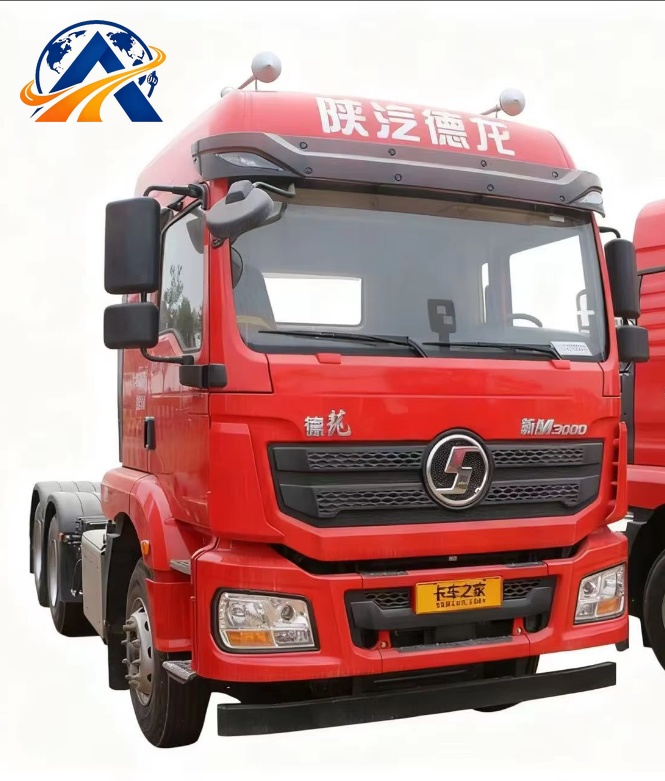

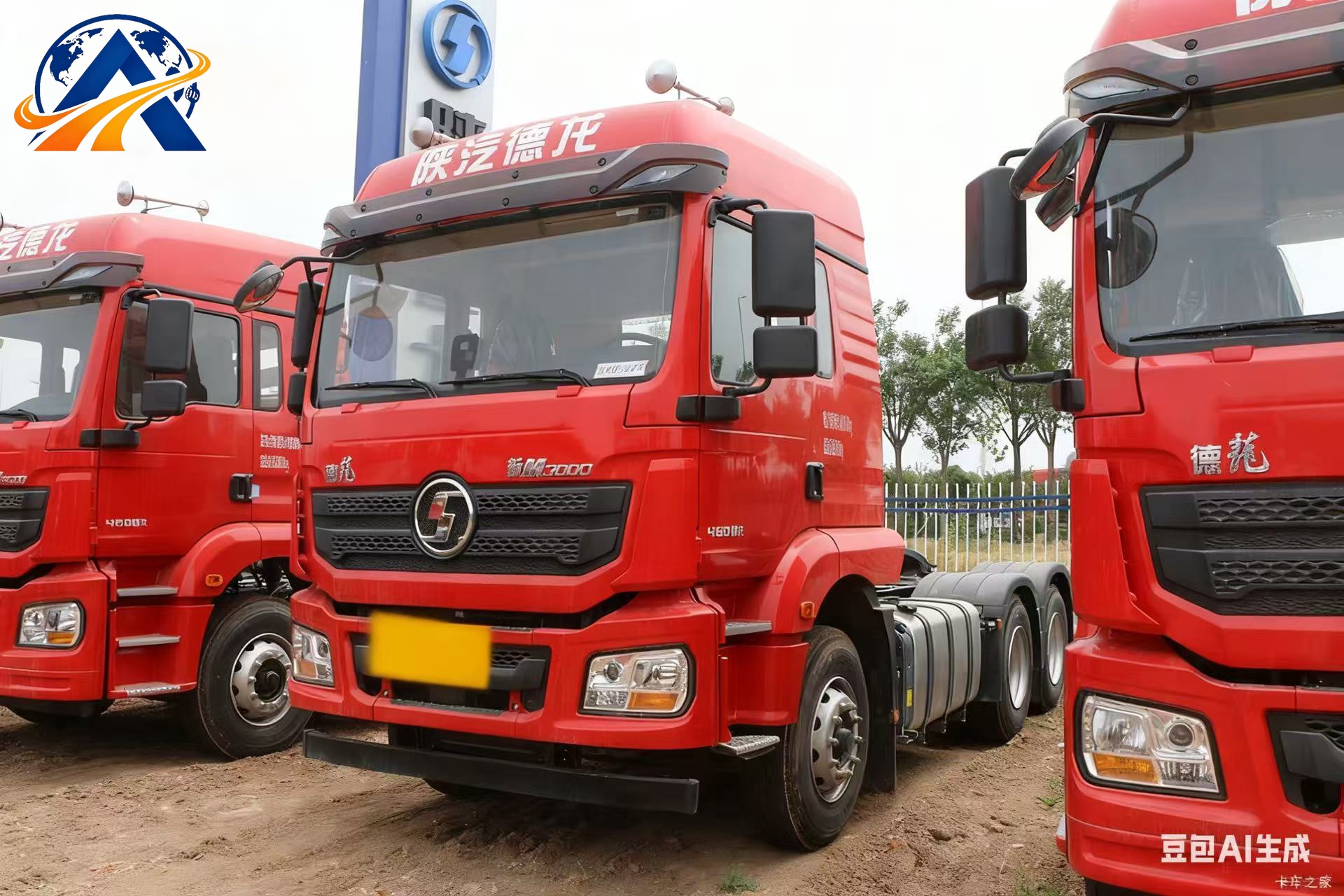

SHACMAN M3000 6×4 Tractor Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 6800mm × Width 2496mm × Height 3668mm, Curb Weight 8550kg (only standard chassis configuration, excluding all optional accessories and rear trailers)

I. Standard Configuration

Powertrain
Equipped with Weichai WP10H inline six-cylinder turbocharged intercooled diesel engine, displacement 9.726L, rated net power 294kW/400HP, peak torque 1900N·m, high-pressure common rail EFI, Euro II/Euro III/Euro V emission standards optional, suitable for standard-load logistics in Southeast Asia and the Middle East. Matched with Fast 12JSD180TA 12-speed manual transmission with standard QH50 power take-off. ZF recirculating ball hydraulic power steering, front & rear drum air brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Hand 13-ton double reduction tandem rear axles with final drive ratio 3.7 and standard rear axle differential lock; braking system complies with international commercial vehicle safety norms.

Hydraulic & Auxiliary System
Hydraulic power steering system with 12L steering oil tank; dual air reservoirs with automatic drain valves. Standard hydraulic pipeline reservation for fifth wheel lifting, three-stage oil-water separation air filtration with real-time air pressure monitoring alarm. Standard 90# fifth wheel with 40-ton rated load capacity, single 400L aluminum alloy fuel tank.

Chassis & Cab Configuration

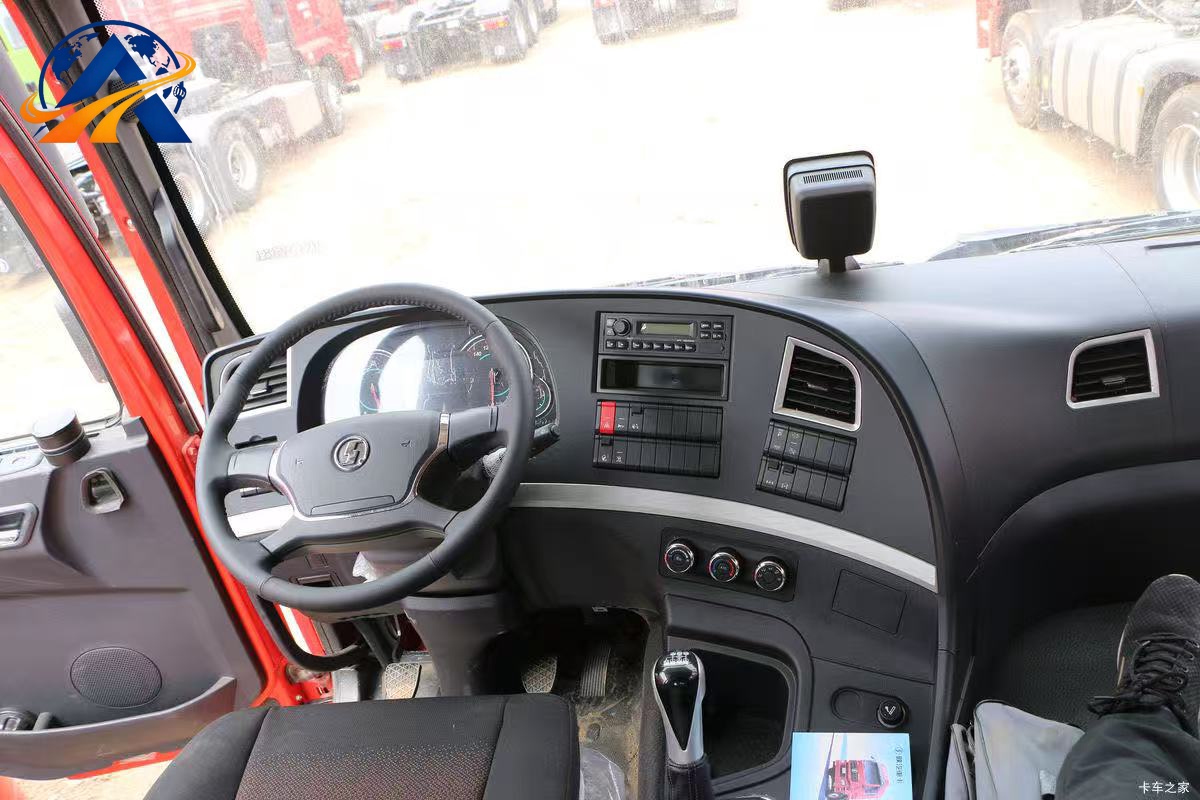

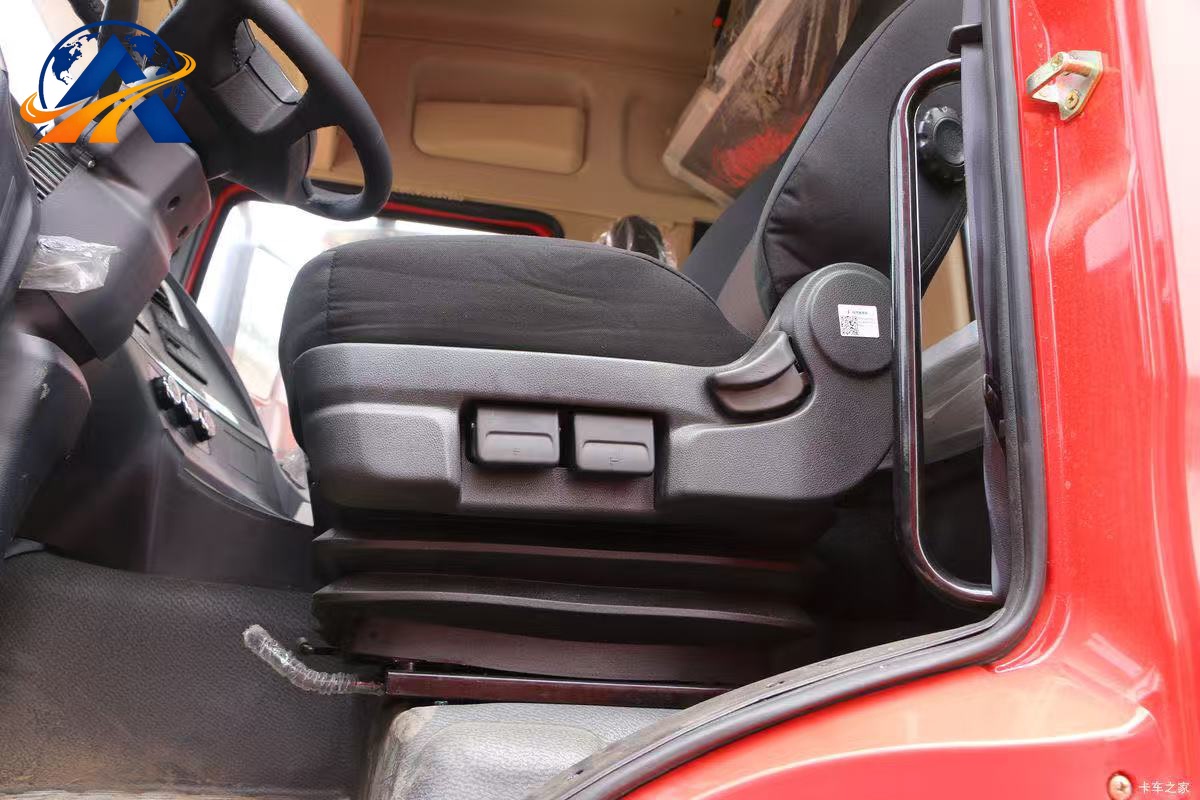

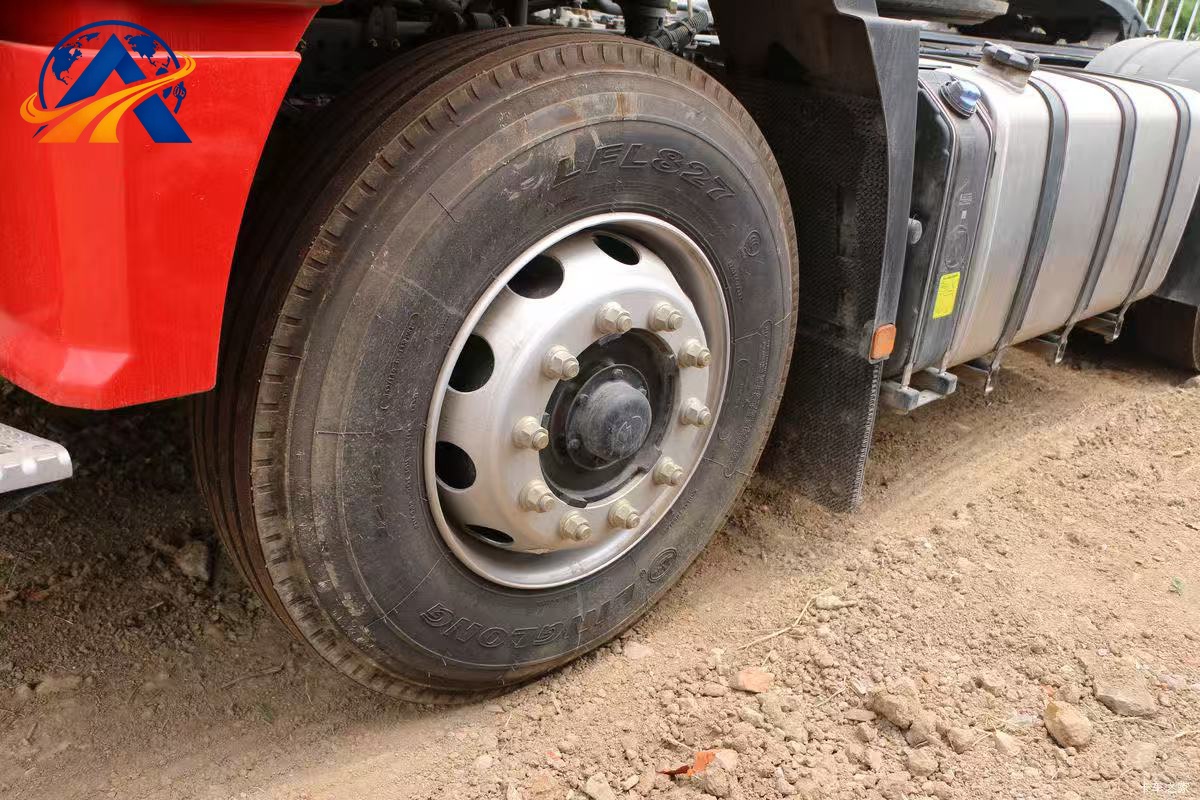

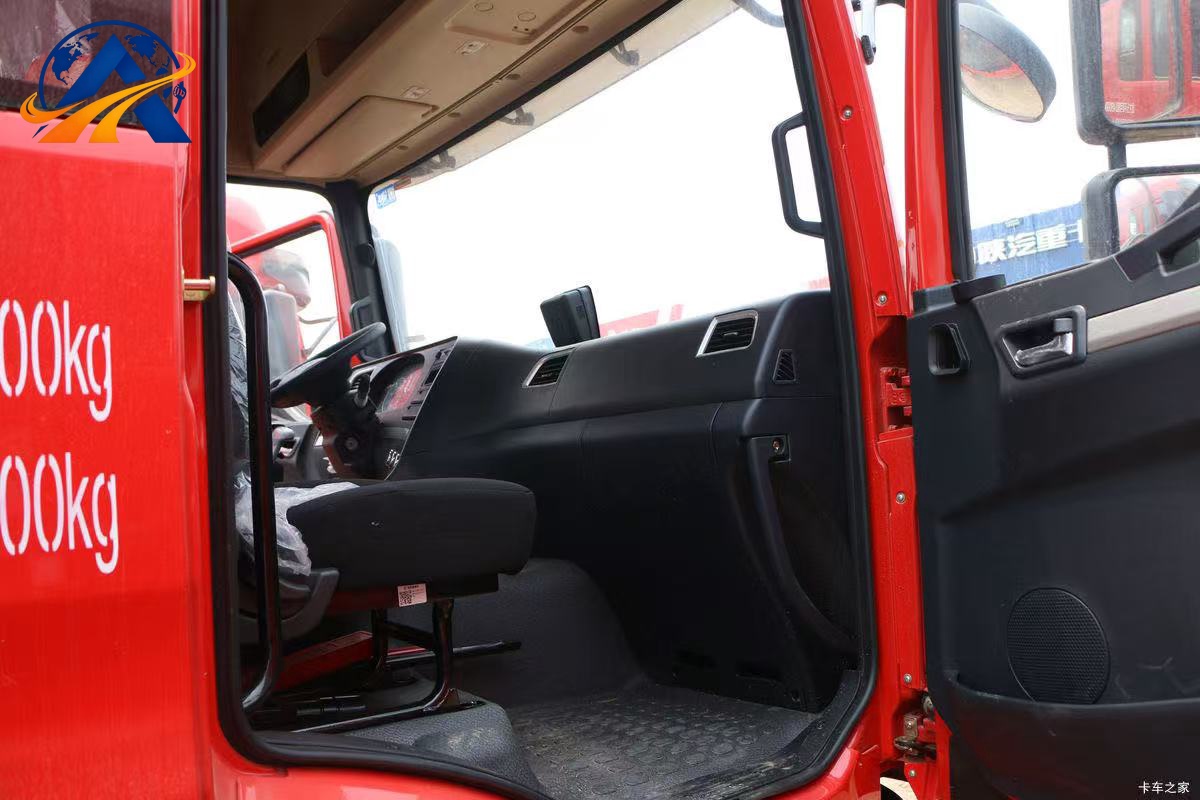

M3000 four-point mechanical suspended high-roof double-berth all-steel cab with 53° hydraulic forward tilting structure. Standard constant temperature air conditioner, shock-absorbing fabric driver seat, wide double sleeper, multi-function LCD instrument and driving recorder. Full 24V DC electrical system with real-time alarm modules for engine coolant temperature, oil pressure, exhaust temperature, air pressure and transmission oil temperature. Lightweight single-layer 300mm frame (300mm height), wheelbase 3175+1350mm, 9-ton MAN steer front axle, dual 13-ton Hand rear axles. Standard progressive multi-leaf spring suspension (9 leafs front / 12 leafs rear), factory-fitted 12R22.5 vacuum radial tires (11 units including spare tire). Minimum turning radius 7200mm, maximum design speed 90km/h, maximum towing weight 70 tons, mainstream lightweight medium-duty export logistics tractor.

Service Capacities
Engine oil: 22L
Transmission gear oil: 14L
Rear axle gear oil: 12L per axle, total 24L for dual axles
Steering hydraulic oil: 12L
Coolant: 30L
Fuel tank capacity: 400L
Urea tank capacity: 40L (Euro V only, none for Euro II/Euro III)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)
Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Ventilated & heated air suspended leather driver seat: +10kg weight, unchanged overall dimensions
Central control touch screen + 360° panoramic 4-way monitoring camera: +7kg weight, unchanged overall dimensions
On-board Bluetooth audio + vehicle refrigerator: +8kg weight, unchanged overall dimensions
Electric heated wide rearview mirrors: +6kg weight, width +30mm, height unchanged
Heightened sun visor wind deflector: +28kg weight, overall height +150mm

Travel & Drivetrain Chassis Options
HW19716 16-speed AMT automatic transmission: +40kg weight, unchanged dimensions
Hydraulic retarder assembly: +66kg weight, unchanged dimensions
Reinforced heavy-duty balance suspension assembly: total weight +82kg, unchanged dimensions
Low-temperature preheating cooling kit for frigid regions: +14kg weight, unchanged dimensions
Widened mine-pattern heavy-duty tires (replacement for standard highway tires): overall width +50mm, total weight +98kg
Lightweight full vehicle air suspension (replacement for leaf spring suspension): weight -240kg, unchanged dimensions

Auxiliary Working Equipment Options
LNG gas engine assembly replace diesel power: +265kg weight, width +45mm
Extended heavy-duty fifth wheel base: +32kg weight, overall length +100mm
Widened 95# heavy-duty fifth wheel (replacement for standard 90# fifth wheel): overall width +45mm, +38kg weight
Side-mounted extended 600L fuel tank assembly: +67kg weight, width +40mm
Full set of thickened wear-resistant chassis guards: +50kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +4kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis & positioning module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED auxiliary work light group: +11kg weight, overall height +45mm
-40℃ ultra-low temperature diesel preheating start kit: +9kg weight, unchanged dimensions
Reinforced thickened main frame assembly: +130kg weight, overall length +50mm
Complete set of mine puncture-resistant heavy-duty tires: overall width +50mm, +102kg weight
Full side skirts + front & rear steel anti-collision protective frame: +40mm width on each side (total width +80mm), +160kg weight
