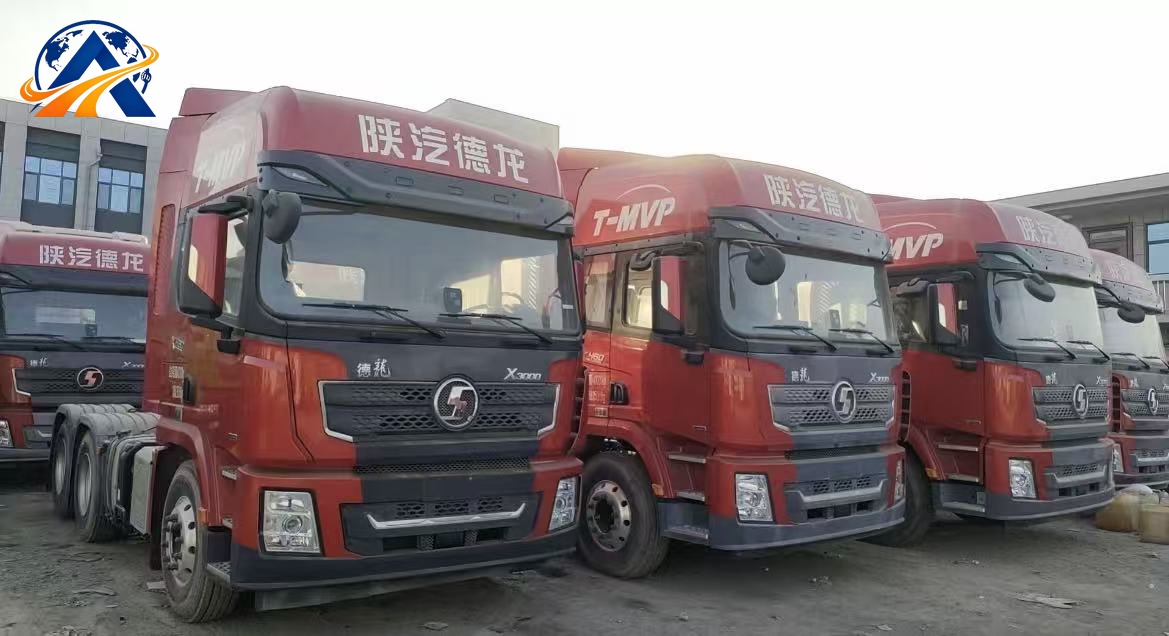

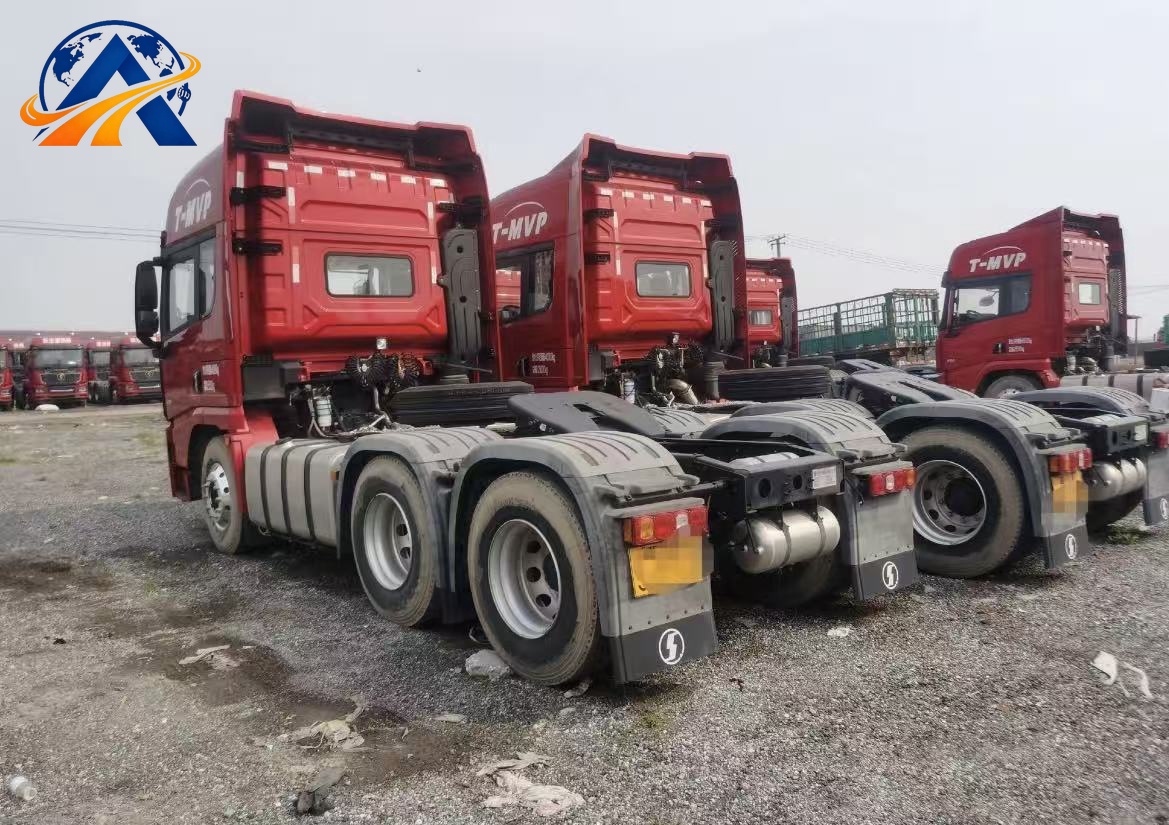

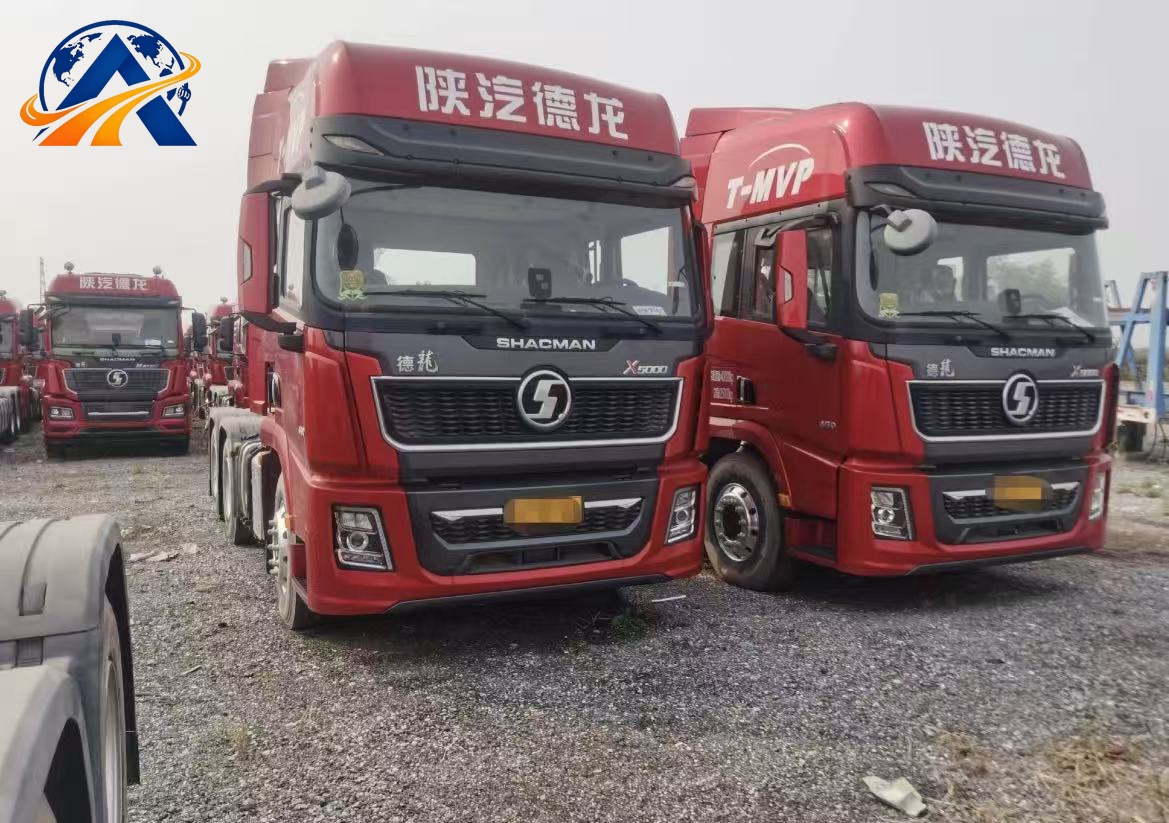

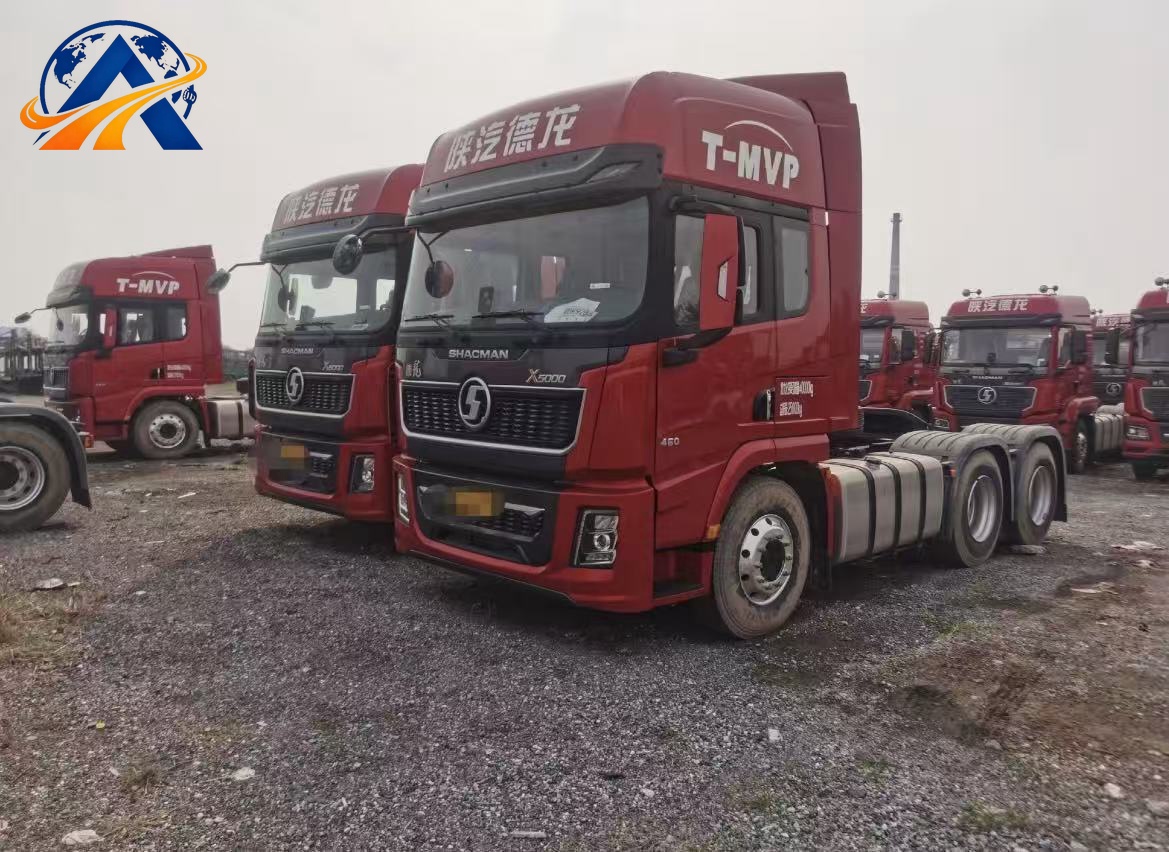

SHACMAN X3000 6×4 Tractor Truck

Basic Machine Parameters

[Dimensions & Weight] Overall Length 6850mm × Width 2490mm × Height 3650mm, Curb Weight 8800kg (only standard chassis configuration, excluding all optional accessories and rear trailers)

I. Standard Configuration

Powertrain
Equipped with Weichai WP12/WP13 inline six-cylinder turbocharged intercooled diesel engine, displacement 11.596L/12.54L, rated net power 316kW/430HP ~ 405kW/550HP, peak torque 2000–2400N·m, high-pressure common rail EFI + SCR aftertreatment, Euro II/Euro III/Euro V emission standards optional, suitable for cross-border long-distance logistics in Central Asia and Russia. Matched with Fast 12JSD240TA 12-speed manual transmission with standard QH50 power take-off. ZF recirculating ball hydraulic power steering, front & rear drum air brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Hand 16-ton wheel-side reduction tandem rear axles with final drive ratio 3.7/4.769 and standard inter-axle & wheel differential lock; braking system complies with international long-distance commercial vehicle safety norms.

Hydraulic & Auxiliary System
Hydraulic power steering system with 12L steering oil tank; dual high-position air reservoirs with automatic drain valves. Standard hydraulic pipeline reservation for fifth wheel lifting, three-stage oil-bath oil-water separation air filtration with real-time air pressure monitoring alarm. Standard 90# JOST fifth wheel with 40-ton rated load capacity, dual 400L aluminum alloy fuel tanks for long-distance cross-country transport.

Chassis & Cab Configuration
X3000 four-point air suspension high-roof flat-floor double-berth all-steel cab with 55° hydraulic forward tilting structure. Standard automatic constant temperature air conditioner, air-suspension shock-absorbing fabric driver seat, wide double sleeper, 10-inch multi-function LCD instrument, driving recorder and electrically heated wide rearview mirrors. Full 24V DC intelligent electrical system with real-time alarm modules for engine coolant temperature, oil pressure, exhaust temperature, air pressure and transmission oil temperature. Double-layer 8+8mm reinforced high-strength frame (300mm height), wheelbase 3175+1400mm, 9.5-ton MAN steer front axle, dual 16-ton Hand wheel reduction rear axles. Lightweight progressive few-leaf spring suspension (2/3 leafs front / 3 leafs rear), factory-fitted 12R22.5 vacuum radial tires (11 units including spare tire). Minimum turning radius 7100mm, maximum design speed 98km/h, maximum towing weight 75 tons, factory anti-freeze pipeline modification for frigid regions.

Service Capacities
Engine oil: 24L
Transmission gear oil: 14L
Rear axle gear oil: 13L per axle, total 26L for dual axles
Steering hydraulic oil: 12L
Coolant: 34L
Fuel tank capacity: 400L per tank, total 800L for dual tanks
Urea tank capacity: 40L (Euro V only, none for Euro II/Euro III)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)
Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Ventilated & heated air suspended leather driver seat: +11kg weight, unchanged overall dimensions
Central control touch screen + 360° panoramic 4-way monitoring camera: +7kg weight, unchanged overall dimensions
On-board Bluetooth audio + vehicle refrigerator: +9kg weight, unchanged overall dimensions
Thick steel anti-collision cab window guard: +23kg weight, width +40mm
Heightened widened streamlined sun visor wind deflector: +31kg weight, overall height +160mm

Travel & Drivetrain Chassis Options
Fast 16-speed AMT automatic transmission: +41kg weight, unchanged dimensions
Hydraulic retarder assembly: +67kg weight, unchanged dimensions
Reinforced heavy-duty balance suspension assembly: total weight +90kg, unchanged dimensions
Low-temperature preheating cooling kit for -40℃ frigid regions: +17kg weight, unchanged dimensions
Widened mine-pattern heavy-duty tires (replacement for standard highway tires): overall width +60mm, total weight +105kg
Lightweight full vehicle air suspension (replacement for leaf spring suspension): weight -250kg, unchanged dimensions

Auxiliary Working Equipment Options
LNG gas power assembly replace diesel engine: +275kg weight, width +50mm
Extended heavy-duty fifth wheel base: +34kg weight, overall length +100mm
Widened 95# heavy-duty JOST fifth wheel (replacement for standard 90# fifth wheel): overall width +50mm, +41kg weight
Side-mounted single 800L extra-large fuel tank assembly: +71kg weight, width +45mm
Full set of thickened wear-resistant chassis guards: +53kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +5kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis & GPS positioning module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED auxiliary work light group: +13kg weight, overall height +50mm
-40℃ ultra-low temperature diesel preheating start kit: +10kg weight, unchanged dimensions
Reinforced thickened main frame assembly: +140kg weight, overall length +60mm
Complete set of mine puncture-resistant heavy-duty tires: overall width +60mm, +112kg weight
Full side skirts + front & rear steel anti-collision protective frame: +45mm width on each side (total width +90mm), +168kg weight
