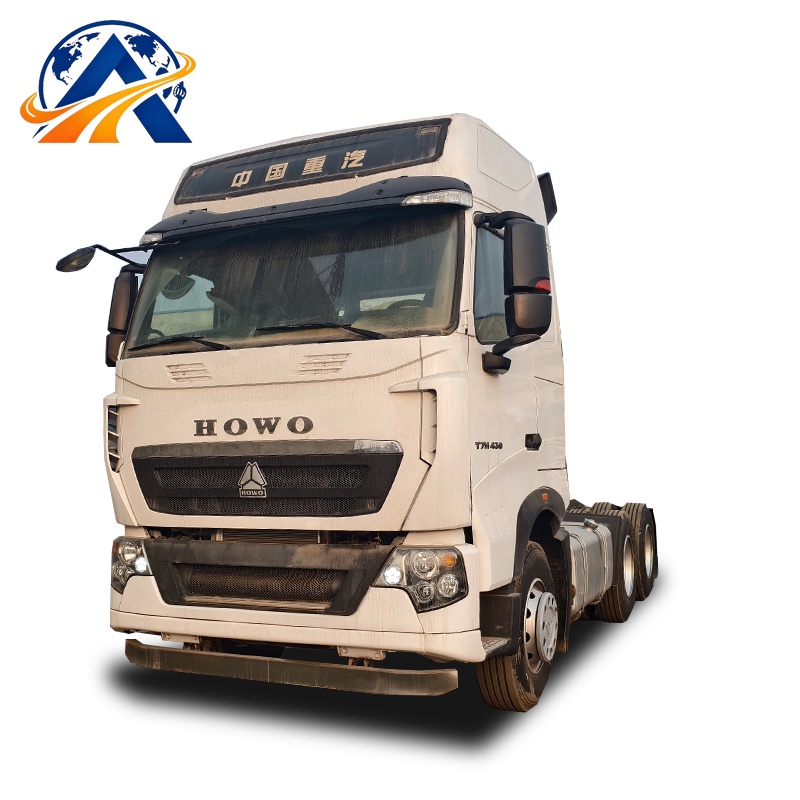

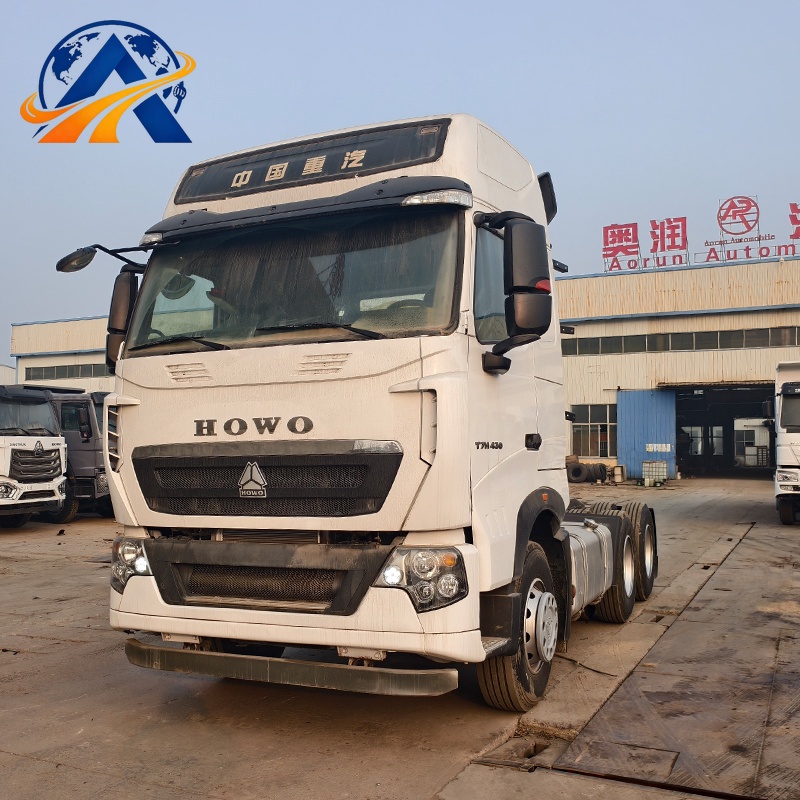

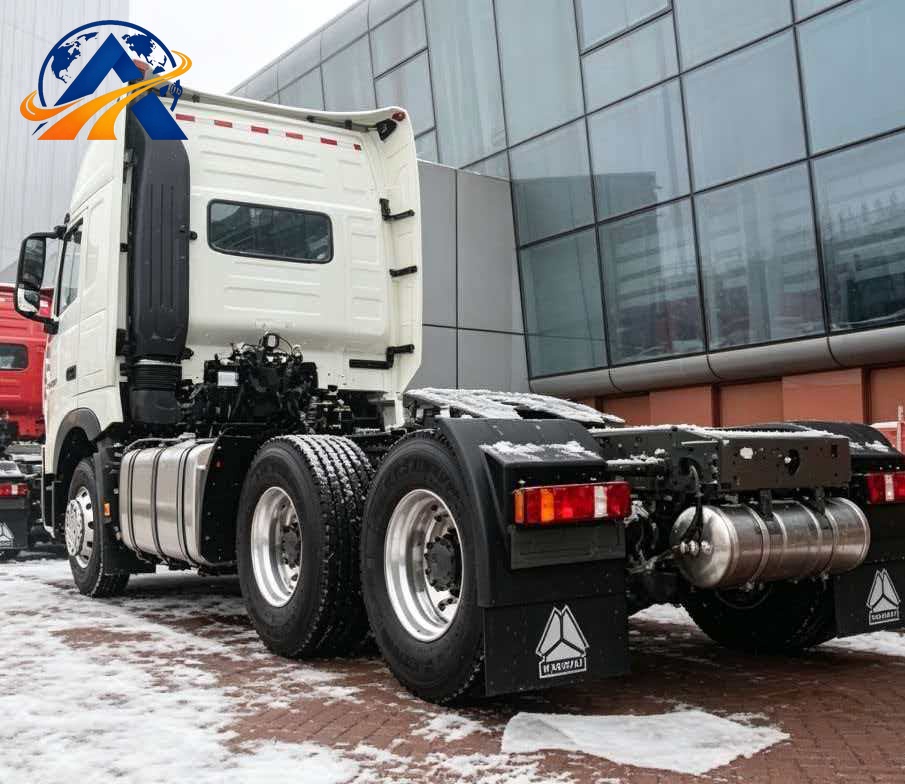

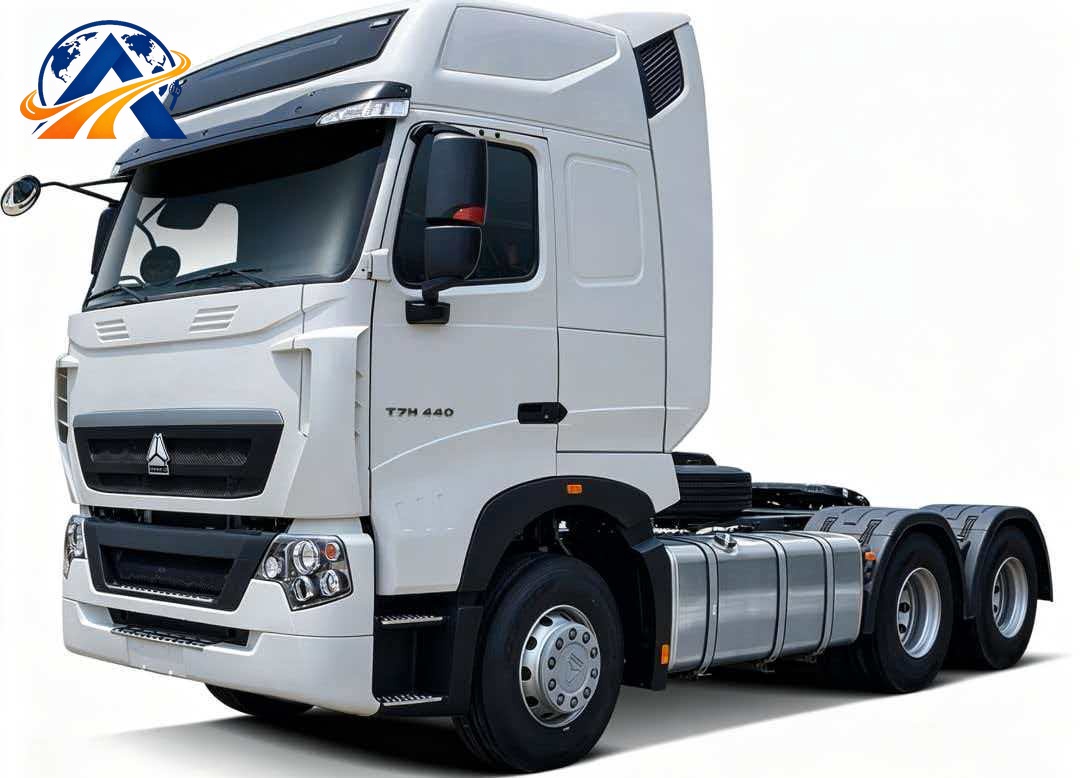

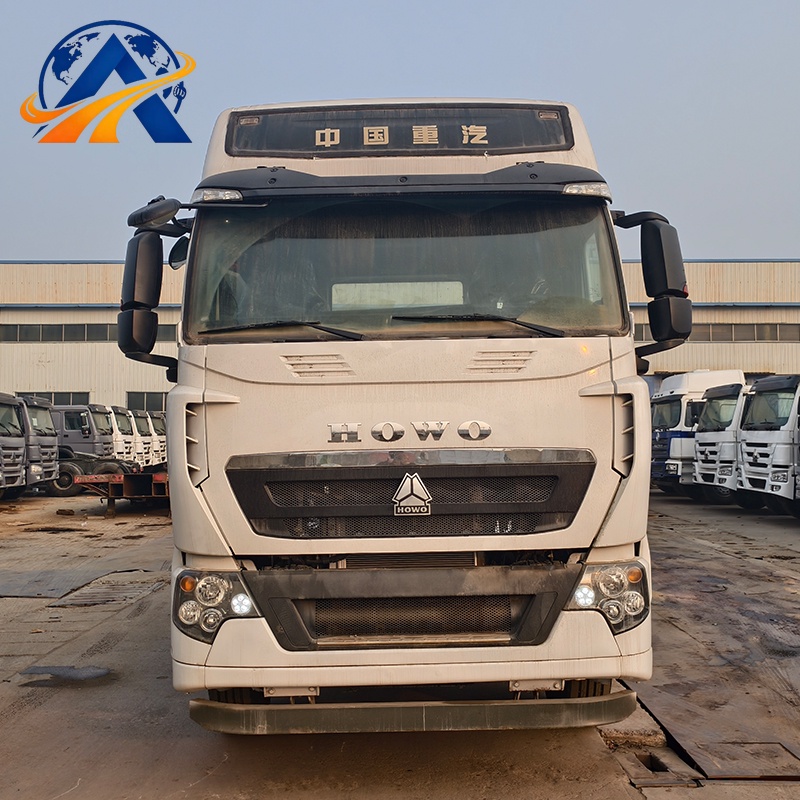

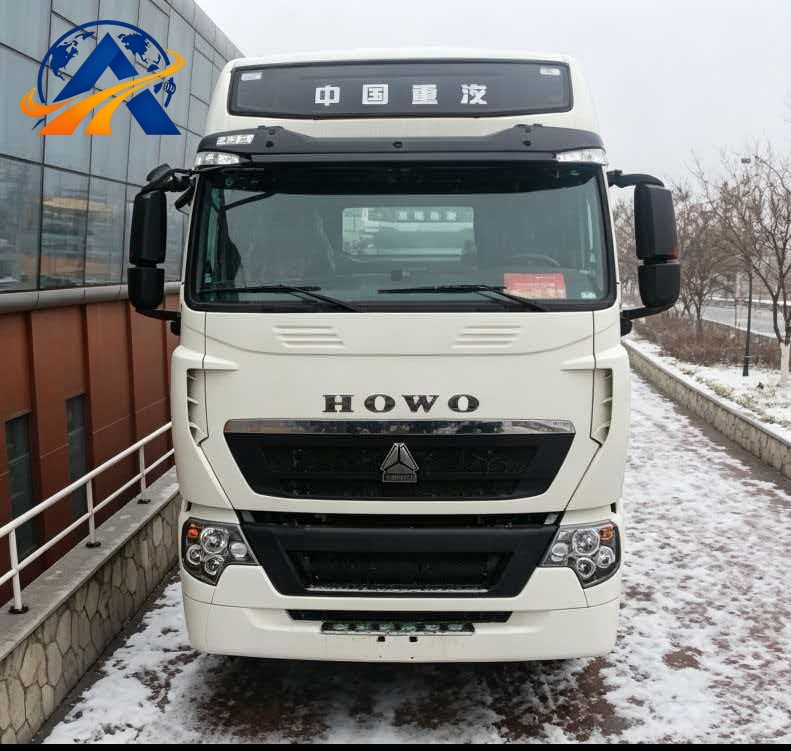

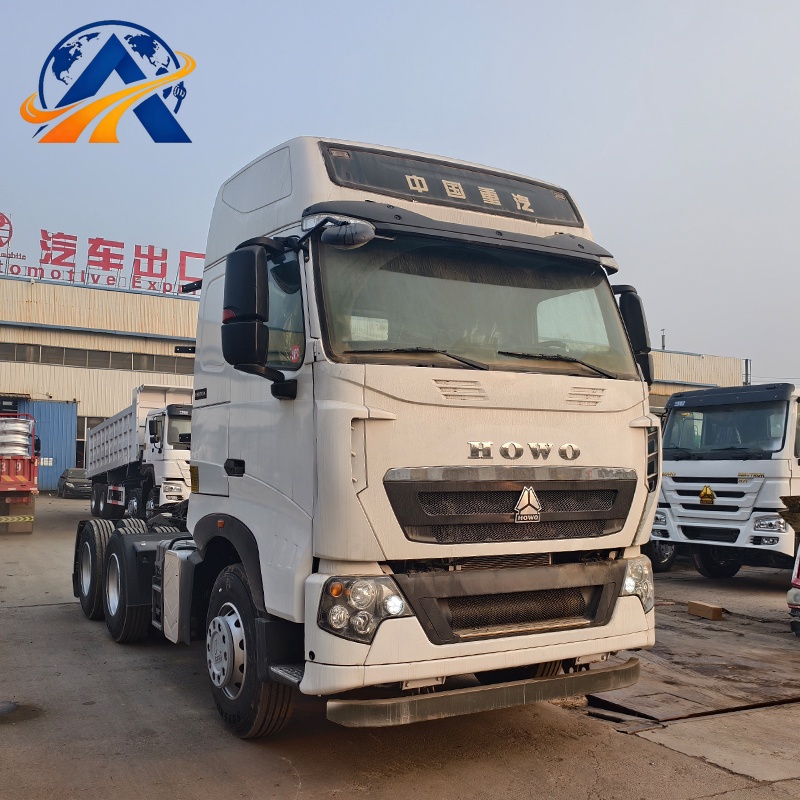

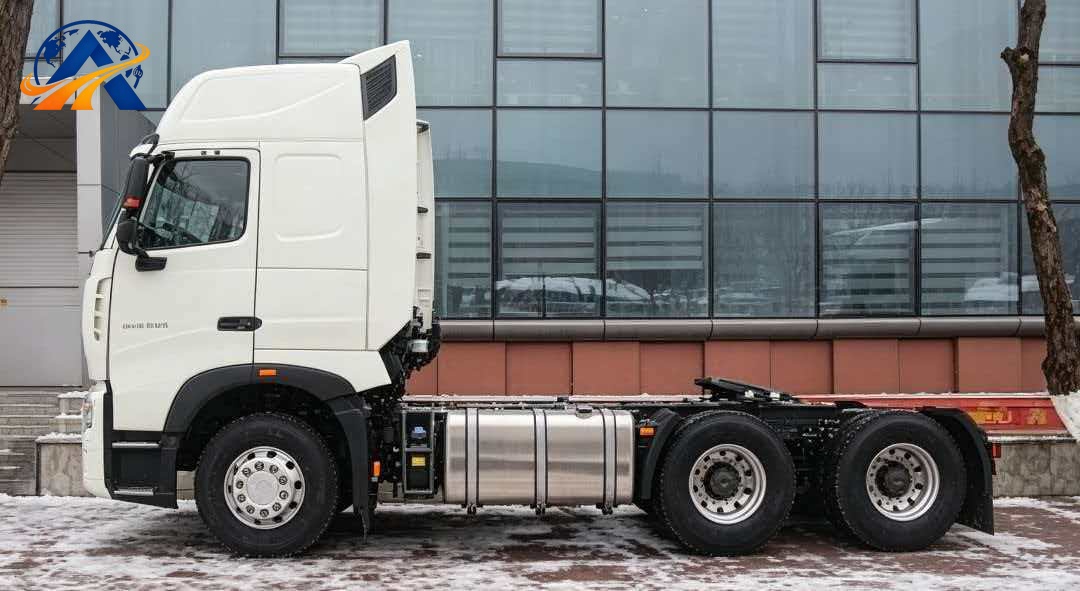

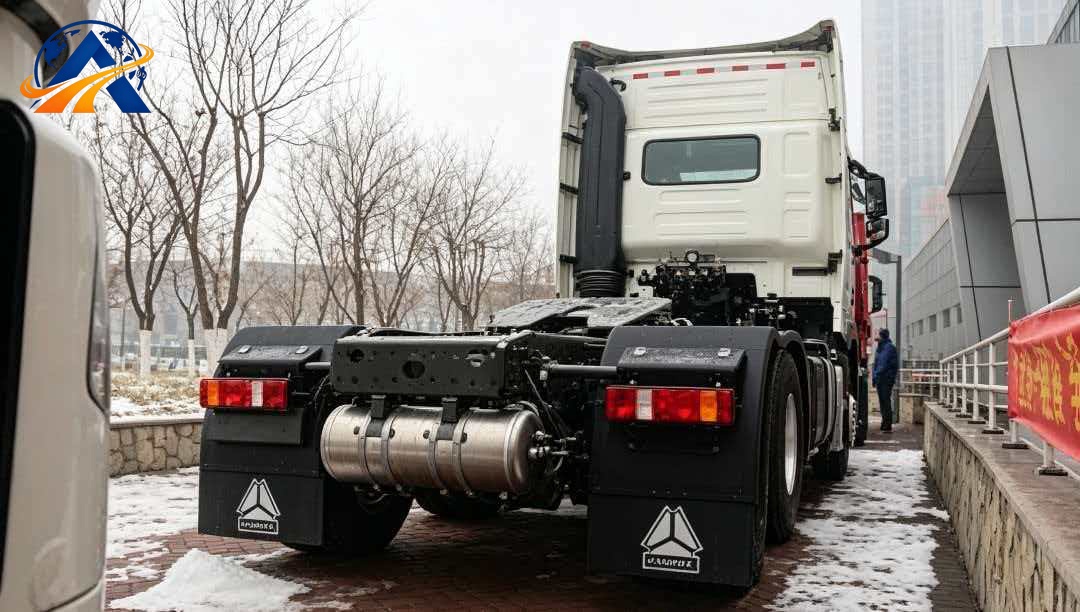

SINOTRUK HOWO T7H 6×4 Tractor Truck

Name: SINOTRUK HOWO T7H 6×4 Tractor Truck
SKU: 0

6×4 tractor head with MAN MC11/MC13 engine, 440–540HP, Euro V. Standard 12-speed manual gearbox (16-speed AMT optional), WABCO ABS and 16-ton MCY13 tandem axles with diff lock, max towing 75 tons. Dual 400L fuel tanks (total 800L), air-suspended high-roof double-berth cab and 315/80R22.5 vacuum tires. Optional hydraulic retarder, mine tires, full vehicle air suspension and GPS diagnostic system.

+86 166 1556 9350

mikesun@lcytruck.com

+86 166 1556 9350

Contact Us

◉ PRODUCT PARAMETERS

Basic Machine Parameters
[Dimensions & Weight] Overall Length 6920mm × Width 2550mm × Height 3620mm, Curb Weight 8400kg (standard chassis only, excluding all optional fittings and rear trailers)
I. Standard Configuration
Powertrain
MAN MC11/MC13 inline six-cylinder turbo diesel engine, power range 330kW/440HP ~ 397kW/540HP, peak torque 2300N・m, Euro V emission with SCR aftertreatment. Optional SINOTRUK 16-speed AMT automatic transmission, standard 12-speed manual transmission with PTO. Hydraulic power steering, full air drum brakes, WABCO full air control + ABS. MCY13 16-ton tandem rear axles, final drive ratio 4.77, standard differential lock.
Hydraulic & Auxiliary System

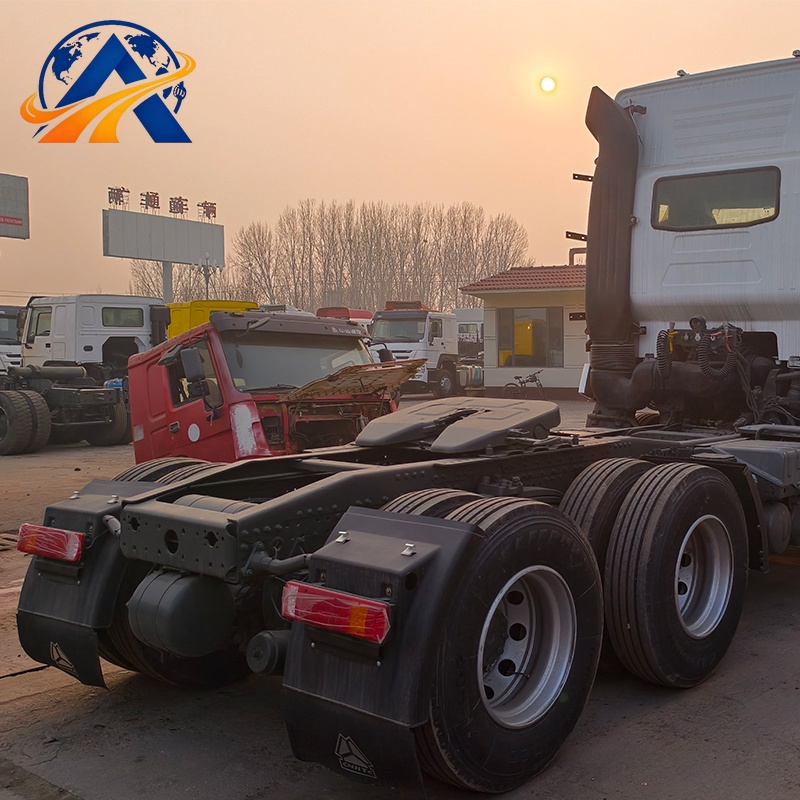

12L steering oil tank, dual auto-drain air tanks, three-stage air filter. Dual 400L fuel tanks, reserved hydraulic pipeline for 90# standard fifth wheel (40-ton bearing capacity).
Chassis & Cab Configuration

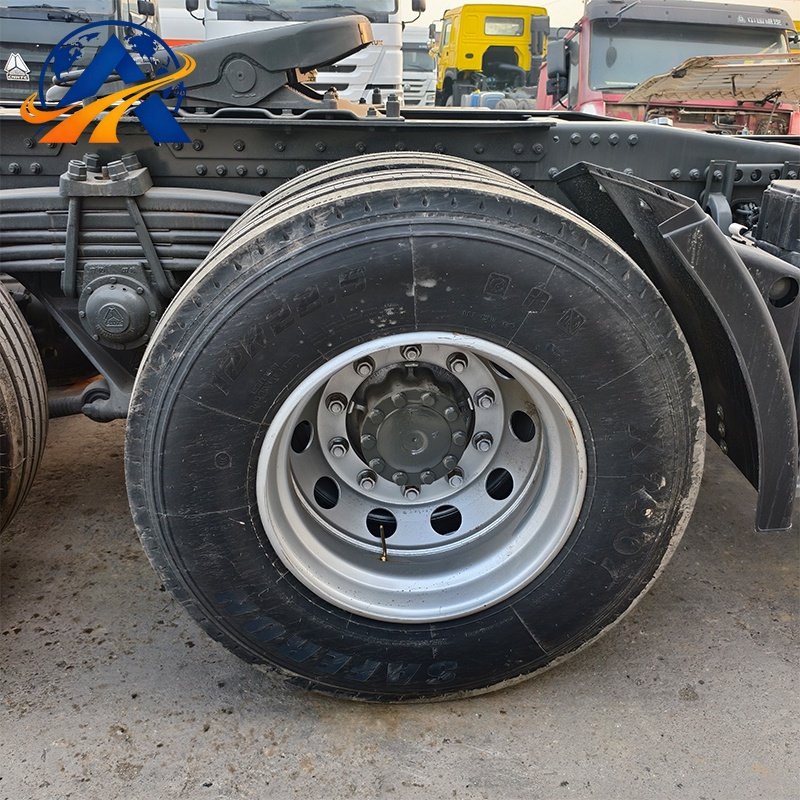

High-roof double-berth four-point air suspension cab with hydraulic tilting, constant temperature AC, air shock fabric driver seat, multi-function LCD meter, driving recorder, electrically heated rearview mirror as standard. 24V full monitoring electrical system. Lightweight 300×8mm frame, front few-leaf spring suspension, dual 16-ton rear axles with few-leaf springs, 315/80R22.5 vacuum tires. Min turning radius 7100mm, max design speed 95km/h. Maximum towing weight 75 tons.

Service Capacities
Engine oil: 25L
Transmission gear oil: 14L
Dual rear axle gear oil total: 24L
Steering hydraulic oil: 12L
Coolant: 34L
Single fuel tank: 400L, dual total 800L
Urea tank capacity: 40L
II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)

Cab Interior Options
Leather ventilated heating air suspension seat: +12kg
360° panoramic monitoring system: +7kg
On-board refrigerator + Bluetooth audio: +9kg
Heightened wind deflector: +30kg, height +160mm

Travel & Drivetrain Chassis Options
Hydraulic retarder assembly: +65kg
Reinforced heavy-duty balance suspension: +92kg
Mine wide tires: width +60mm, +110kg
Full air suspension whole vehicle: -260kg weight

Auxiliary Working Equipment Options
95# heavy-duty widened fifth wheel: width +50mm, +42kg
Side 800L large fuel tank: +68kg, width +40mm
Chassis full wear-resistant guard plate: +55kg

Safety & Special Site Options
Remote GPS fault diagnosis module: +6kg
Full LED work light group: +13kg, height +50mm
-40℃ ultra-low temperature preheating kit: +10kg

◉ FAQ

Q： What types of vehicles do you supply?

A：

We supply a wide range of heavy-duty commercial vehicles, including dump trucks, tractor heads, water tank trucks, special-purpose vehicles, semi-trailers and other transportation and construction equipment.

Q： How do I choose the right truck configuration?

A：

The right configuration depends on your cargo, road conditions, load requirements and application. Our team can recommend suitable configurations such as 4×2, 6×4 and 8×4 based on your specific requirements.

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
