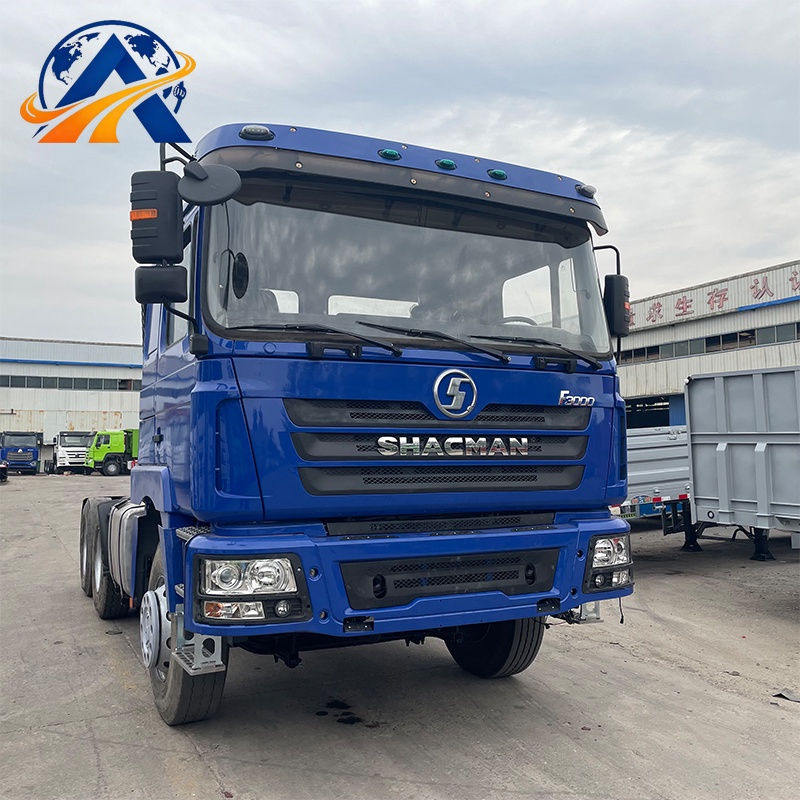

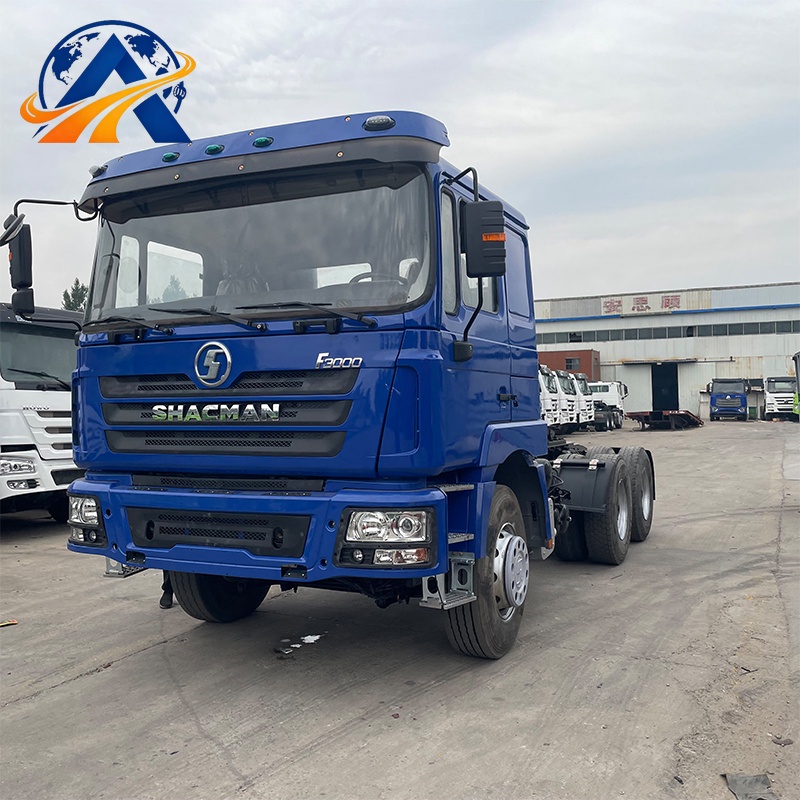

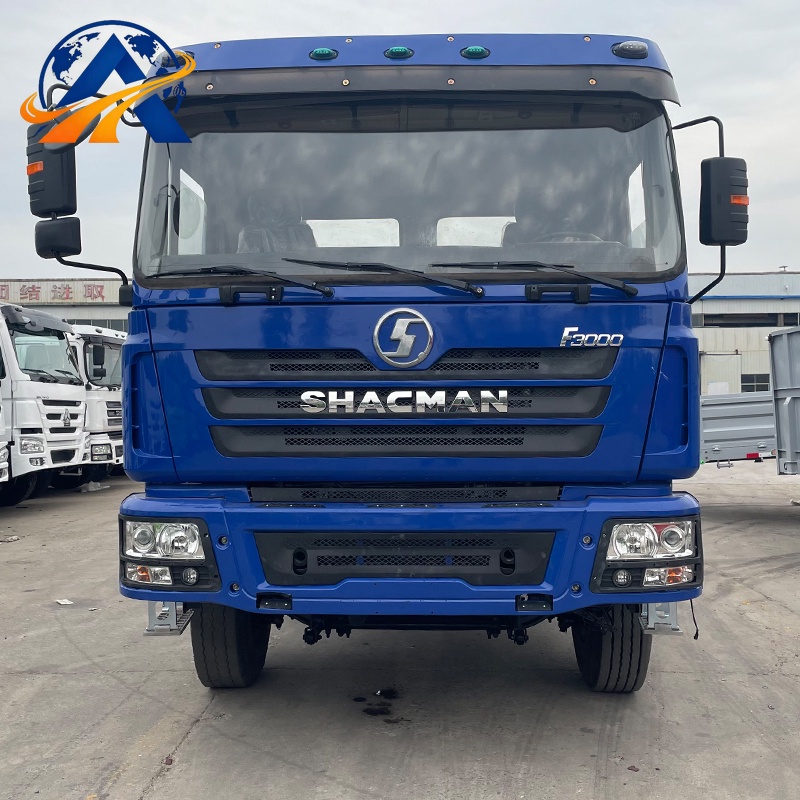

SHACMAN F3000 6×4 Tractor Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 6825mm × Width 2490mm × Height 3210mm, Curb Weight 8400kg (only standard chassis configuration, excluding all optional accessories and rear trailers)

I. Standard Configuration
Powertrain

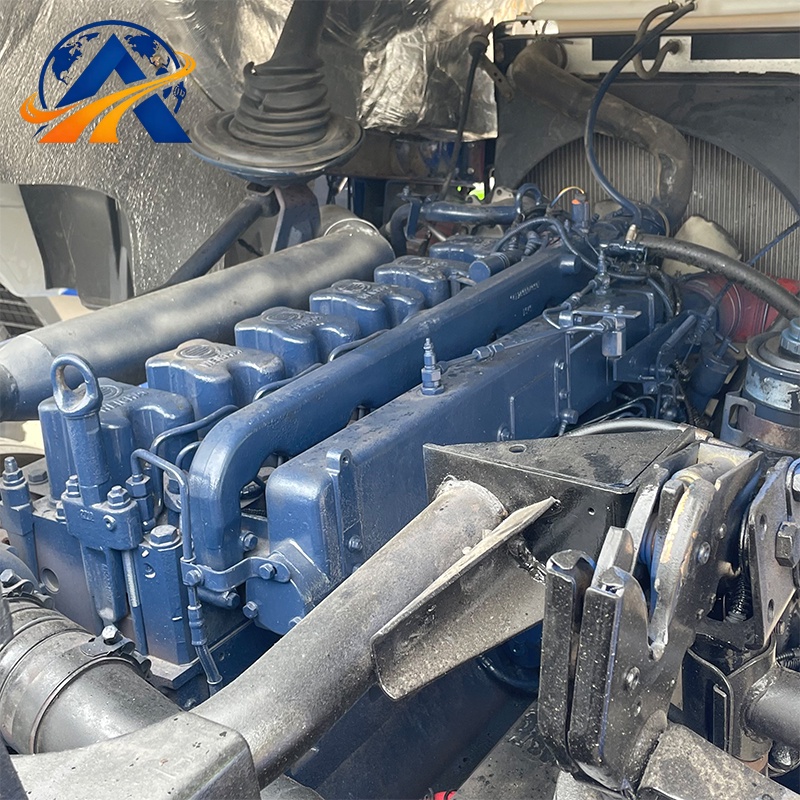

Equipped with Weichai WP10/WP12 inline six-cylinder turbocharged intercooled diesel engine, displacement 9.726L, rated net power 276kW/375HP ~ 316kW/430HP, peak torque 1750–1800N·m, mechanical direct injection / high-pressure common rail optional, Euro II/Euro III emission standards compatible with low-grade fuel for African mines. Matched with Fast 12JSD180 12-speed manual transmission with standard QH50 power take-off. ZF recirculating ball hydraulic power steering, front & rear drum air brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Hand 16-ton double reduction tandem rear axles equipped with inter-axle & wheel differential lock; braking system complies with overseas mining commercial vehicle safety norms.

Hydraulic & Auxiliary System
Hydraulic power steering system with 12L steering oil tank; dual high-position air reservoirs with automatic drain valves. Standard hydraulic pipeline reservation for fifth wheel lifting, three-stage oil-bath oil-water separation air filtration with real-time air pressure monitoring alarm. Standard 90# fifth wheel with 40-ton rated load capacity, single 400L aluminum fuel tank.

Chassis & Cab Configuration

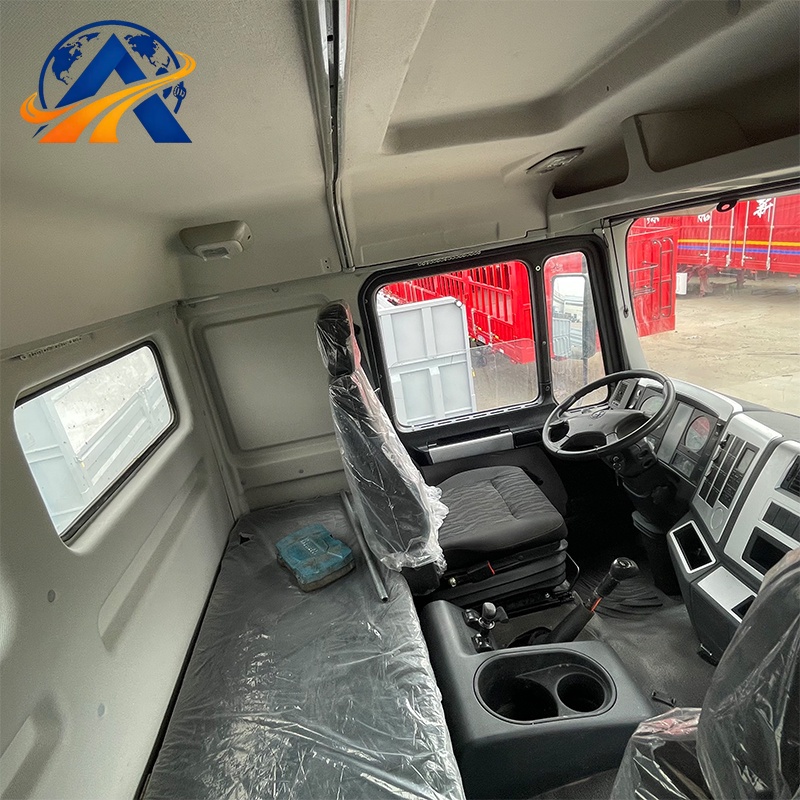

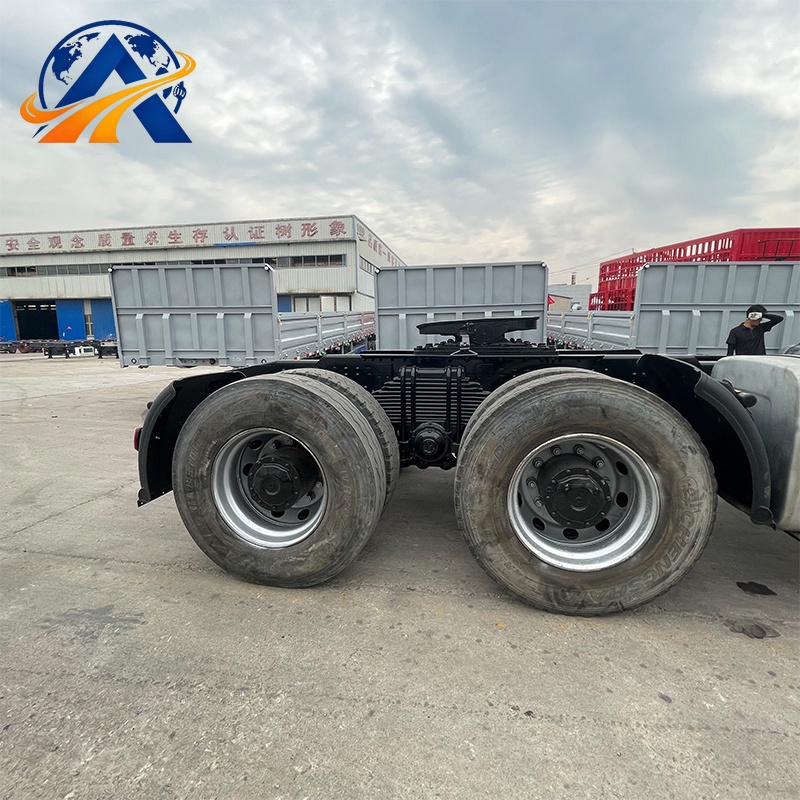

F3000 four-point hydraulic suspended flat-roof all-steel cab with 52° manual forward tilting structure. Standard constant temperature air conditioner, shock-absorbing fabric driver seat, single sleeper, mechanical pointer instrument and basic driving recorder. Full 24V DC electrical system with real-time alarm modules for engine coolant temperature, oil pressure, exhaust temperature and air pressure. Double-layer 8+8mm reinforced high-strength frame (300mm height), wheelbase 3175+1400mm, 9.5-ton MAN steer front axle, dual 16-ton Hand rear axles. Heavy-duty progressive multi-leaf spring suspension (10 leafs front / 12 leafs rear), factory-fitted 12.00R20 16PR engineering steel radial tires (11 units including spare tire). Minimum turning radius 7300mm, maximum design speed 95km/h, maximum towing weight 70 tons, mainstream model for mine semi-trailer transportation in Africa.

Service Capacities
Engine oil: 22L
Transmission gear oil: 14L
Rear axle gear oil: 12L per axle, total 24L for dual axles
Steering hydraulic oil: 12L
Coolant: 30L
Fuel tank capacity: 400L
Urea tank: None (Euro II/Euro III version without SCR)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)

Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Basic air suspension driver seat: +9kg weight, unchanged overall dimensions
Basic reversing monitor display screen: +5kg weight, unchanged overall dimensions
Electric heated wide rearview mirrors: +6kg weight, width +30mm, height unchanged
Heightened sun visor wind deflector: +27kg weight, overall height +140mm

Travel & Drivetrain Chassis Options
Reinforced heavy-duty balance suspension assembly: total weight +85kg, unchanged dimensions
Desert reinforced cooling oil-bath air filter kit: +15kg weight, unchanged dimensions
Mine thickened puncture-resistant pattern tires (replace standard tires): overall width +50mm, total weight +100kg
LNG gas cylinder assembly replace fuel tank: +270kg weight, width +50mm
Hydraulic retarder assembly: +68kg weight, unchanged dimensions

Auxiliary Working Equipment Options
Extended heavy-duty fifth wheel base: +33kg weight, overall length +100mm
Widened 95# heavy-duty fifth wheel: overall width +45mm, +39kg weight
Side-mounted extended 600L fuel tank assembly: +69kg weight, width +40mm
Full set of thickened wear-resistant chassis guards: +52kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +4kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis & positioning module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED auxiliary work light group: +12kg weight, overall height +45mm
Reinforced thickened main frame assembly: +135kg weight, overall length +55mm
