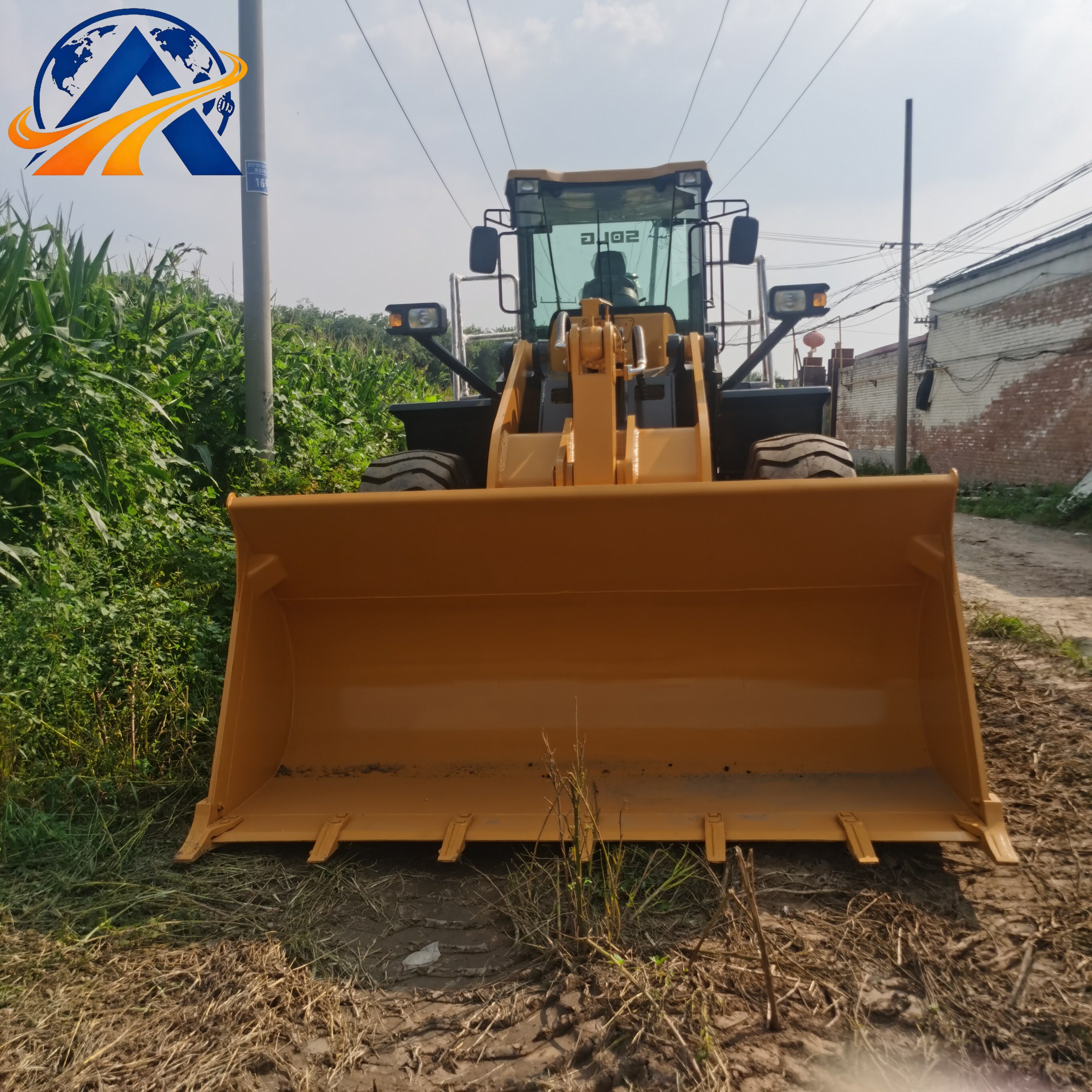

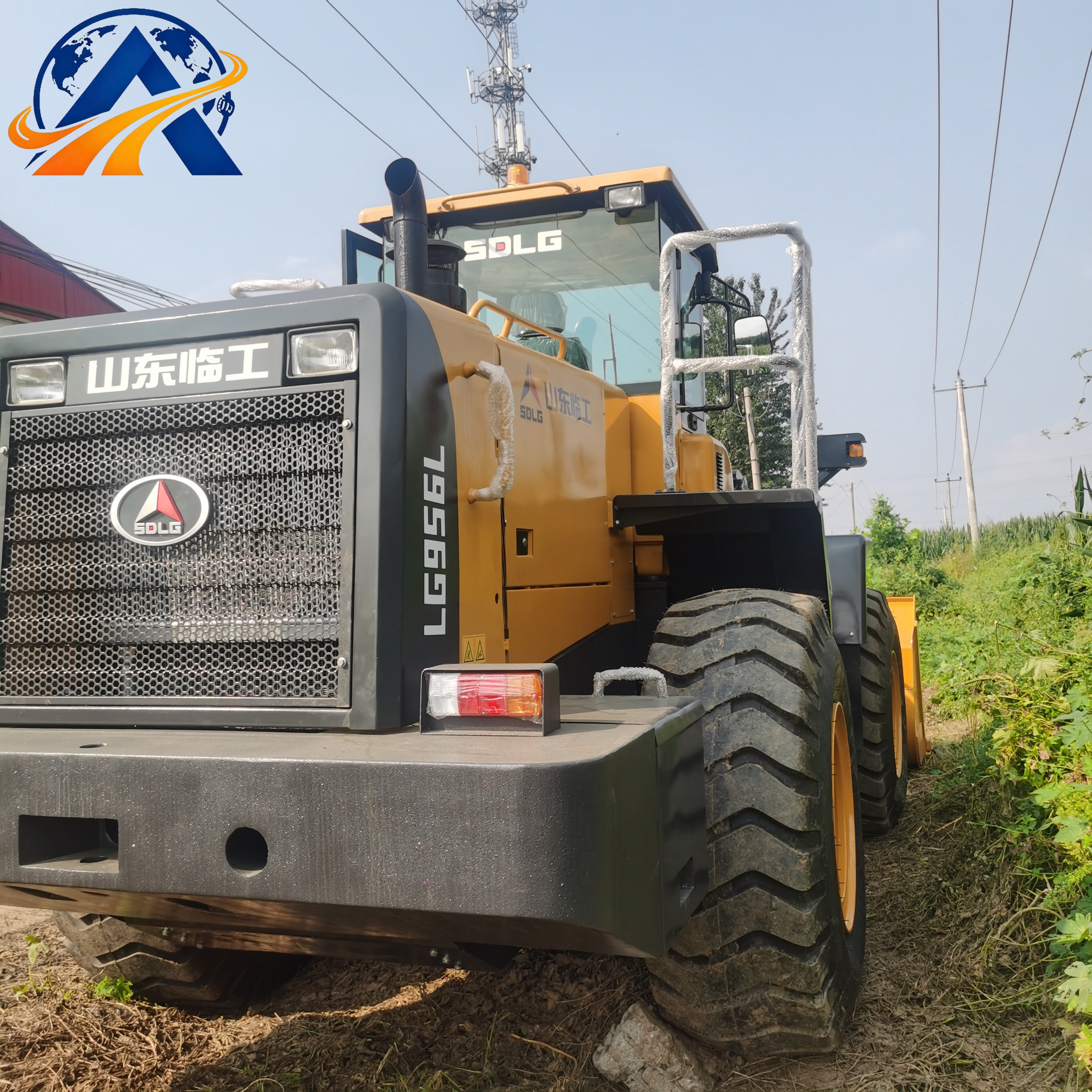

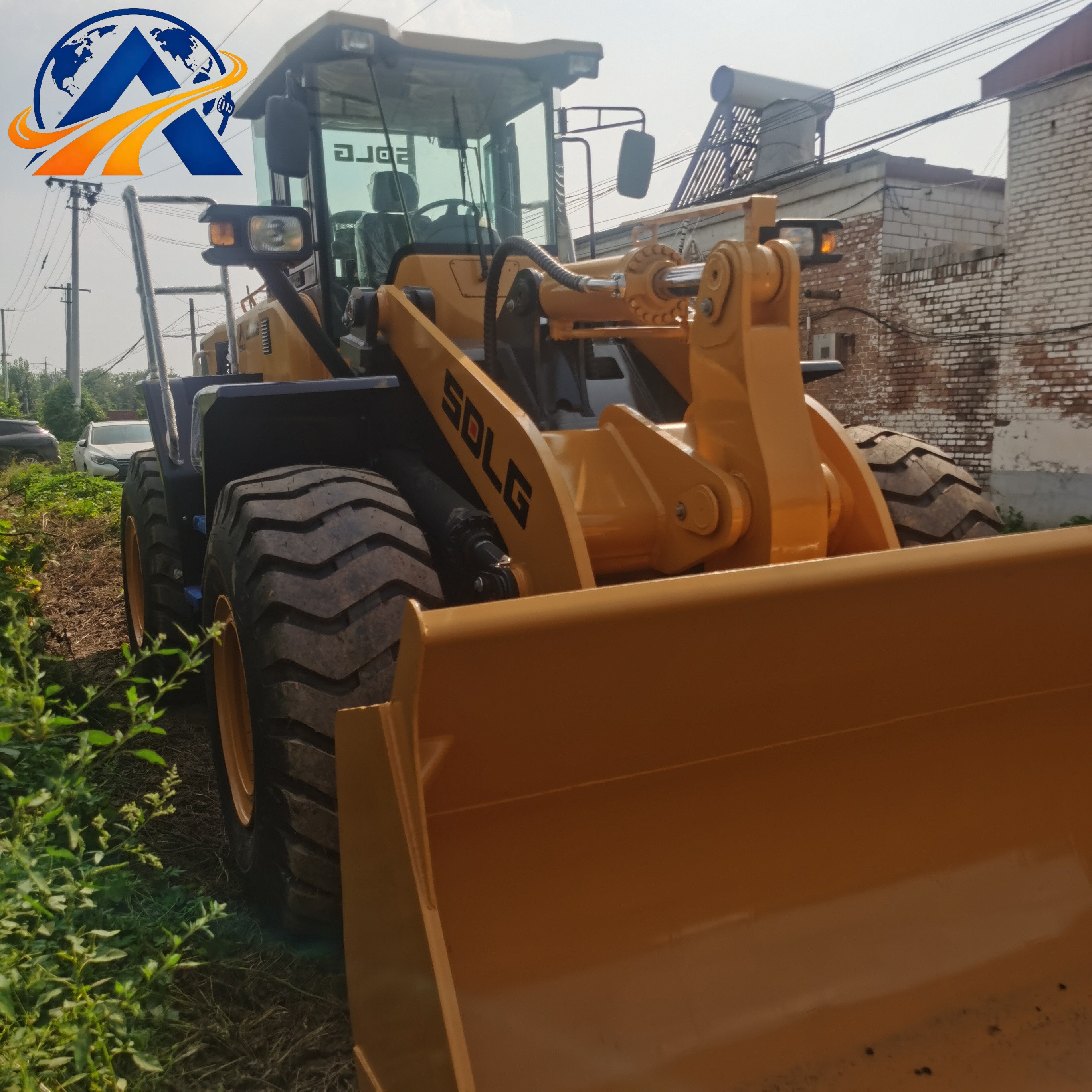

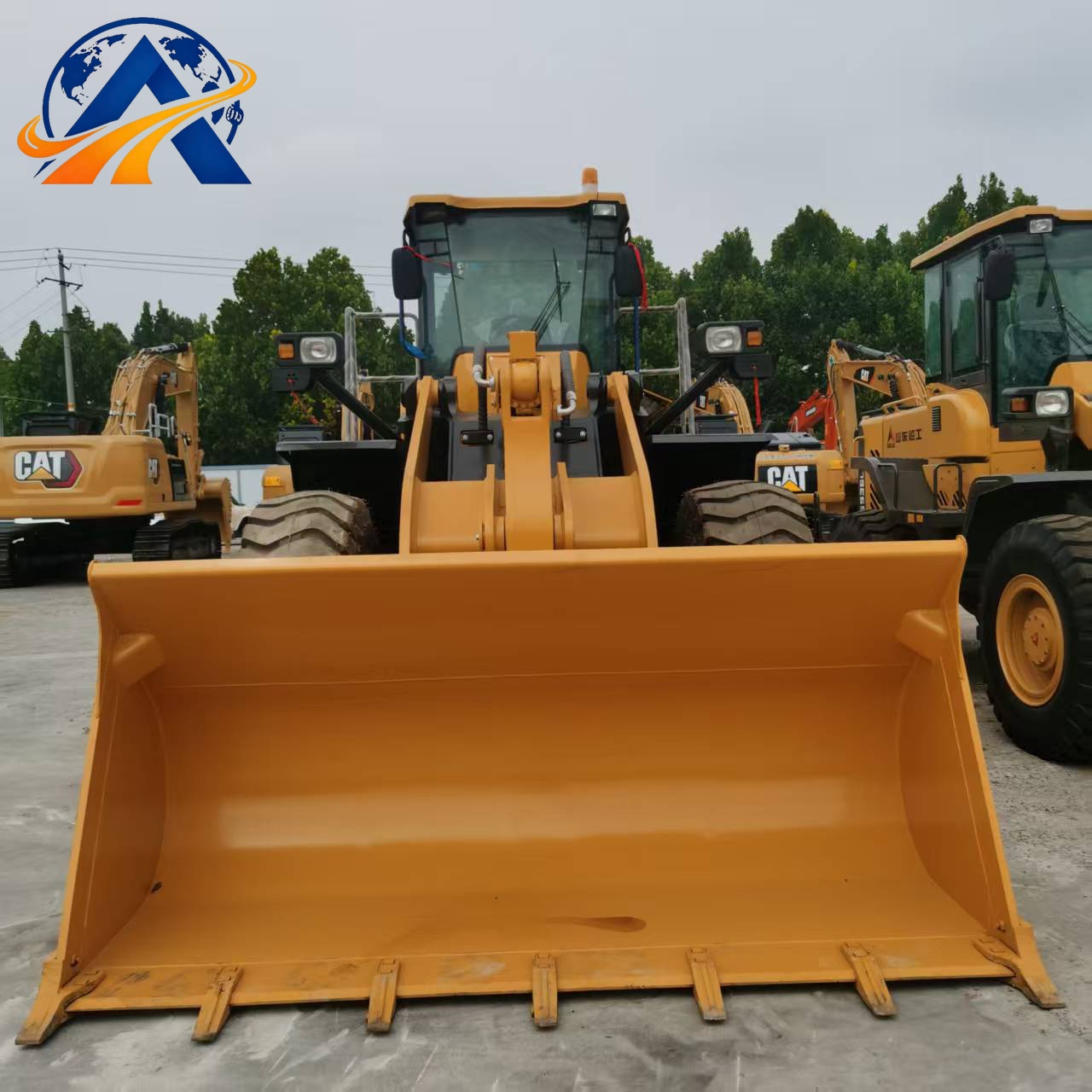

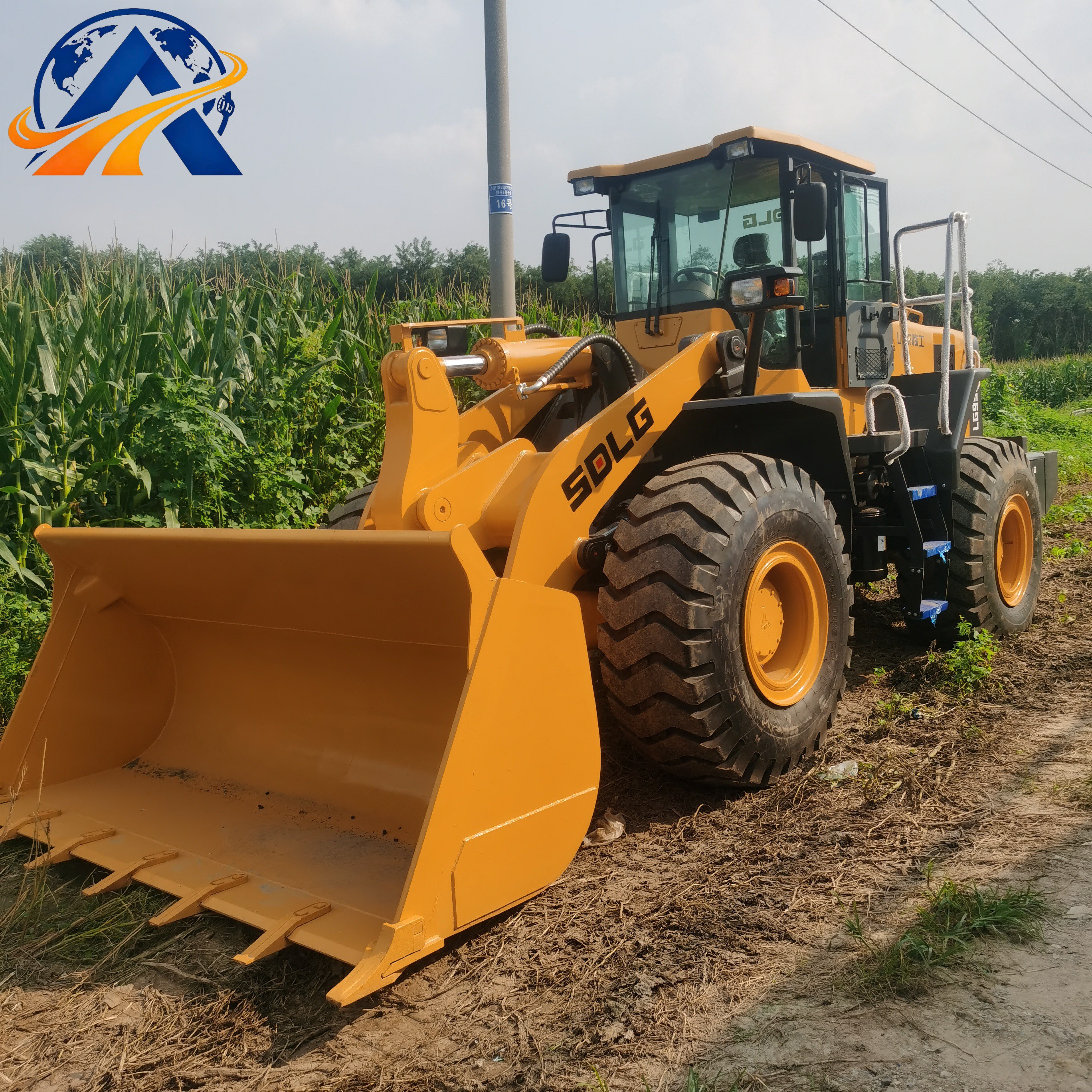

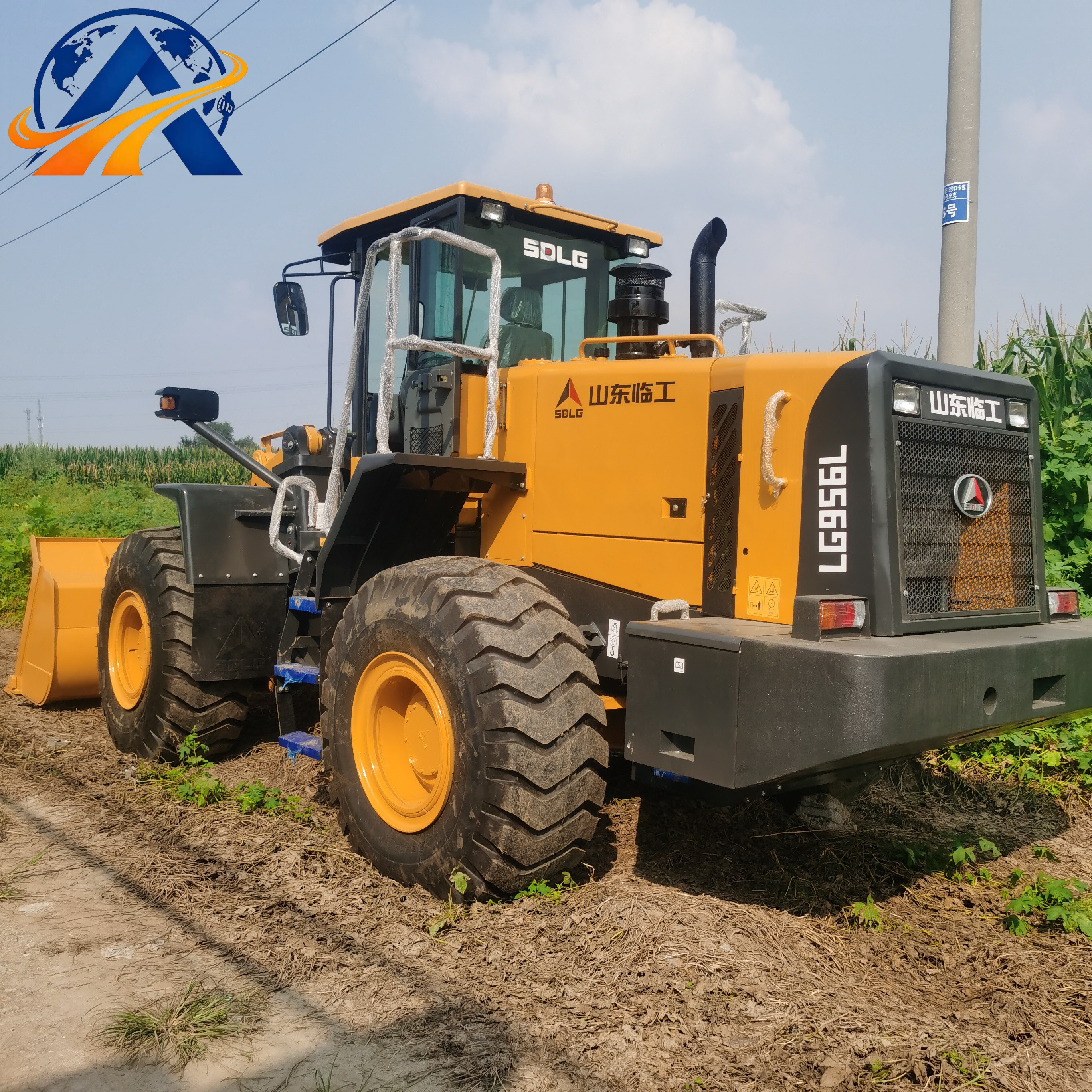

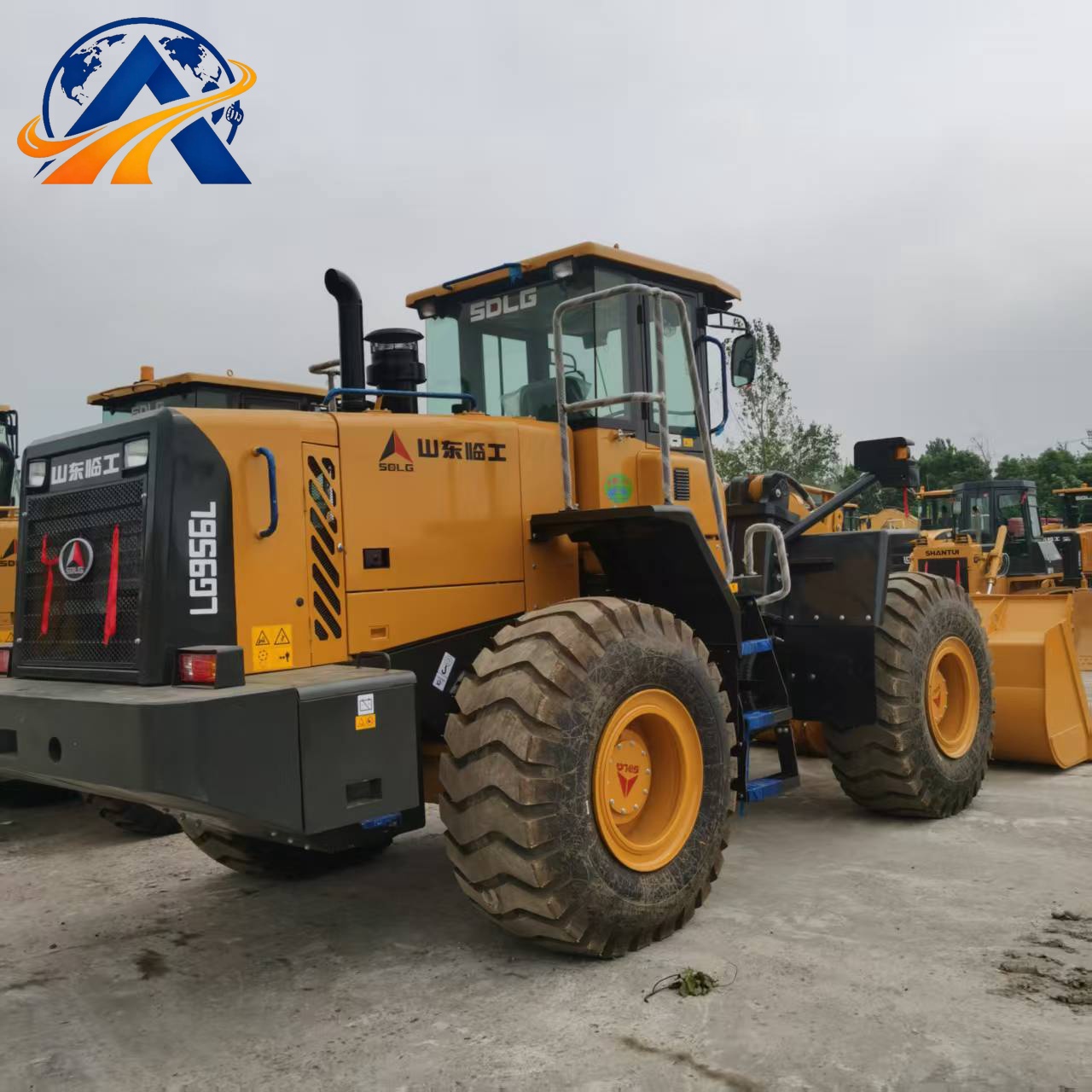

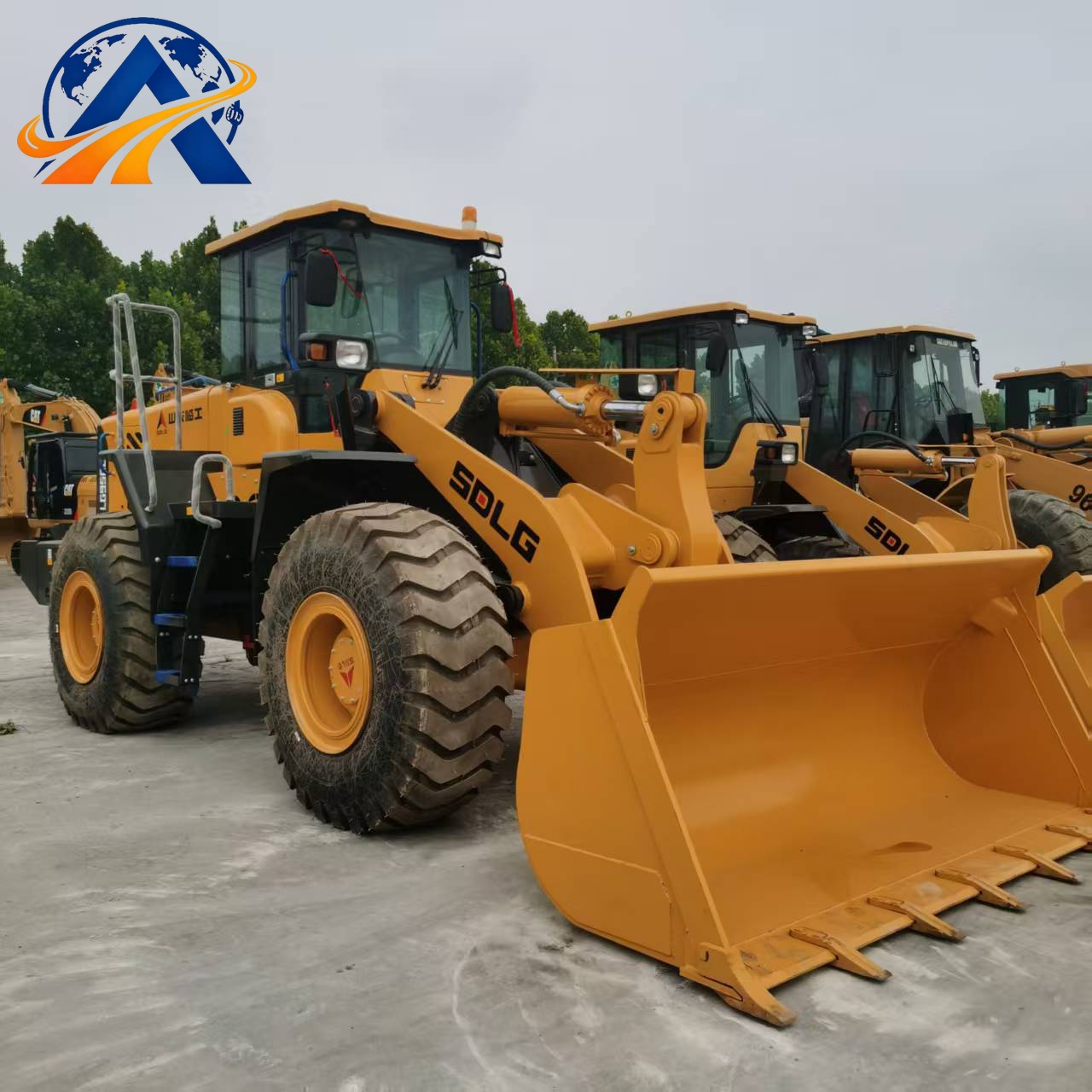

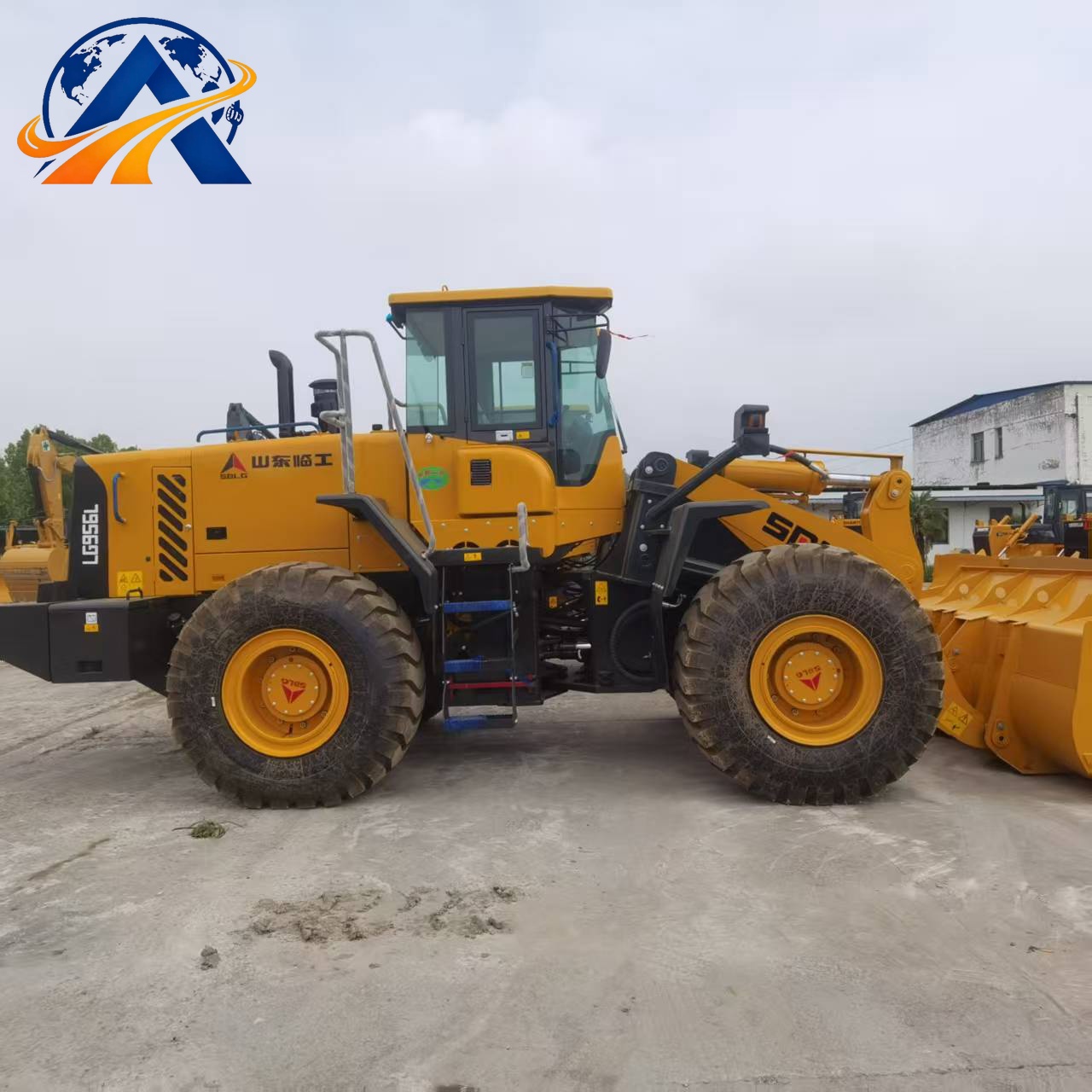

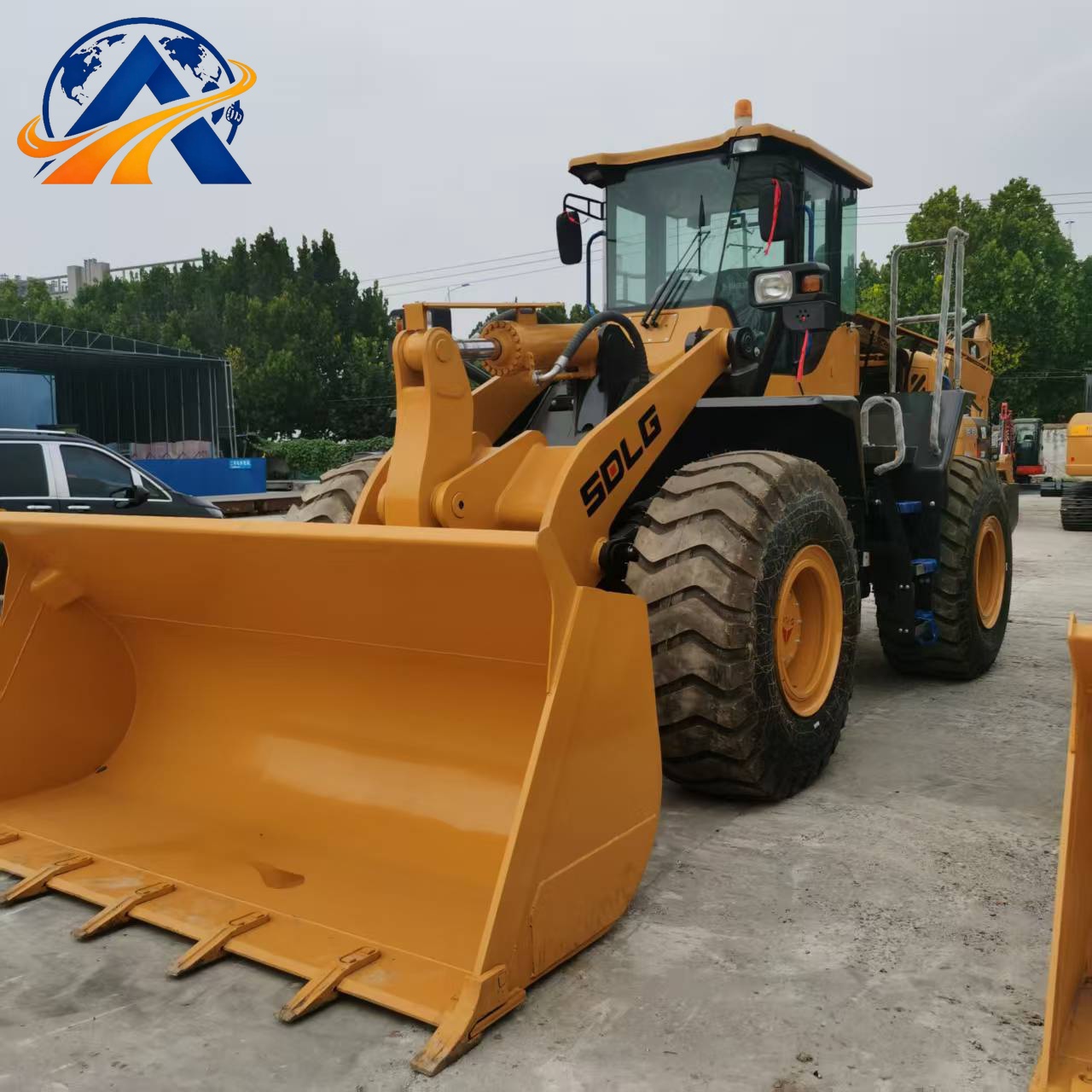

SDLG LG956L Wheel Loader
◉ PRODUCT PARAMETERS
Basic Machine Core Parameters
Load Performance
Rated load capacity: 5,000kg (5 tons)
Operating weight: 16,800kg
Standard bucket capacity: 3.0m³; Optional: 2.7/3.3/3.6m³ (sandstone / rock / coal bucket)
Maximum breakout force: 168kN; Full-turn tipping load: 12,200kg
Maximum traction force: 156kN
Overall Length, Width & Height
Overall length (bucket on ground): 8,170mm
Overall width (standard 23.5-25 tire): 2,970mm
Overall height (cab top): 3,420mm
Wheelbase: 3,200mm; Minimum turning radius (outer tire): 6,350mm
Standard dump height: 3,200mm; Dump reach: 1,120mm
Ground clearance: 440mm; Steering angle: 37° left & right each
Hydraulic Cycle Time
Lift time ≤5.0s; Bucket rollback time ≤2.4s; Lower time ≤1.9s
Total three-function cycle time ≤9.3s
Power System (National Stage IV Standard)
Standard Engine: Weichai WP10HG200 National Stage IV
6-cylinder in-line water-cooled, high-pressure common rail, turbocharged & intercooled
Rated power: 147kW / 200 hp @ 2000rpm
Maximum torque: 900N·m @ 1300rpm
Displacement: 9.5L
Fuel consumption: 13–16 L/h heavy load, 9–12 L/h light load
Aftertreatment system: DOC+DPF+SCR, no EGR, low maintenance cost
Optional Engine: Cummins QSB6.7
150kW / 204 hp, peak torque 950N·m, suitable for long-term heavy mining work
Transmission & Travel System
Transmission
SDLG self-made 4-forward & 4-reverse electronically controlled planetary power-shift transmission, proportional electric shift with heavy/light load mode; ZF fully automatic transmission optional
Travel speeds: 1st gear 6.8km/h, 2nd gear 12.6km/h, 3rd gear 20.8km/h, 4th gear 34.2km/h
Drive Axles
Reinforced 5-ton heavy-duty wet brake axles, large module gears, standard inter-axle differential lock for anti-slip on muddy ground
Tires

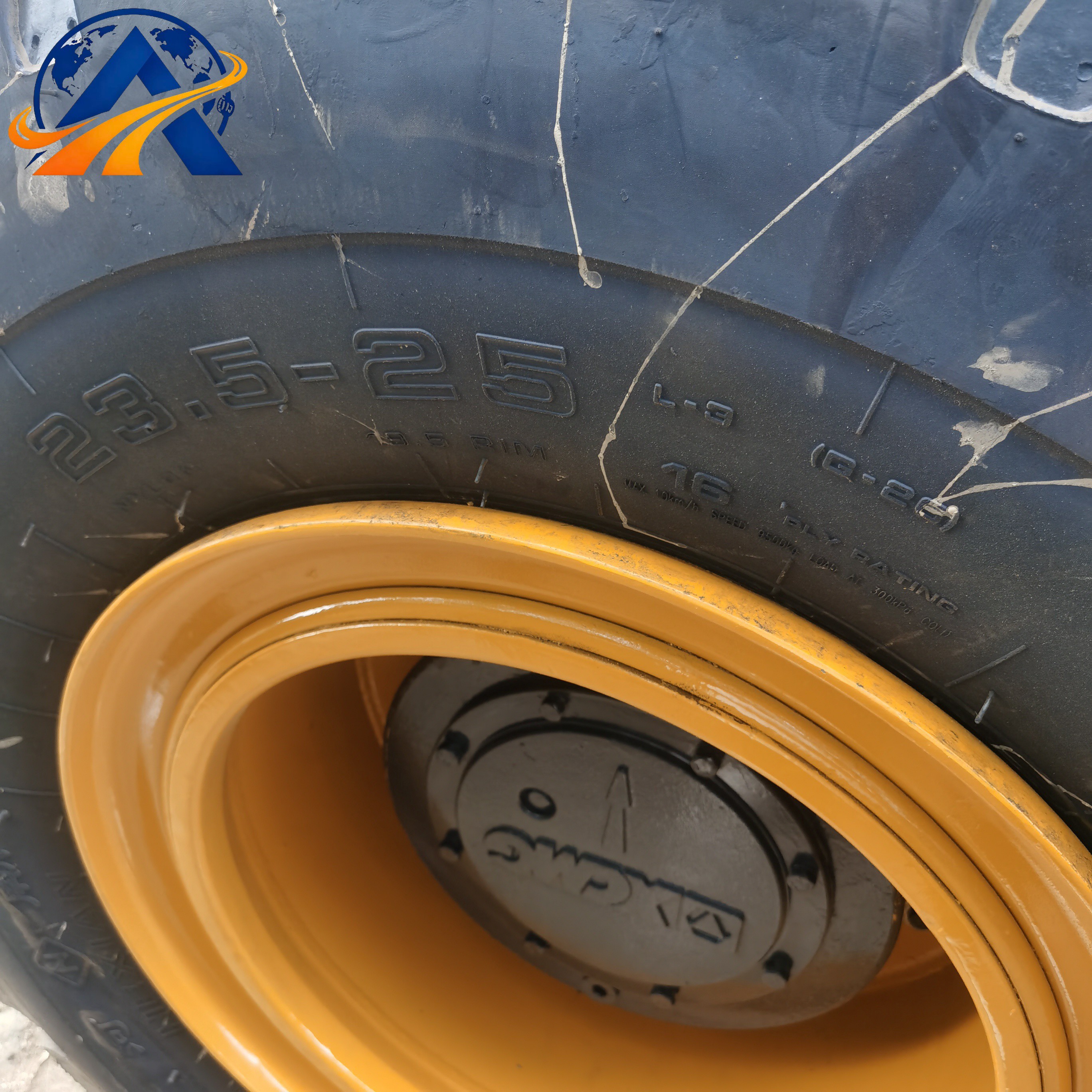

Standard: 23.5-25 L3 deep tread construction tires; Mining optional: L5 wear-resistant rock tires
Braking System
Service brake: 4-wheel full hydraulic wet disc brake; Parking brake: electro-hydraulic air cut-off brake to prevent sliding on slopes
Hydraulic System
Dual-pump combined variable hydraulic system, working pressure 20.5MPa
Standard single-lever pilot electronic control, thumb switch for high/low speed & lift stop limiter
Oversized independent hydraulic radiator, stable power without stall under high temperature
Standard centralized greasing system with grouped grease fittings for easy maintenance

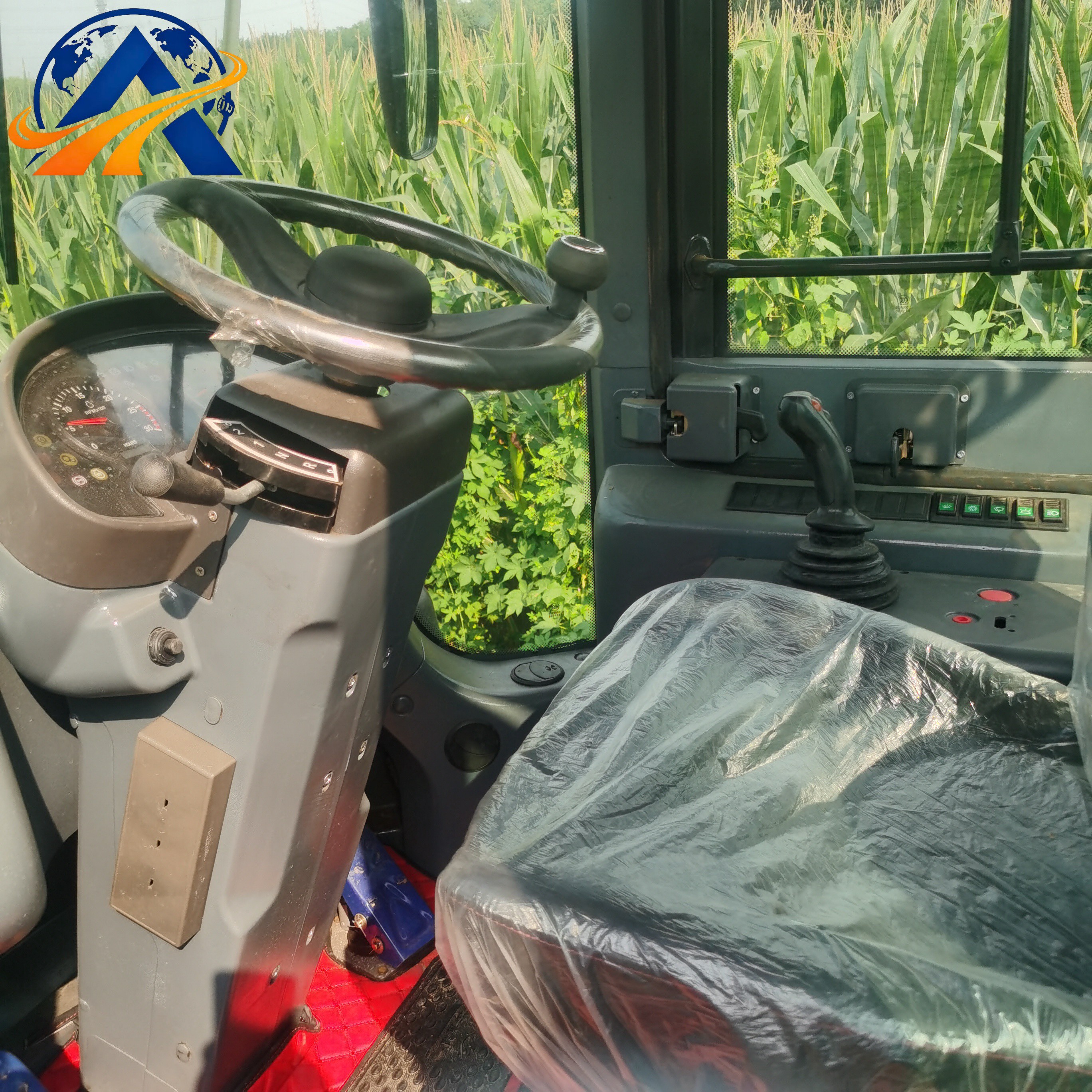

Cab & Human-Machine Configuration (Full Standard Equipment)
Pillar-free panoramic curved front windshield, ROPS/FOPS rollover & falling-object protection certified
Suspended shock-absorbing ergonomic seat, adjustable front/back & up/down, reclinable for rest
Factory heating & air conditioning, USB charging port, Bluetooth audio
7-inch color LCD dashboard: real-time fuel consumption, engine speed, water temperature, urea level, fault alarm display
Standard rearview camera + radar, full LED lights, intermittent windshield wipers
Multi-layer sound insulation design, interior noise ≤77dB(A)
Frame & Working Equipment
Thickened box-type welded front & rear frame, widened thickened hinge joint with strong torsion resistance
Reverse Z-linkage for unobstructed loading vision; thickened wear-resistant liners on boom and bucket lugs
All hydraulic cylinders equipped with built-in buffer and dust-proof covers; wear-resistant bucket teeth and side guards optional for rock operation
Integrated thick cast counterweight, no front lifting under full load with stable operation
Fuel Tanks & Maintenance
Diesel tank: 280L; Urea tank: 40L; Hydraulic oil tank: 240L

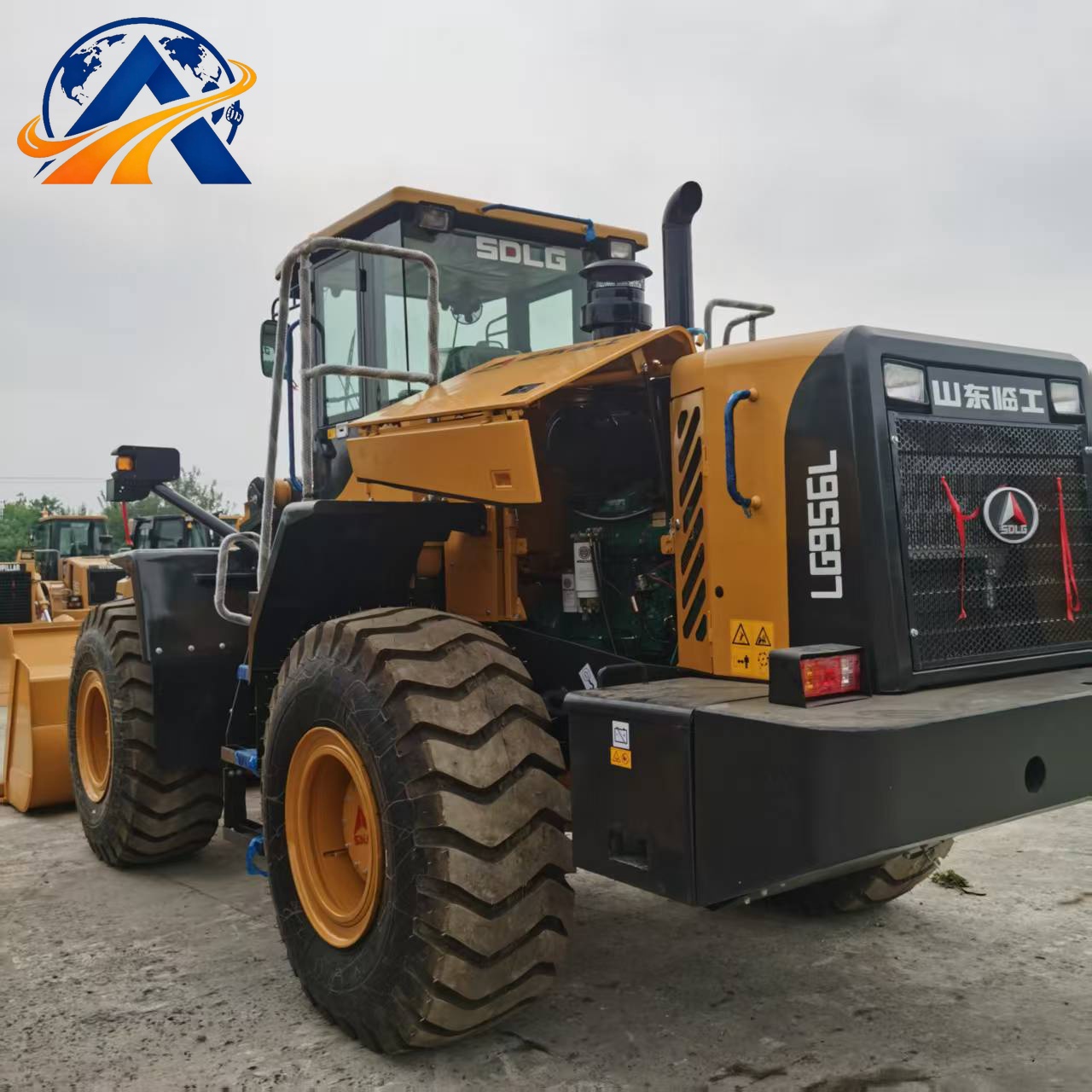

Large side engine hood supported by gas struts, air filter / engine oil filter / fuel filter arranged centrally on one side for easy inspection
Maintenance intervals: Engine oil replacement every 250h; Hydraulic oil every 1000h; Axle gear oil every 1000h
Standard & Optional Equipment List
Factory Standard Full Package
3.0m³ standard sandstone bucket, Weichai National Stage IV engine, 4-speed electronic transmission, pilot control lever, heating & air conditioning, rearview camera with radar, centralized lubrication, 23.5-25 tires, heavy-duty wet brake axles, LCD instrument panel, LED lamps, air cut-off parking brake
Upgraded Mining Heavy-Duty Optional Package
1. 3.6m³ wear-resistant rock bucket + high-manganese thickened bucket teeth
2. Cummins engine + ZF fully automatic transmission
3. L5 deep-tread mining wear-resistant tires
4. Wear protection steel plates for boom and bucket
5. Automatic timed greasing system, remote GPS fleet management
6. Extended boom (dump height +280mm, fit high truck bins & large silos)
7. Cab protective mesh, stone mudguards, underbody armor plate
