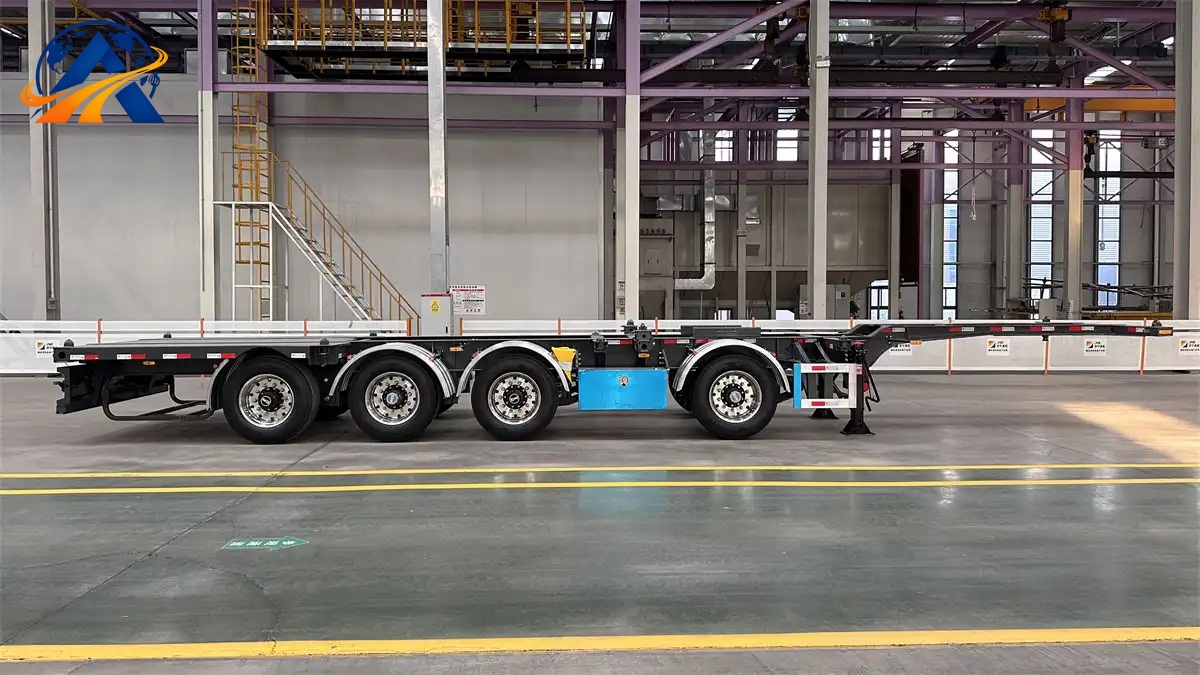

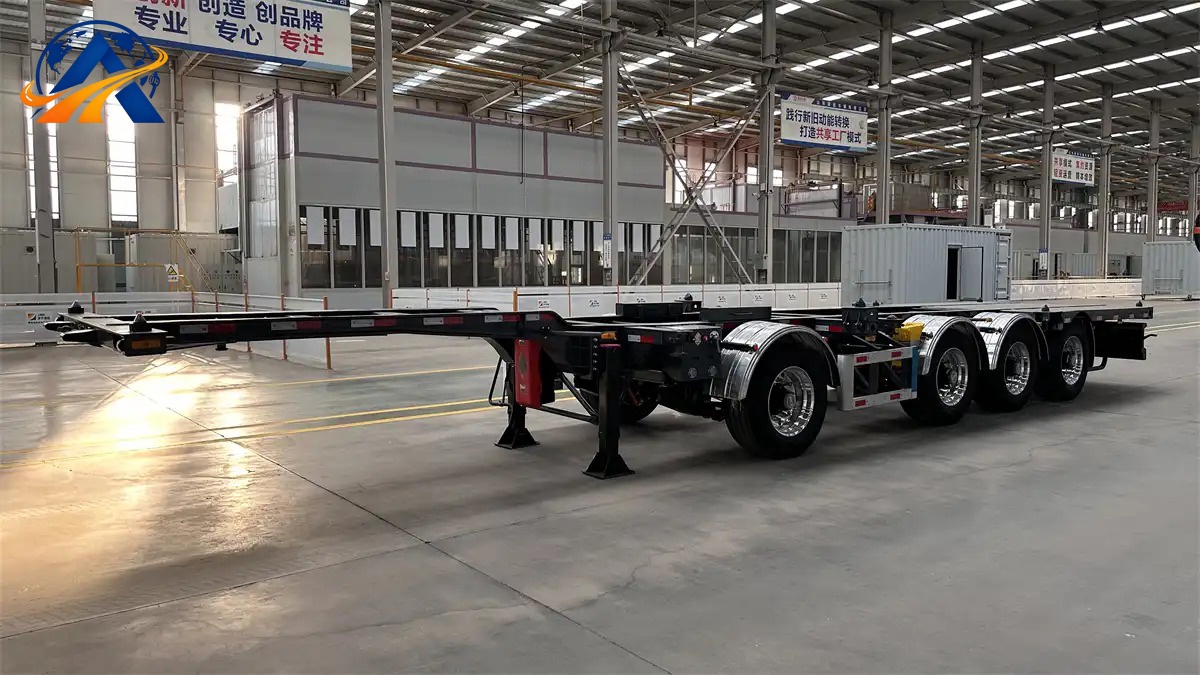

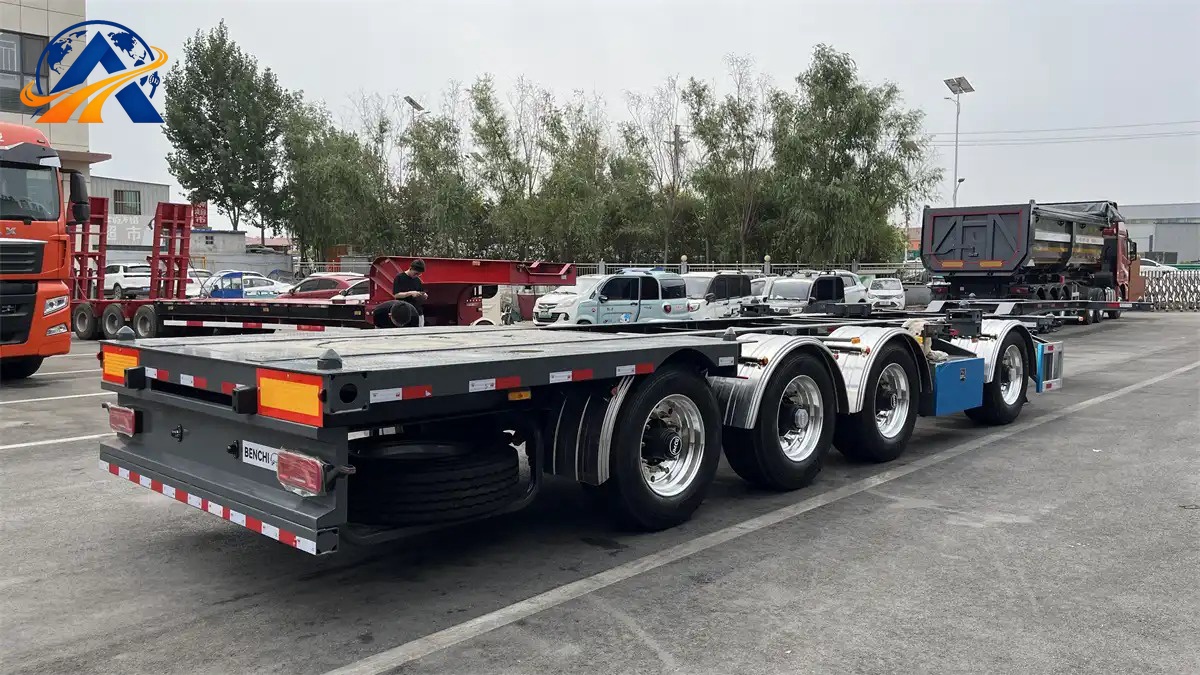

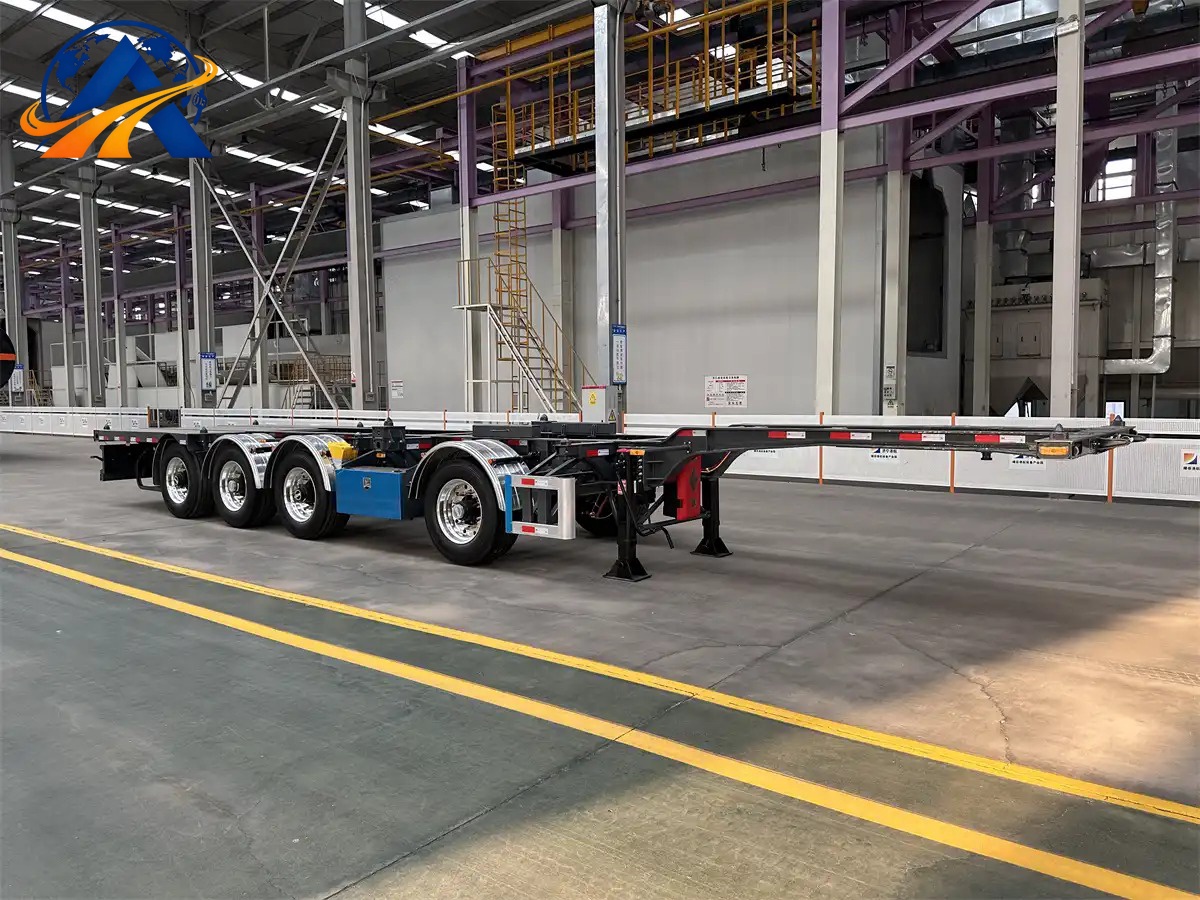

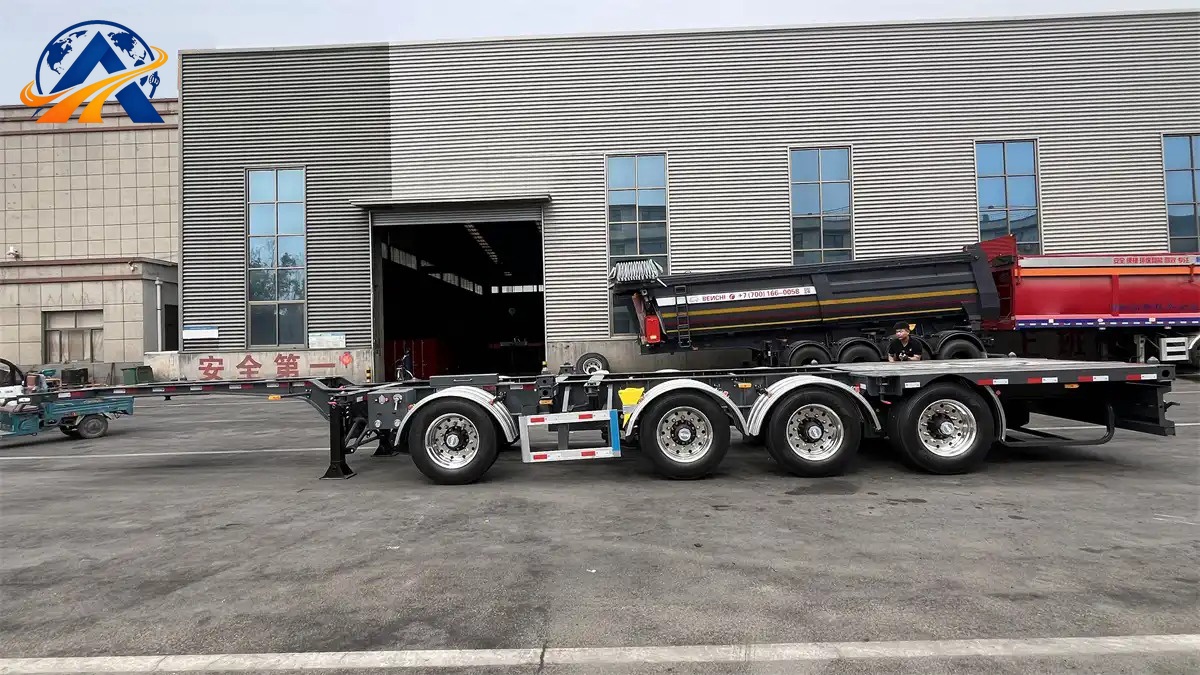

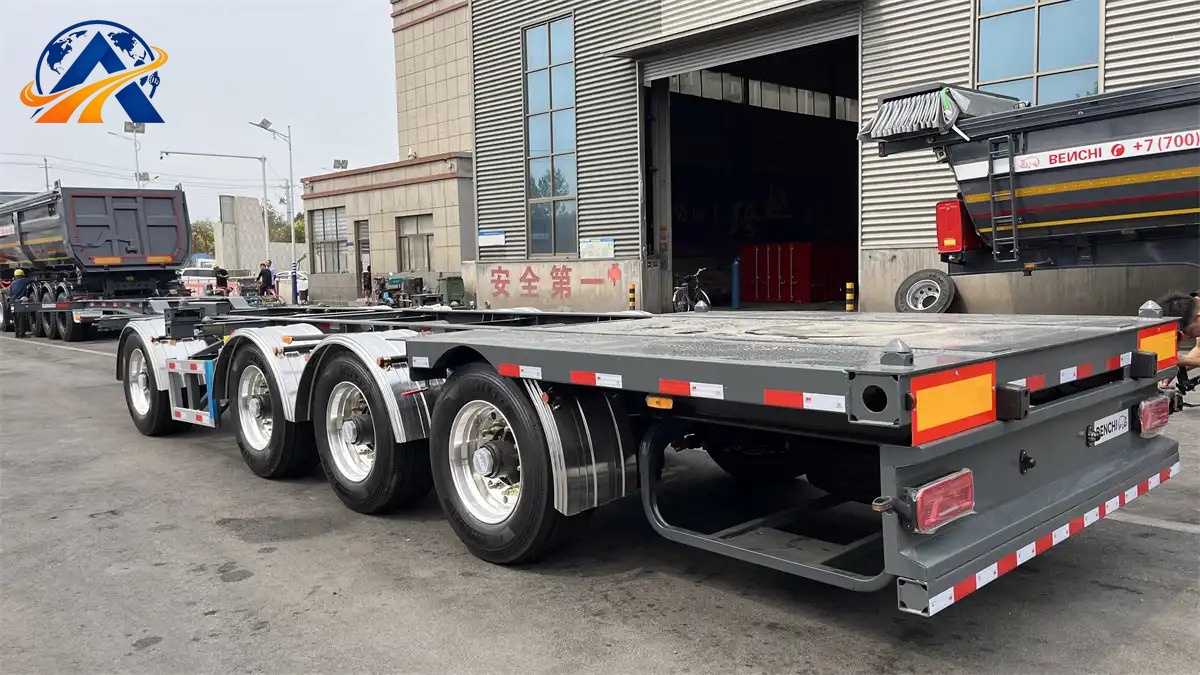

12m Tri-Axle Container Skeleton Semi-Trailer

Name: 12m Tri-Axle Container Skeleton Semi-Trailer
SKU: 0

+86 166 1556 9350

mikesun@lcytruck.com

+86 166 1556 9350

Contact Us

◉ PRODUCT PARAMETERS

1. Overall Dimensions
- Overall dimension: **12400 × 2500 × 1550 mm (12.4m × 2.5m × 1.55m)**
- Fifth wheel height (kingpin height from ground): **1550 mm**
- Wheelbase: **6880 +1310 +1310 mm**
- Track width: **1820 mm**
- Front overhang: 1250 mm; Rear overhang: 2050 mm

2. Weight Parameters
- Tare weight: **6.5~7.0 tons** (lightweight version can reach 5.8 tons)
- Rated load capacity: **34 tons**
- GVWR (Gross Vehicle Weight Rating): **40 tons**
> Heavy-duty reinforced version can be customized up to 60 tons GVWR upon client request

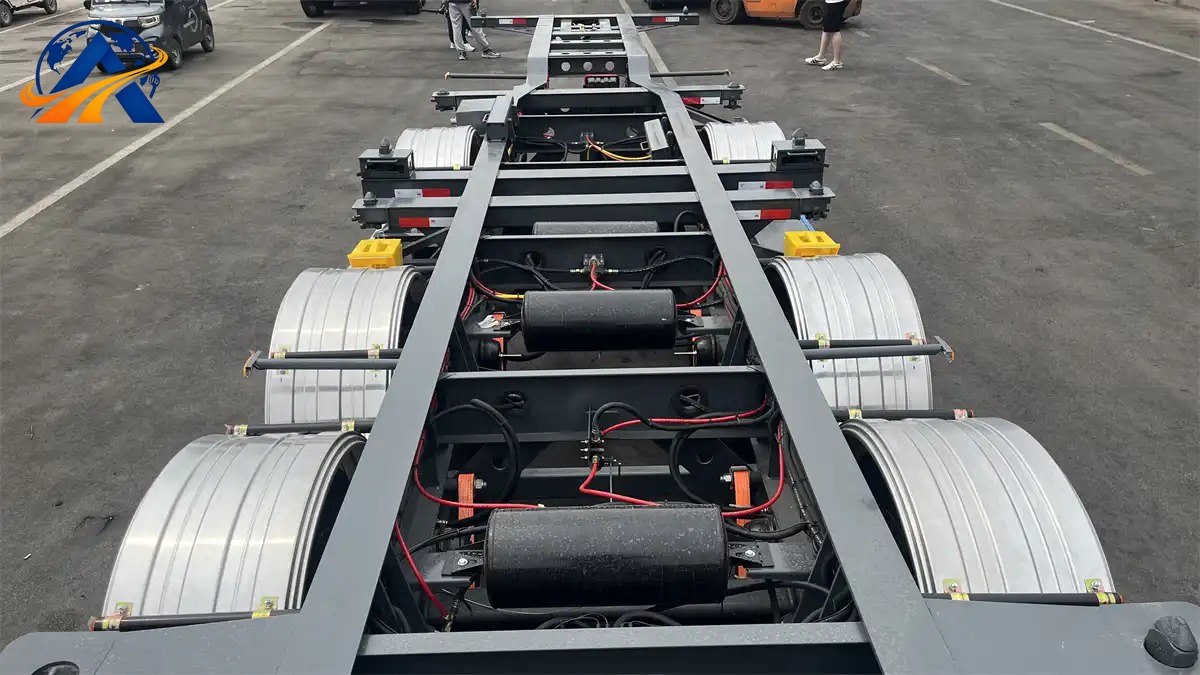

3. Main Chassis Structure
- Main beam height: **500mm I-beam**
- Material: Q345B high-strength steel
- Flange plate: Top flange 14mm, web plate 8mm, bottom flange 16mm
- Cross members: 16# channel steel, spaced arrangement
- Coating: Sand blasting + epoxy primer + topcoat

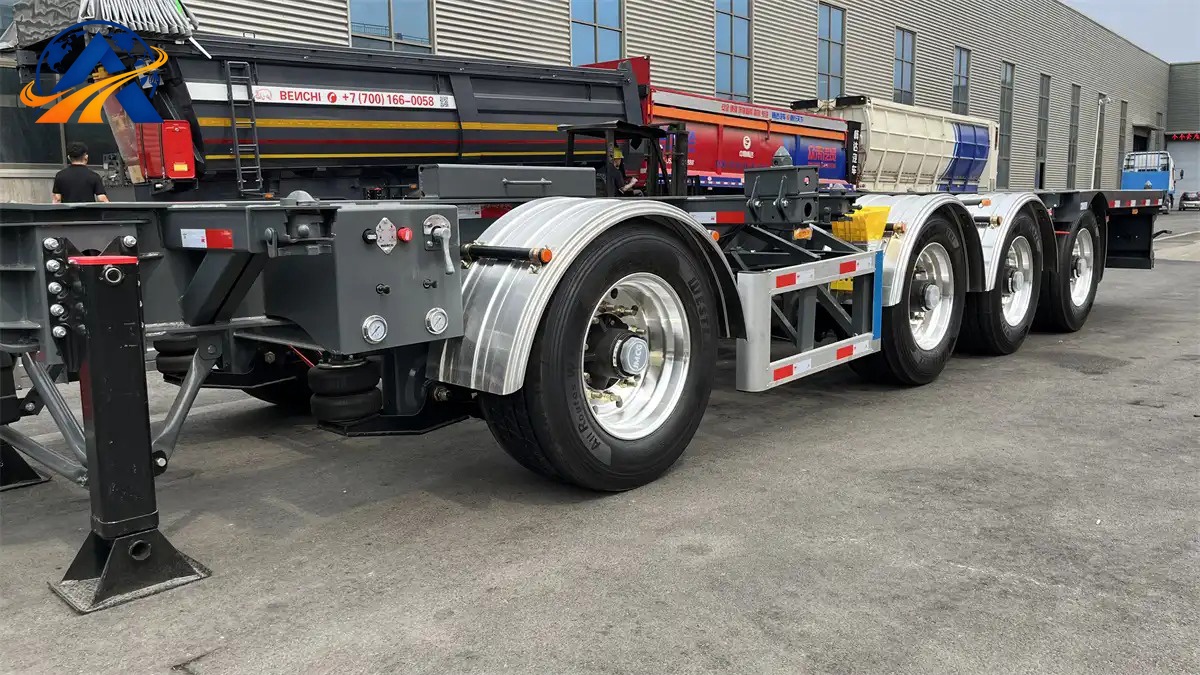

4. Running Gear

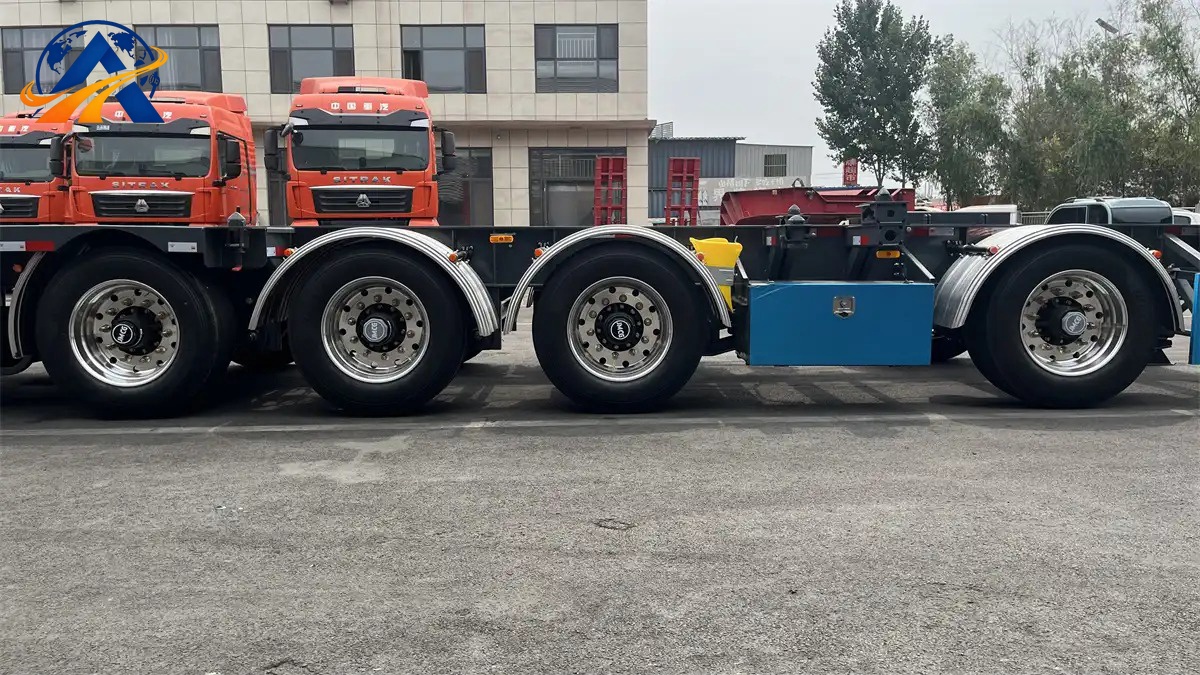

1. **Axles**: Tri-axle, FUWA 13-ton grade (standard for export; BPW optional)

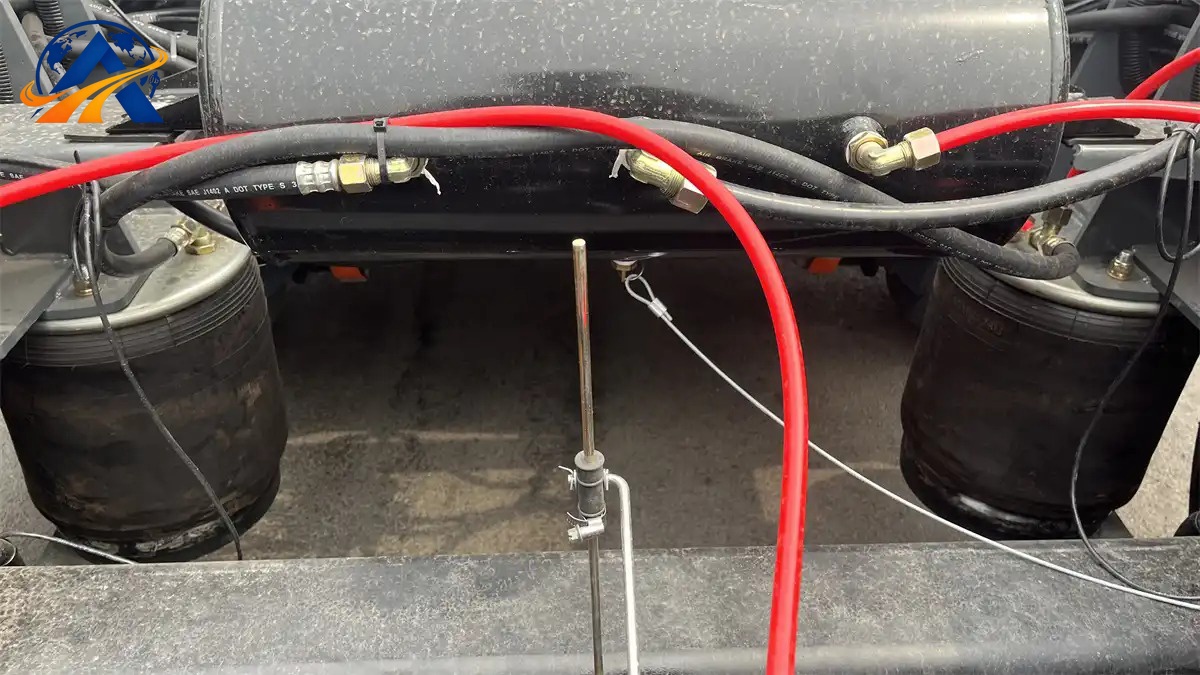

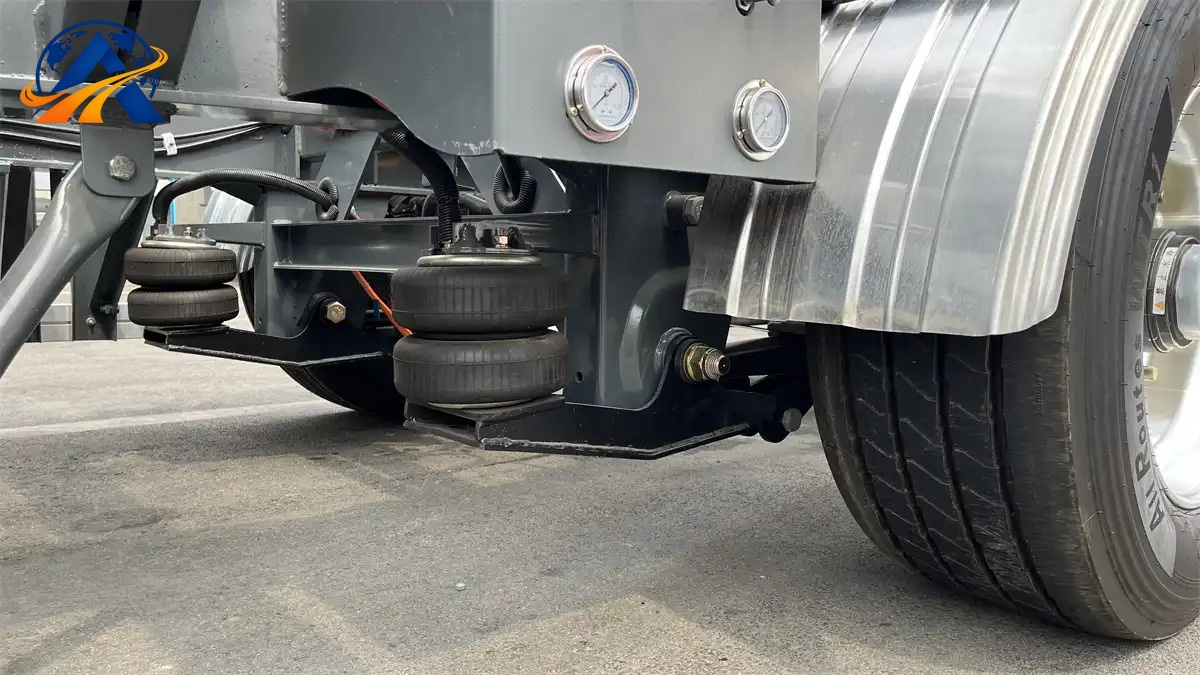

2. **Suspension**: Mechanical leaf spring suspension; leaf spring 90mm width ×10 pieces (air suspension available as custom option)

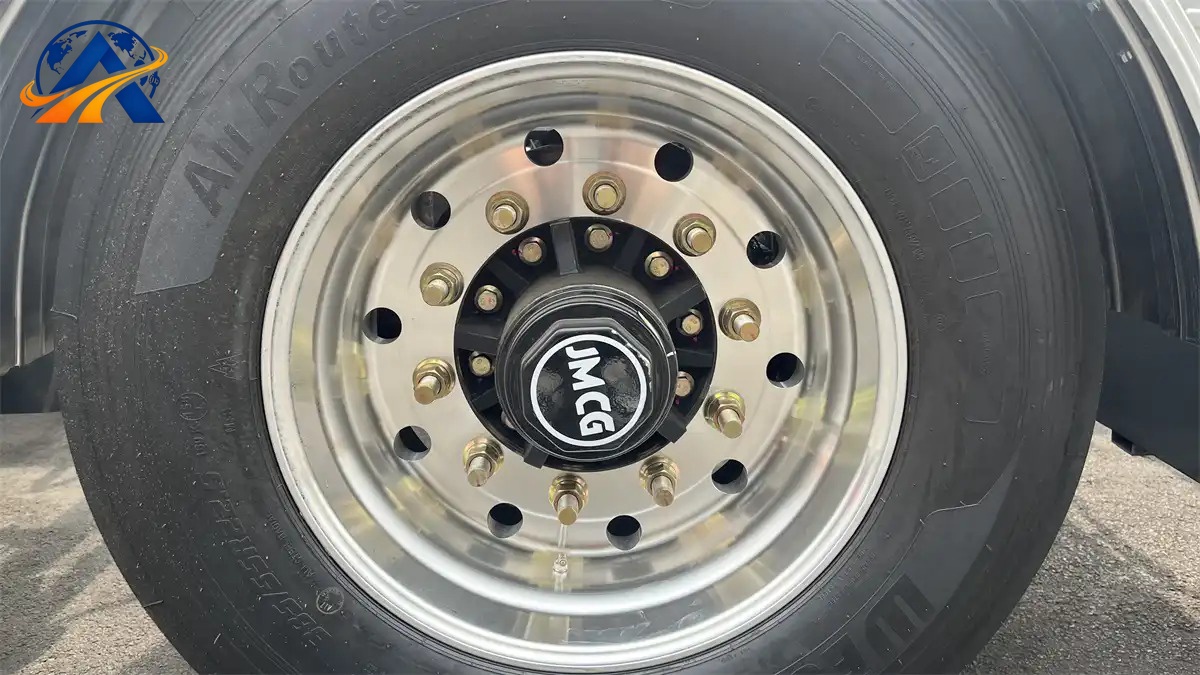

3. **Tires**: 12 pcs, **12R22.5**; steel rim 9.00-22.5; alternative size 315/80R22.5
4. **Landing Gear**: 28-ton two-speed landing gear (JOST brand optional)

5. Towing & Locks (Key for Overseas Export)

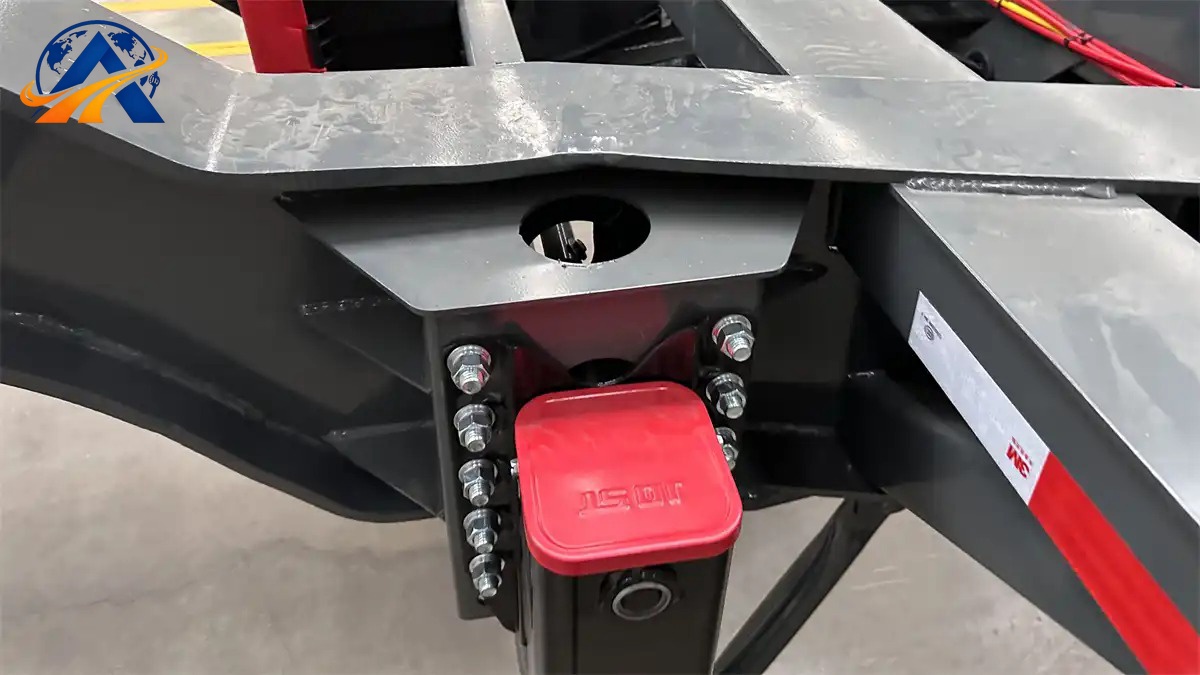

- **King Pin**: **3.5 inch (popular for Africa & Southeast Asia), 2 inch optional**; bolt-on detachable design, convenient for CKD export

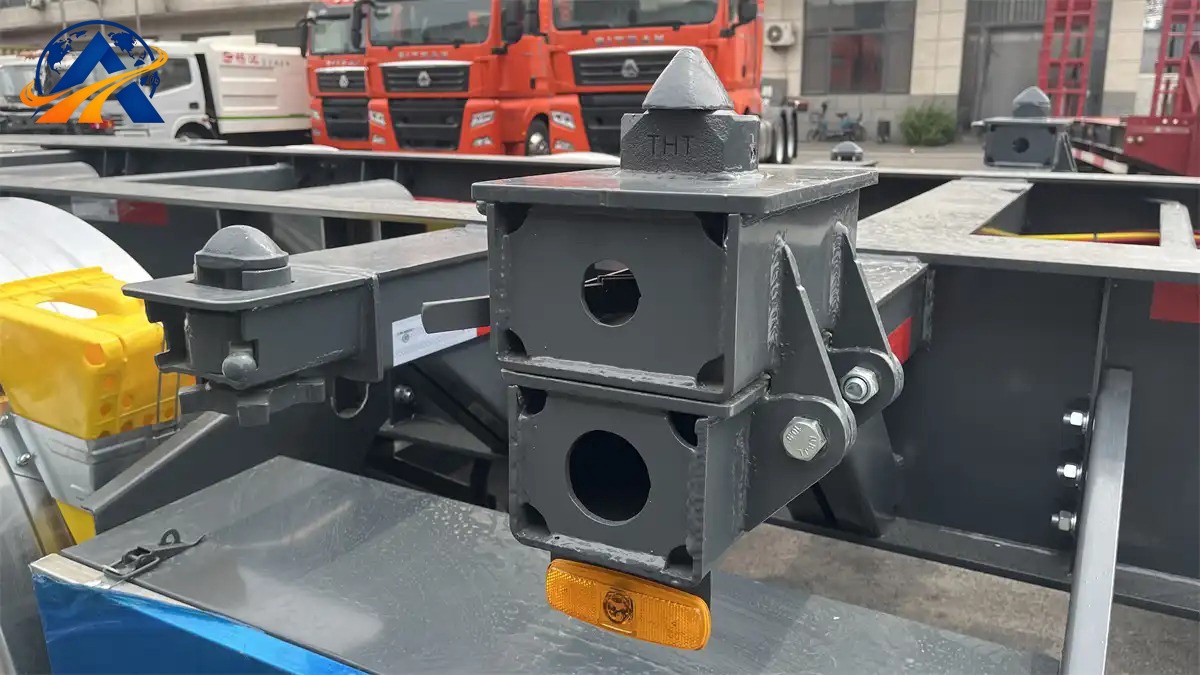

- Twist locks: **12 sets (4 fixed + 8 retractable)**，compatible with 1×40ft container or 2×20ft containers simultaneously

6. Braking & Electrical System

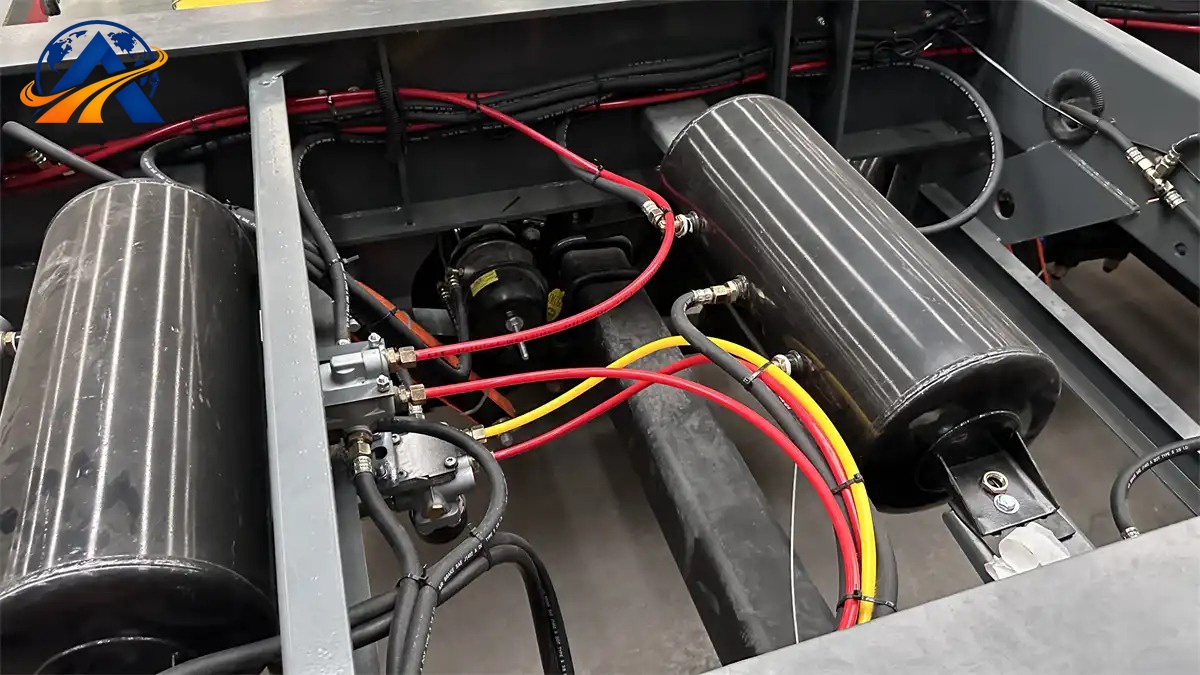

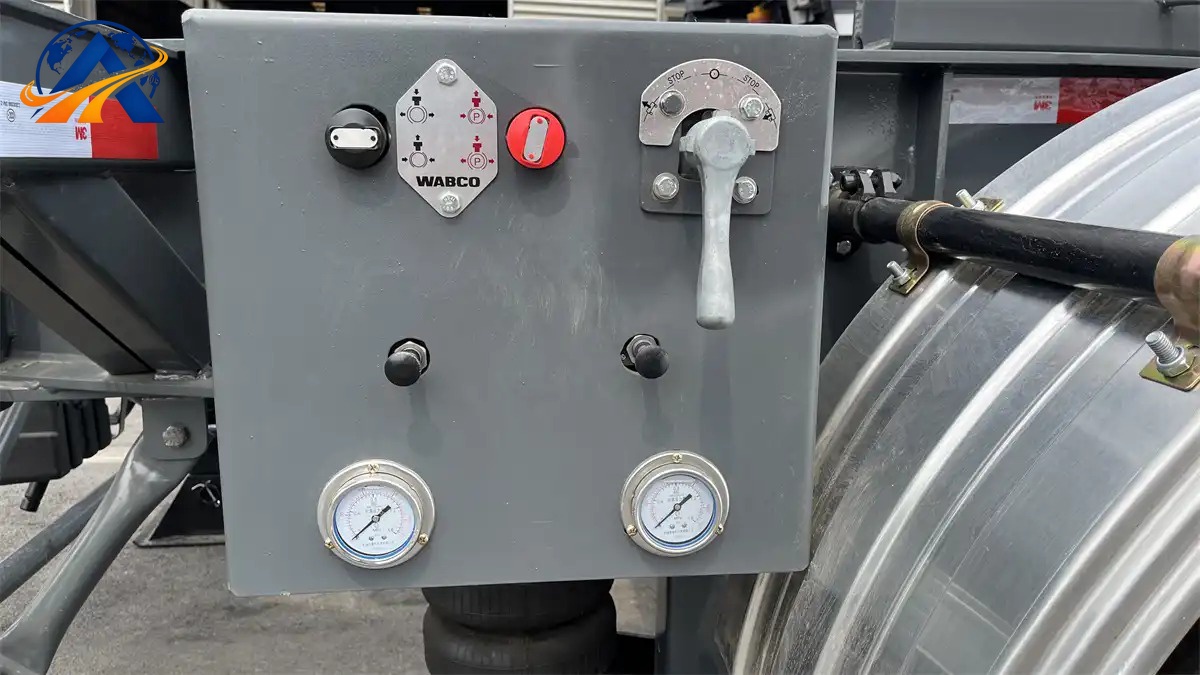

- Braking system: Dual-line air brake, WABCO valve assembly, T30/30 brake chambers, equipped with **ABS** (mandatory for export)
- Air tank: 40L

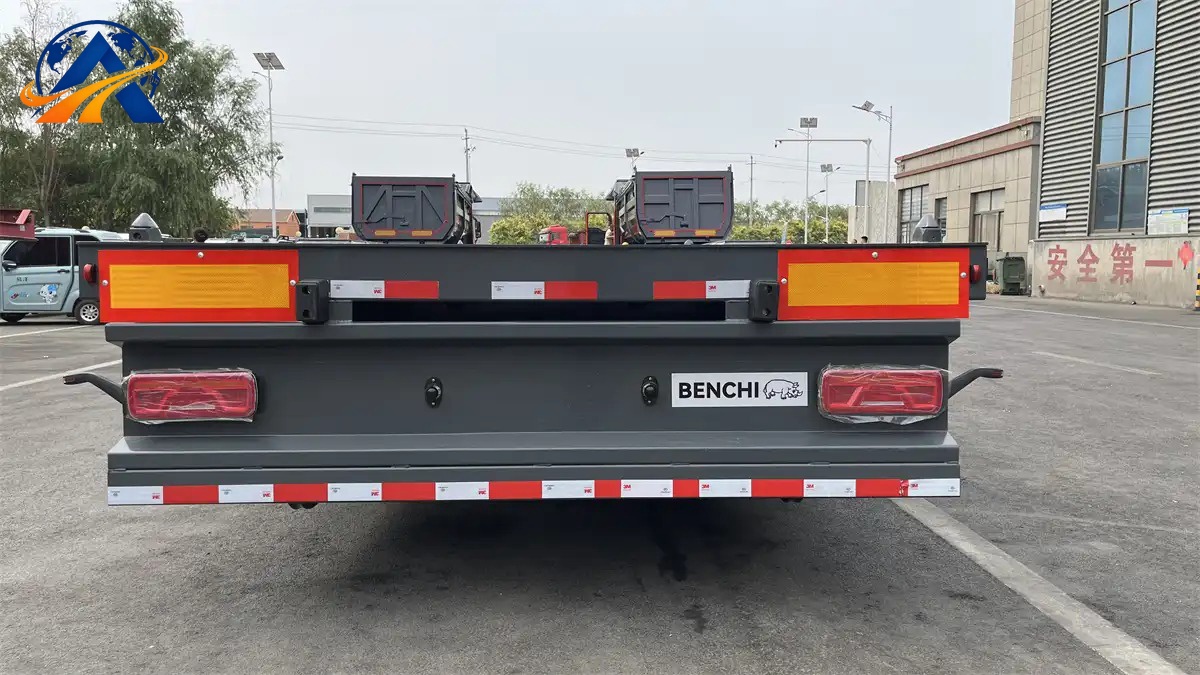

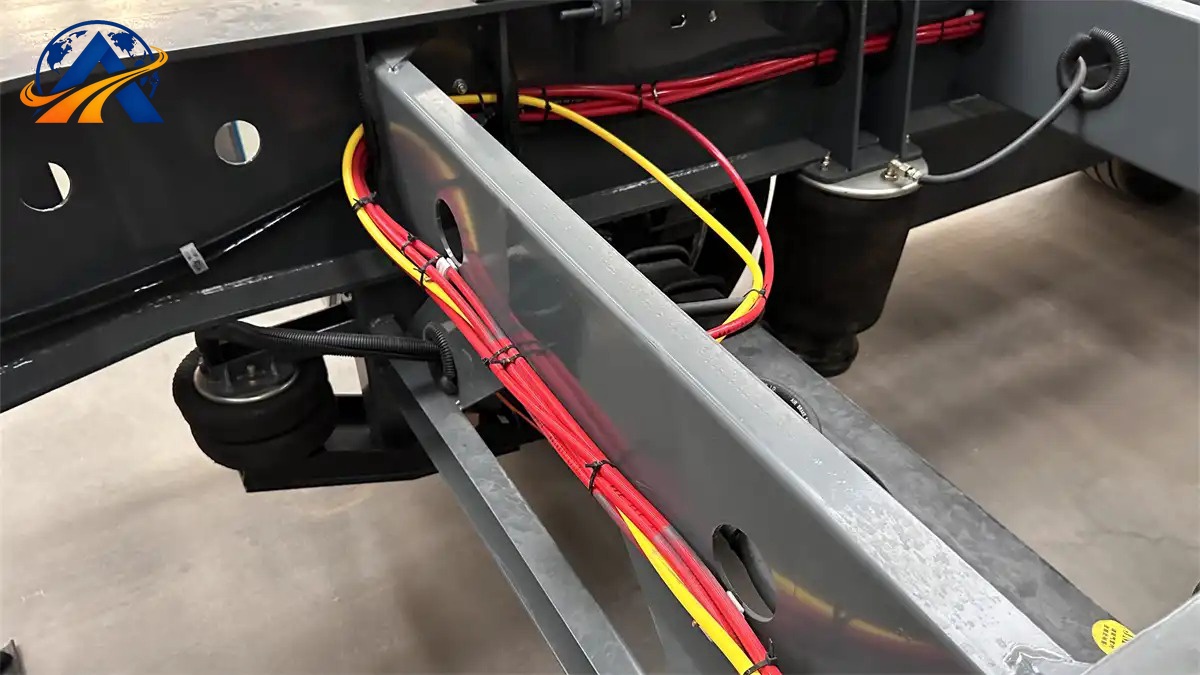

- Electrical system: 24V, tail lamps, reflective markings, side marker lamps, compliant with export ECE/GCC standards

◉ FAQ

Q： What types of vehicles do you supply?

A：

We supply a wide range of heavy-duty commercial vehicles, including dump trucks, tractor heads, water tank trucks, special-purpose vehicles, semi-trailers and other transportation and construction equipment.

Q： How do I choose the right truck configuration?

A：

The right configuration depends on your cargo, road conditions, load requirements and application. Our team can recommend suitable configurations such as 4×2, 6×4 and 8×4 based on your specific requirements.

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
