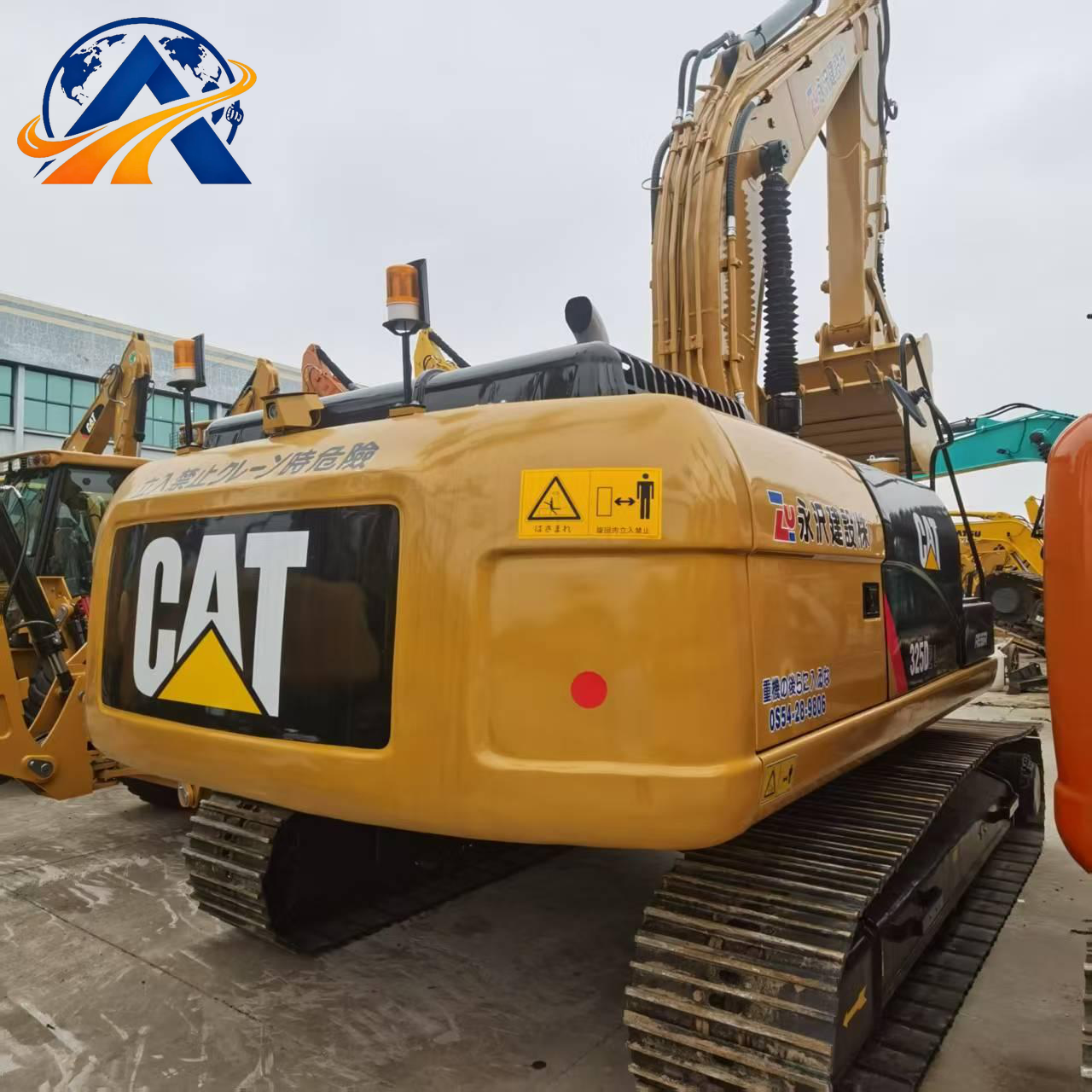

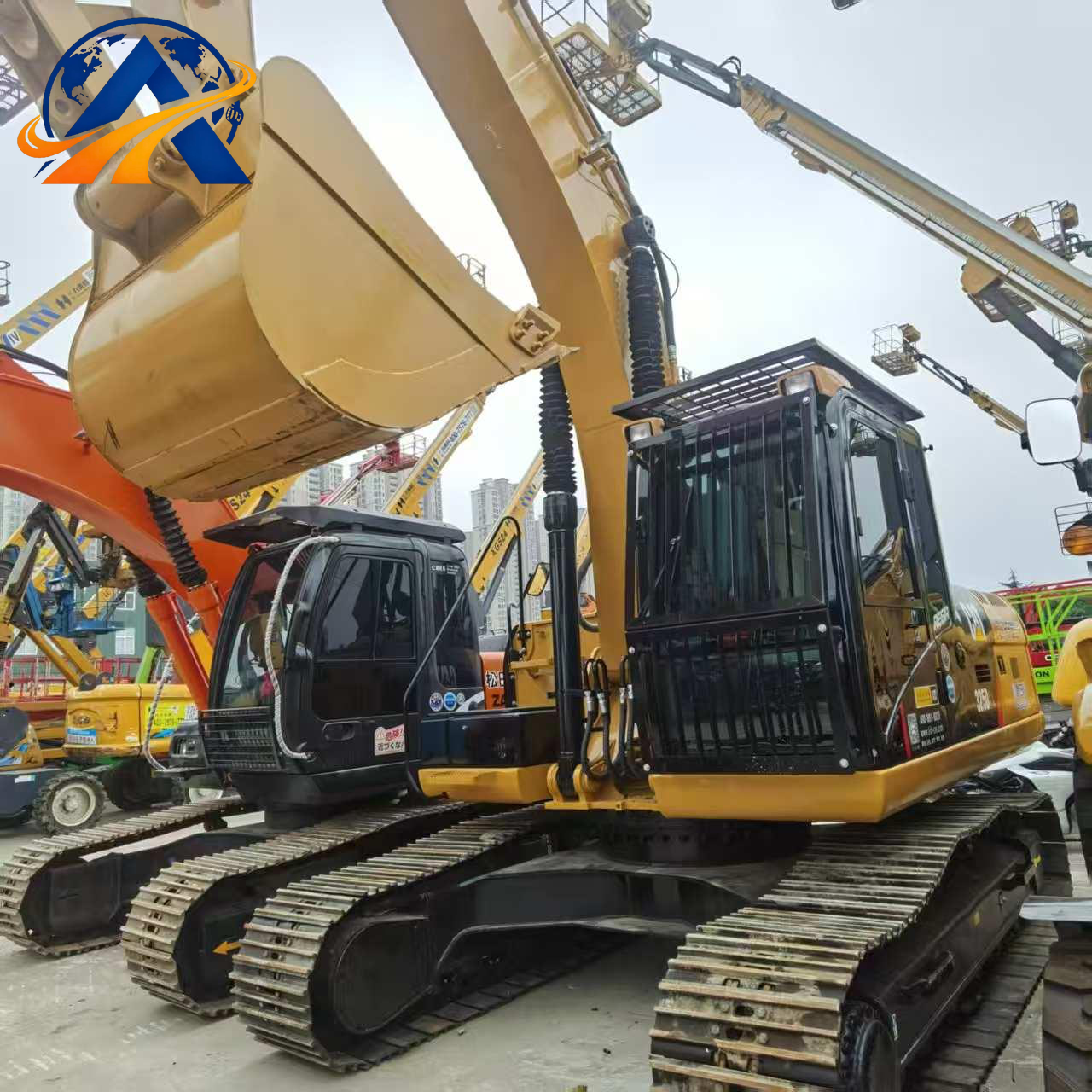

Caterpillar 325D Crawler Hydraulic Excavator

Name: Caterpillar 325D Crawler Hydraulic Excavator
SKU: 0

+86 166 1556 9350

mikesun@lcytruck.com

+86 166 1556 9350

Contact Us

◉ PRODUCT PARAMETERS

Item	Specification
Model	Caterpillar 325D Medium Heavy-Duty Crawler Hydraulic Excavator
Operating Weight	29.24 Ton
Engine	Cat C7 ACERT 6-cylinder turbo diesel engine, net power 140kW/188HP, Tier 2 emission, low fuel consumption & long service life
Standard Bucket Capacity	1.1m³ general-duty digging bucket
Undercarriage	Reinforced long track frame, 600mm triple-grouser track shoes, 9 track rollers each side, stable for heavy earthmoving
Core Digging Parameters	Max digging depth:7340mmMax ground reach:10450mmBucket breakout force:148kN
Hydraulic System	Dual variable piston main pumps, max working pressure 35MPa, boom & stick flow regeneration, factory pre-installed breaker auxiliary lines
Travel Performance	Two-speed automatic shift, max travel speed 5.7km/h, 35° climbing ability
Swing System	Swing speed 10.2rpm, built-in swing buffer, stable low-vibration rotation
Operator Cabin	ROPS/FOPS safety cab, air suspension seat, factory air conditioning, LED work lights, multi-functional monitoring display
Tank Capacity	Fuel tank: 460L; Hydraulic tank: 257L
Overall Dimension	L10410mm × W2990mm × H3180mm
Machine Condition	Original machine without major overhaul, no oil/water leakage, fully maintained, ready for container export
Standard Accessories	Original standard digging bucket, complete service tool kits, full set of maintenance filter consumables
Optional Attachments	Hydraulic breaker, log grapple, heavy rock bucket, 700mm wide track shoes, extended boom & stick

◉ FAQ

Q： What types of vehicles do you supply?

A：

We supply a wide range of heavy-duty commercial vehicles, including dump trucks, tractor heads, water tank trucks, special-purpose vehicles, semi-trailers and other transportation and construction equipment.

Q： How do I choose the right truck configuration?

A：

The right configuration depends on your cargo, road conditions, load requirements and application. Our team can recommend suitable configurations such as 4×2, 6×4 and 8×4 based on your specific requirements.

Q： What is the warranty period for the equipment?

A：

One-year warranty for the entire machine; two-year warranty for core hydraulic and powertrain components; lifetime paid maintenance.

Q： Do you offer custom modifications for construction vehicles?

A：

Supports comprehensive customization of attachments, powertrain, appearance, and operating specifications, and includes the provision of modification drawings.

Q： Do you provide on-site setup, maintenance, and repair services for locations outside the local area?

A：

Nationwide coverage with no blind spots; engineers dispatched to remote projects on an as-needed basis.

Q： Can the equipment be exported overseas?

A：

Possesses full qualifications for overseas operations and can handle all export formalities on your behalf.
