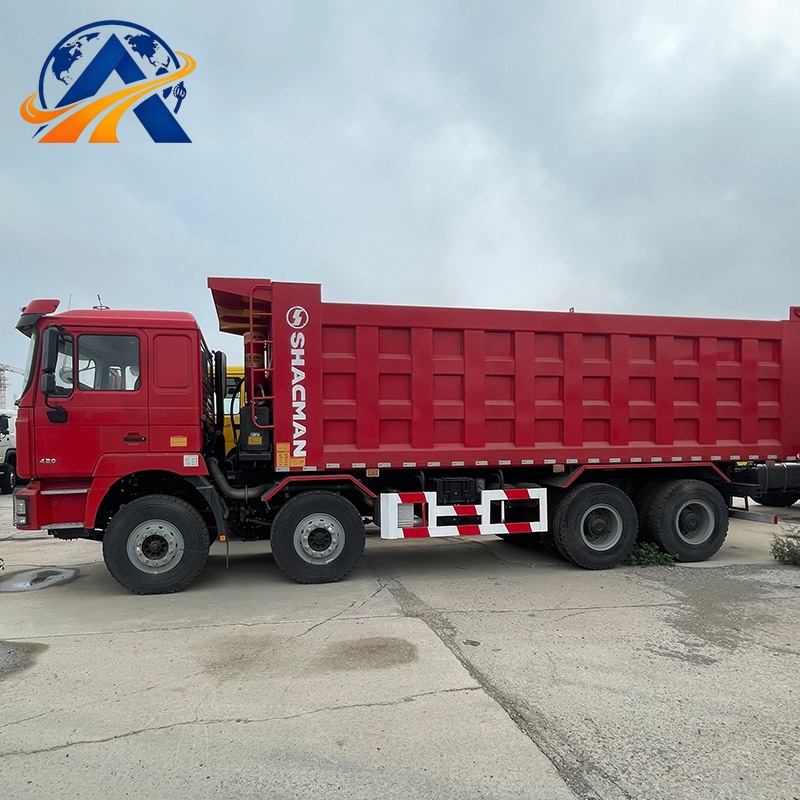

SHACMAN F3000 6×4 Dump Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 8621mm × Width 2490mm × Height 3450mm, Curb Weight 12500kg (standard chassis + mining cargo box, excluding all optional accessories)

I. Standard Configuration
Powertrain
Equipped with Weichai WP10/WP12 inline six-cylinder turbocharged intercooled diesel engine, displacement 9.726L, rated net power 247kW/336HP ~ 276kW/375HP, peak torque 1750N·m, mechanical direct injection / high-pressure common rail optional, Euro II/Euro III/Euro V emission standards compatible with low-grade fuel for African mines. Matched with Fast 10JSD180 10-speed heavy-duty manual transmission with standard QH50 tipper dedicated PTO. Hydraulic power steering, front & rear drum air brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Hand 16-ton double reduction tandem rear axles equipped with inter-axle & wheel differential lock; braking system complies with overseas mining commercial vehicle safety norms.

Hydraulic & Auxiliary System

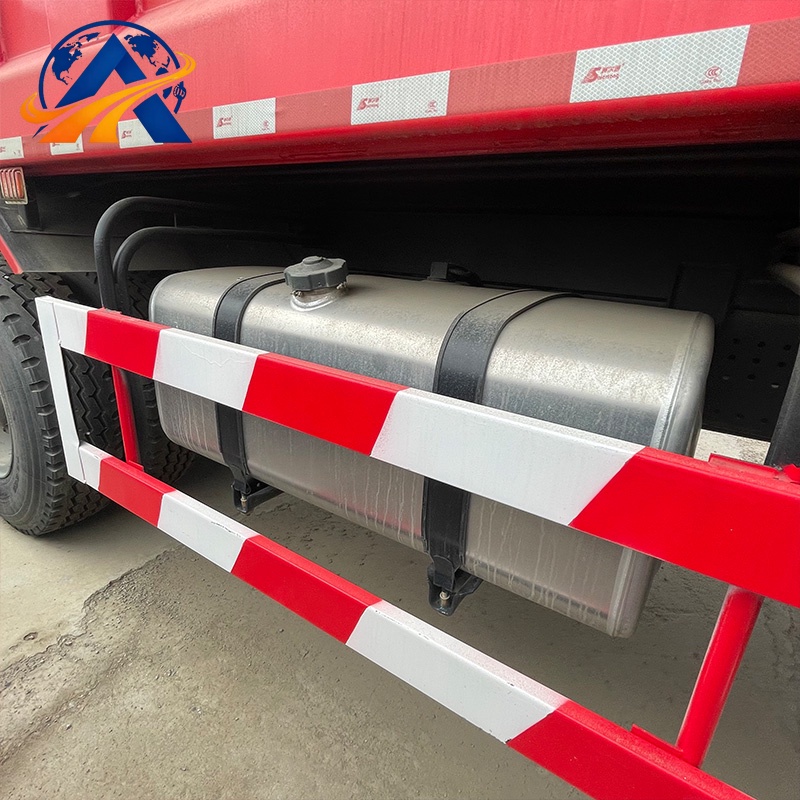

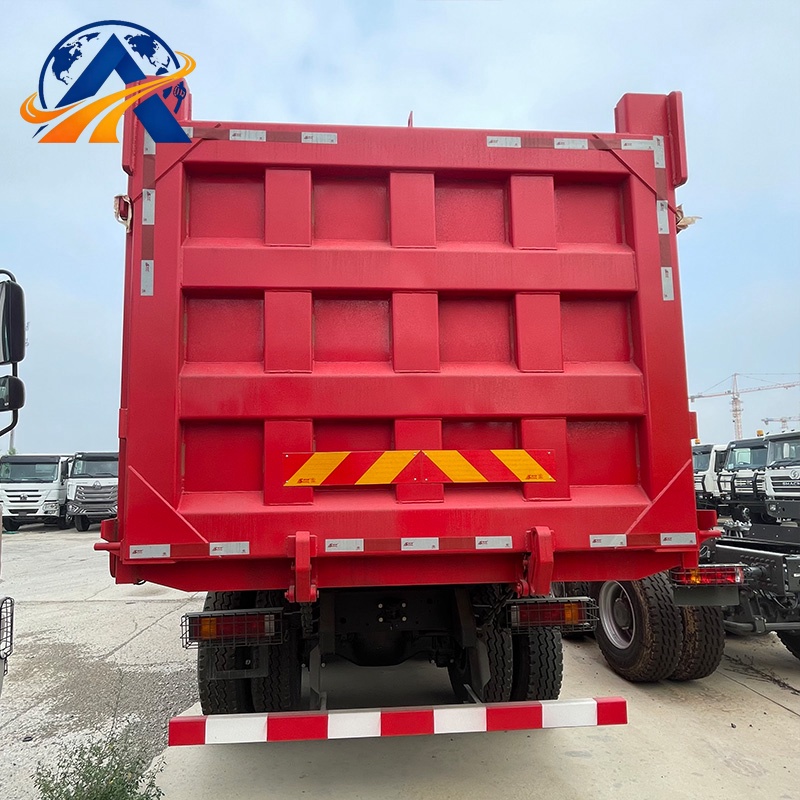

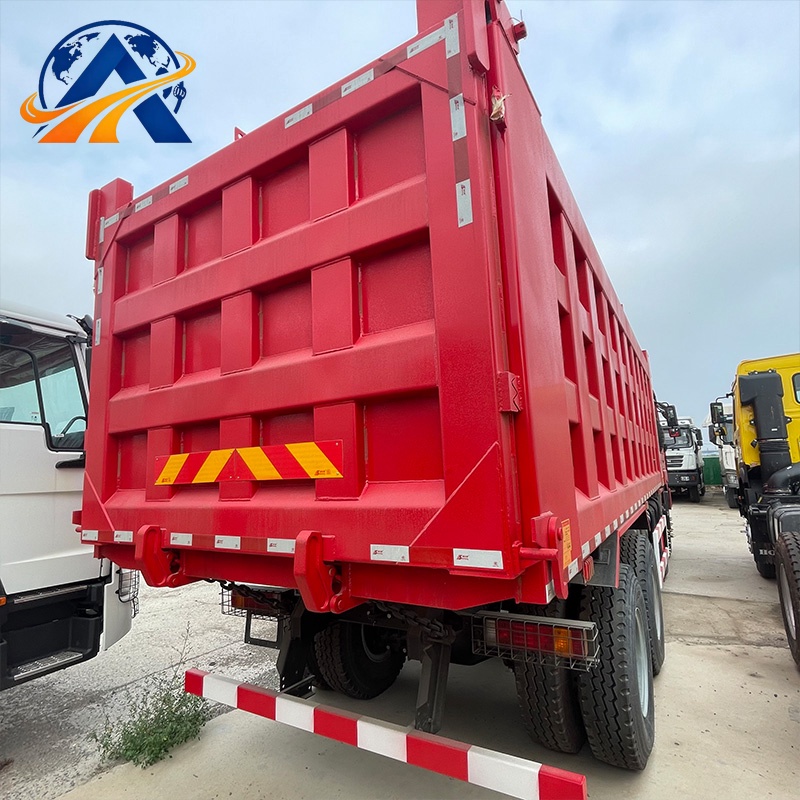

Hydraulic power steering system with 12L steering oil tank; dual high-position air reservoirs with automatic drain valves. Standard complete set of front-mounted heavy-duty lifting hydraulic cylinder with independent high-flow lifting oil circuit. Three-stage oil-bath oil-water separation air filter for whole air circuit with real-time air pressure monitoring alarm. Mining U-type cargo box dimension: 5800×2300×1450mm, wear-resistant manganese steel with 8mm-thick floor and 6mm-thick side plates, single 400L aluminum fuel tank. Euro V version equipped with 40L urea tank, no urea tank for Euro II/Euro III models.

Chassis & Cab Configuration

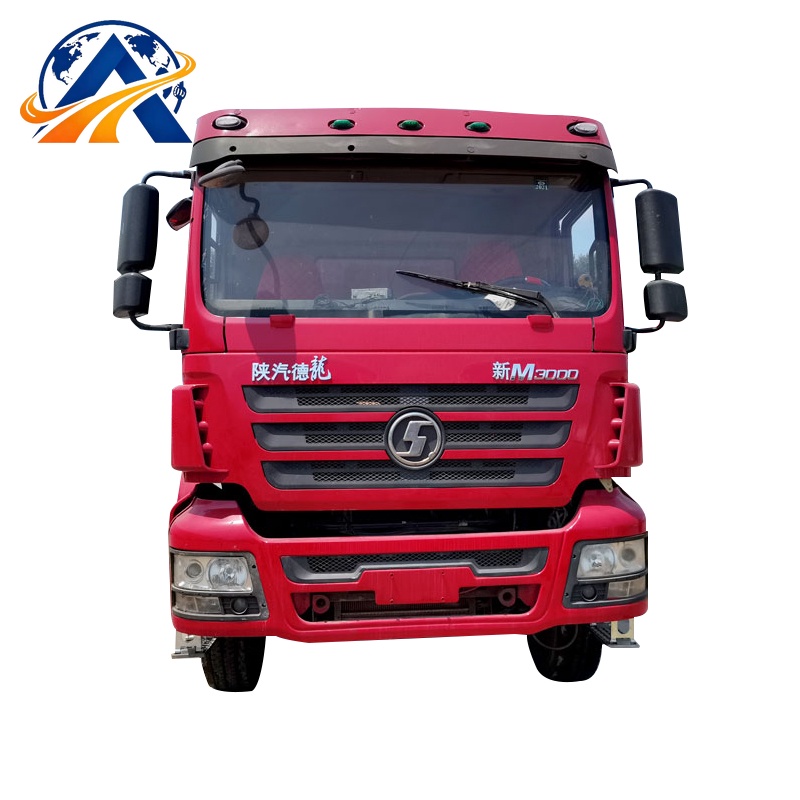

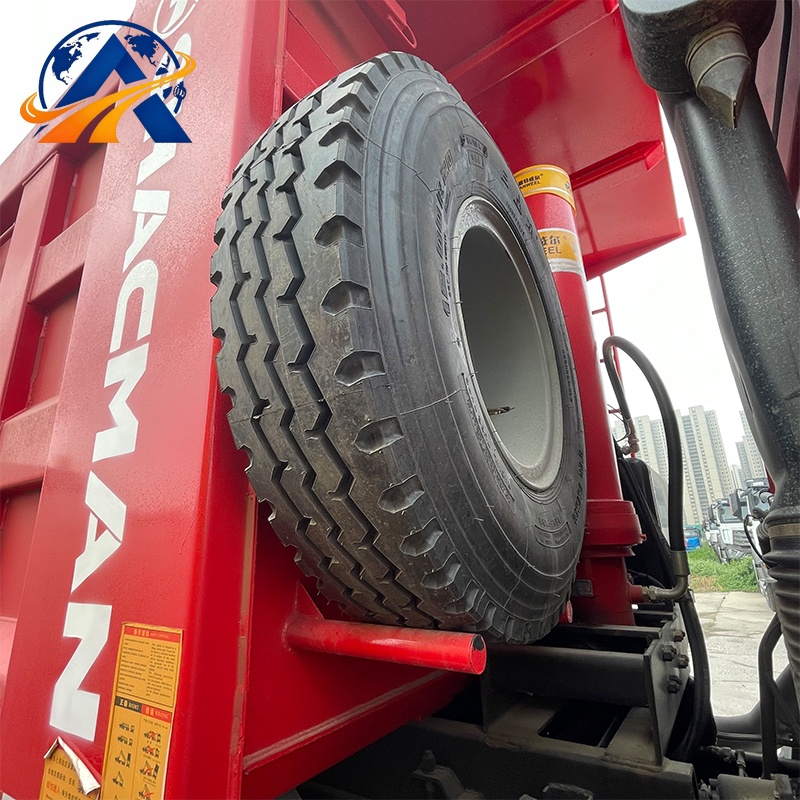

F3000 four-point hydraulic suspended flat-roof all-steel cab with 52° manual forward tilting structure. Standard constant temperature air conditioner, shock-absorbing fabric driver seat, single sleeper, mechanical pointer instrument and basic driving recorder. Full 24V DC electrical system with real-time alarm modules for engine coolant temperature, oil pressure, exhaust temperature and air pressure. Double-layer 8+8mm reinforced high-strength frame (300mm height), wheelbase 3775+1400mm, 9.5-ton MAN steer front axle, dual 16-ton Hand rear axles. Heavy-duty thickened progressive multi-leaf spring suspension (10 leafs front / 12 leafs rear), factory-fitted 12.00R20 16PR engineering steel radial tires (11 units including spare tire). Minimum turning radius 7600mm, maximum design speed 77km/h, gross vehicle weight 25 tons, rated load capacity 12.5 tons, top-selling model for gold mine, sand and stone projects in Congo and South Africa.

Service Capacities
Engine oil: 22L
Transmission gear oil: 13L
Rear axle gear oil: 12L per axle, total 24L for dual axles
Steering hydraulic oil: 12L
Lifting hydraulic oil: 18L
Coolant: 30L
Fuel tank capacity: 400L
Urea tank capacity: 40L (Euro V only, none for Euro II/Euro III)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)
Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Basic air suspension driver seat: +9kg weight, unchanged overall dimensions
Basic reversing monitor display screen: +5kg weight, unchanged overall dimensions
Electric heated wide rearview mirrors: +6kg weight, width +30mm, height unchanged
Heightened sun visor wind deflector: +27kg weight, overall height +140mm

Travel & Drivetrain Chassis Options
Reinforced heavy-duty balance suspension assembly: total weight +85kg, unchanged dimensions
Desert reinforced cooling oil-bath air filter kit: +15kg weight, unchanged dimensions
Mine thickened puncture-resistant pattern tires (replace standard tires): overall width +50mm, total weight +100kg
LNG gas cylinder assembly replace fuel tank: +270kg weight, width +50mm

Cargo Box & Lifting Auxiliary Options
Heightened mining cargo box side plate: +115kg weight, overall height +210mm
Cargo box upgraded to 10mm floor & 8mm side thickened wear-resistant manganese steel plate: +160kg weight, unchanged dimensions
High-flow heavy-duty Hyva lifting hydraulic cylinder assembly: +36kg weight, unchanged dimensions
Full set of thickened wear-resistant chassis guards: +52kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +4kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis & positioning module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED auxiliary work light group: +12kg weight, overall height +45mm
Reinforced thickened main frame assembly: +135kg weight, overall length +55mm
