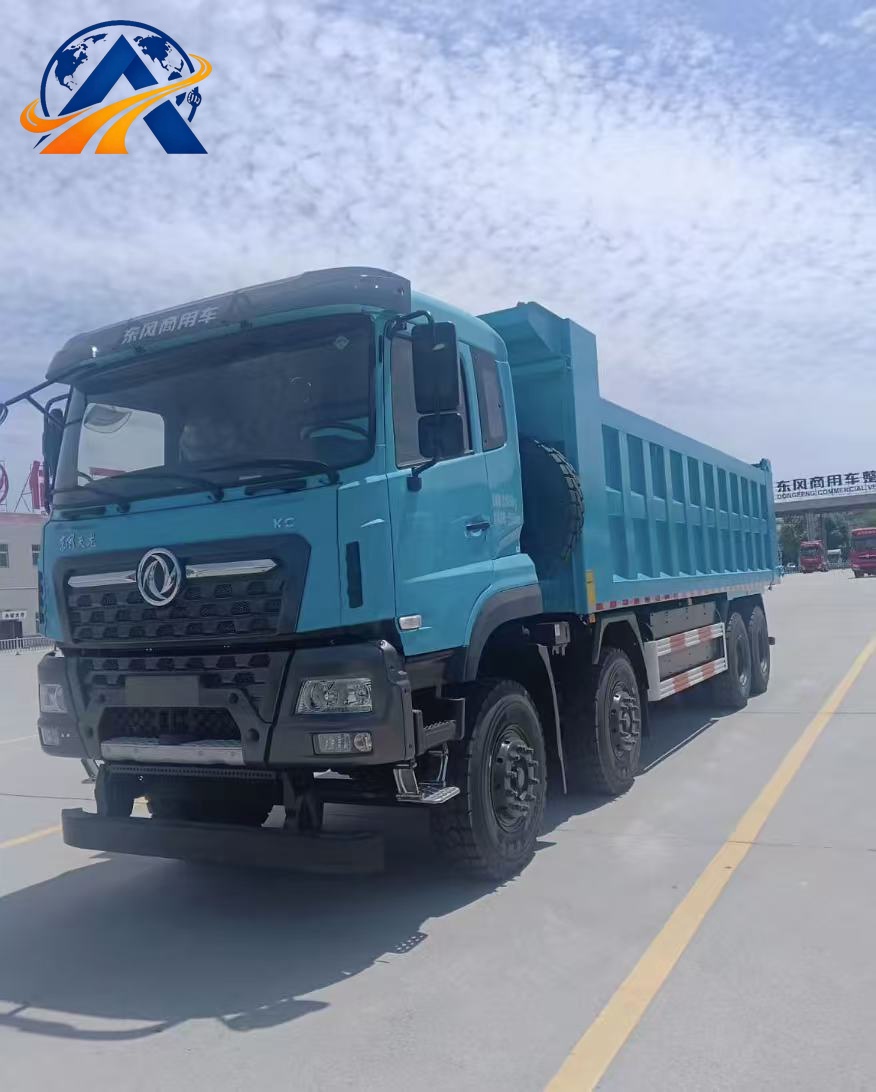

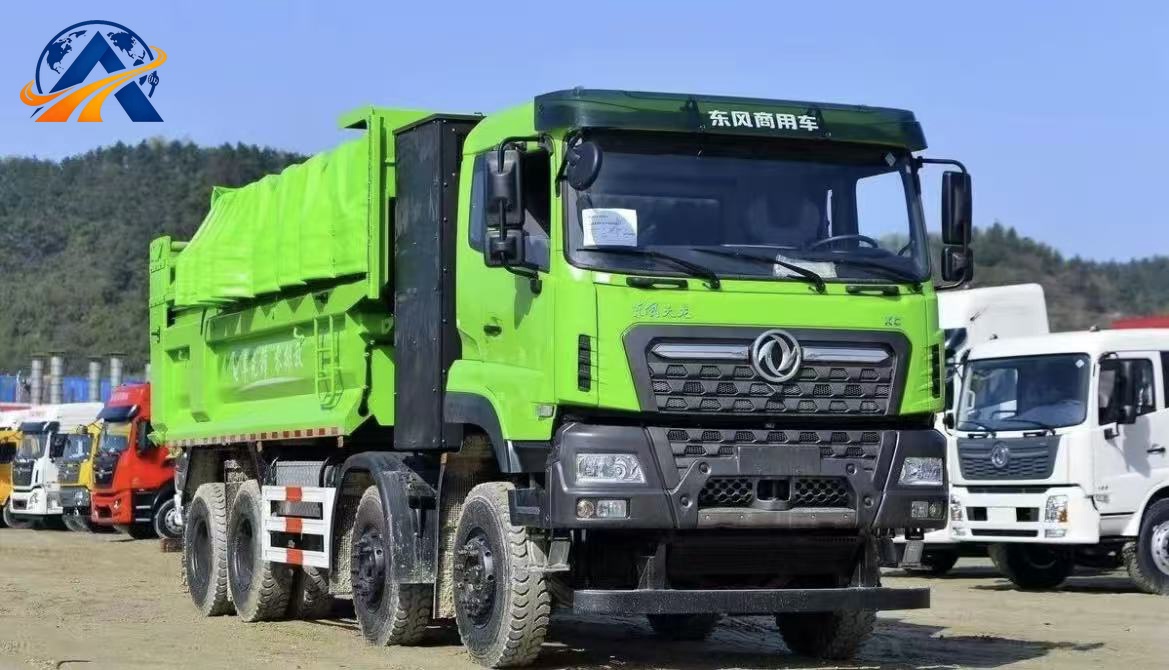

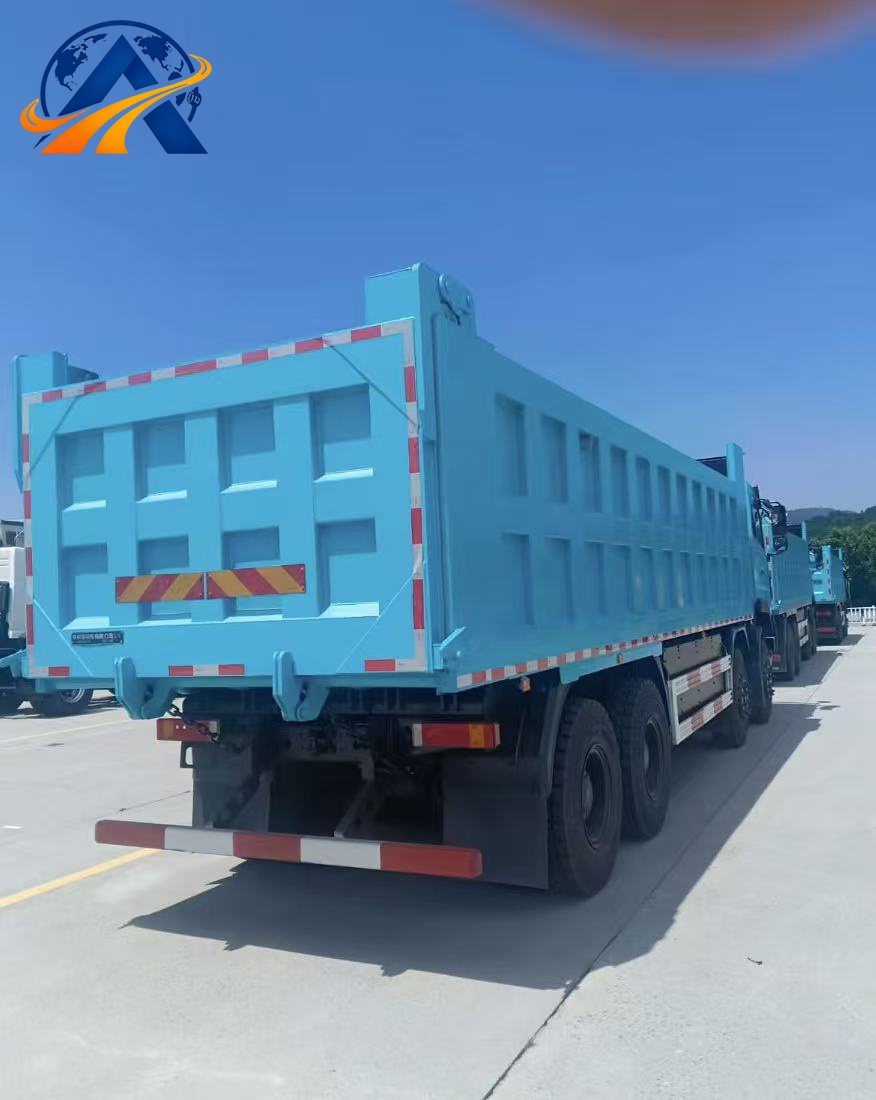

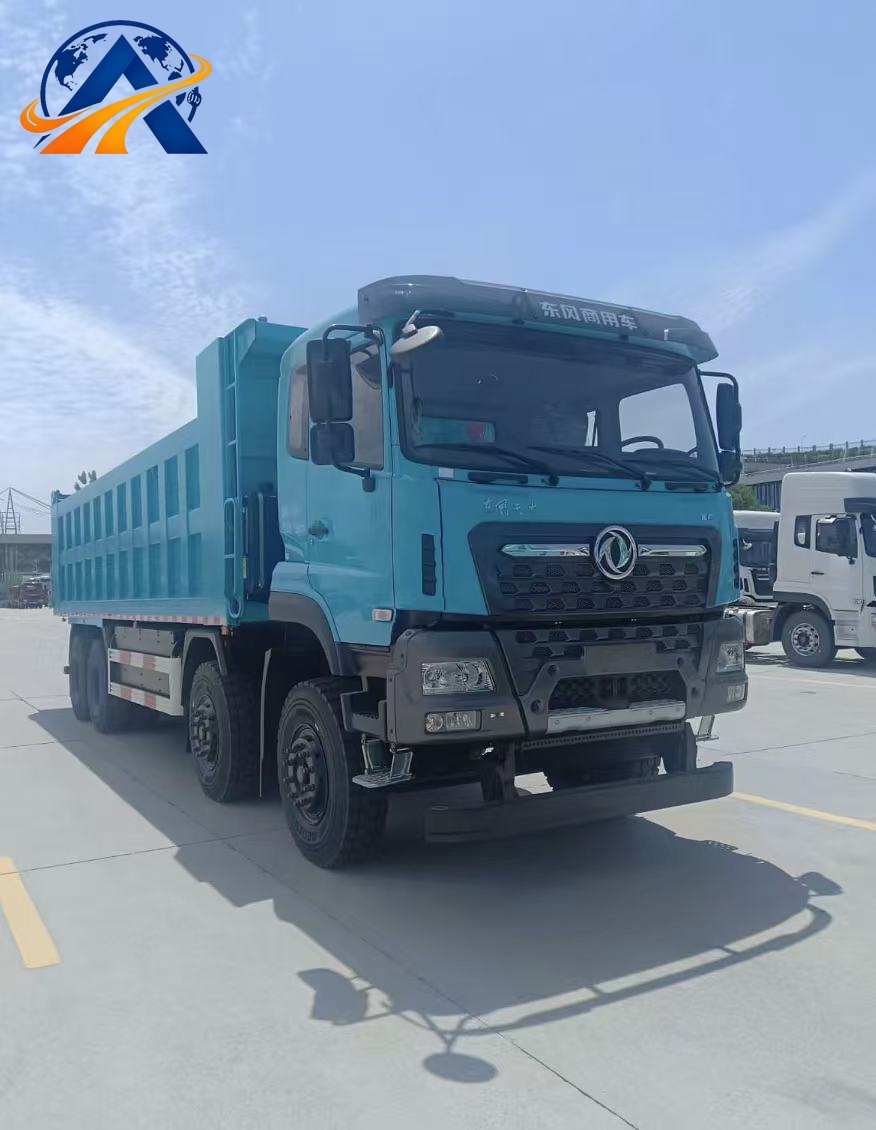

DONGFENG TIANLONG KC 8×4 Mining Dump Truck

Basic Machine Parameters
[Dimensions & Weight] Overall Length 10750mm × Width 2550mm × Height 3450mm, Curb Weight 15500kg (standard chassis + thickened mining cargo box, excluding all optional accessories)

I. Standard Configuration
Powertrain
Equipped with Dragon Engine DDi11 inline six-cylinder turbocharged intercooled diesel engine, displacement 11.12L, rated net power 316kW/430HP, peak torque 2100N·m, high-pressure common rail EFI + SCR aftertreatment, Euro V/Euro VI emission standards optional, suitable for heavy-duty earth and rock transportation in mines and construction sites. Matched with Fast 12JSDX240TB 12-speed heavy-duty manual transmission with high-power tipper dedicated PTO. Recirculating ball hydraulic power steering, full air drum brakes, standard WABCO four-circuit protection valve and ABS anti-lock braking system. Dana 16-ton wheel-side reduction tandem rear axles with final drive ratio 5.26 and standard inter-axle & wheel double differential lock; braking system complies with safety standards for heavy-duty mining commercial vehicles.

Hydraulic & Auxiliary System
KC four-point mechanical suspended high-roof short-double all-steel cab with 53° hydraulic forward tilting structure. Standard constant temperature air conditioner, shock-absorbing fabric driver seat, wide single sleeper, combined mechanical & LCD instrument and driving recorder. Full 24V DC electrical system with real-time alarm modules for engine coolant temperature, oil pressure, exhaust temperature, air pressure and transmission oil temperature. Triple-layer 8+8+4mm ultra-high-strength thickened frame (300mm height), wheelbase 1850+3400+1350mm, dual 7-ton steer front axles, dual 16-ton Dana wheel reduction rear axles. Heavy-duty thickened multi-leaf spring suspension for mining (8 leafs front / 10+12 leafs rear), factory-fitted 12.00R20 20PR deep tread steel radial mining tires (11 units including spare tire). Minimum turning radius 7800mm, maximum design speed 85km/h, gross vehicle weight 31 tons, rated load capacity 15370kg.
Service Capacities
Engine oil: 24L
Transmission gear oil: 14L
Rear axle gear oil: 14L per axle, total 28L for dual axles
Steering hydraulic oil: 12L
Lifting hydraulic oil: 22L
Coolant: 33L
Fuel tank capacity: 400L
Urea tank capacity: 45L (Euro V / Euro VI models)

II. Optional Configuration (Dimension & Weight Increment Specified for Each Item)
Cab Interior Options
Remote central door lock + power windows: +5kg weight, unchanged overall dimensions
Basic air suspension shock-absorbing driver seat: +9kg weight, unchanged overall dimensions
Central control touch screen + 360° panoramic 4-way monitoring camera: +7kg weight, unchanged overall dimensions
Electric heated wide rearview mirrors: +6kg weight, width +30mm, height unchanged
Steel anti-collision cab window guard: +24kg weight, width +45mm
Heightened widened sun visor wind deflector: +29kg weight, overall height +150mm

Travel & Drivetrain Chassis Options
DT14AMT 14-speed automatic transmission: +43kg weight, unchanged dimensions
Hydraulic retarder assembly: +69kg weight, unchanged dimensions
Reinforced heavy-duty balance suspension assembly for mine: total weight +90kg, unchanged dimensions
Low-temperature preheating cooling kit for -40℃ frigid regions: +17kg weight, unchanged dimensions
Widened puncture-resistant ultra-deep tread mining tires: overall width +60mm, total weight +112kg
Full chassis air suspension (replacement for leaf spring suspension): weight -255kg, unchanged dimensions

Cargo Box & Lifting Auxiliary Working Equipment Options
High-power hydraulic pump assembly for tipper PTO: +25kg weight, unchanged dimensions
Heightened & extended mining cargo box side plate assembly: overall length +380mm, +138kg weight
Complete hydraulic assembly for high-flow heavy-duty Hyva lifting cylinder: +42kg weight, unchanged dimensions
Side-mounted extended 600L fuel tank assembly: +67kg weight, width +40mm
Full set of thickened fully wrapped wear-resistant chassis guards: +54kg weight, unchanged dimensions

Safety & Special Site Options
ID chip anti-theft immobilizer system: +4kg weight, unchanged overall dimensions
Remote vehicle fault diagnosis & GPS positioning module: +6kg weight, unchanged overall dimensions
Full-vehicle high-brightness LED mine auxiliary work light group: +13kg weight, overall height +50mm
-40℃ ultra-low temperature diesel preheating start kit: +10kg weight, unchanged dimensions
Reinforced thickened triple-layer main frame assembly: +148kg weight, overall length +60mm
Full side skirts + front & rear steel anti-collision protective frame: +45mm width on each side (total width +90mm), +170kg weight
Complete sprinkler brake cooling system dedicated for mines: +40kg weight, overall height +80mm
